Connections
Inputs
Control/
Service
Outputs

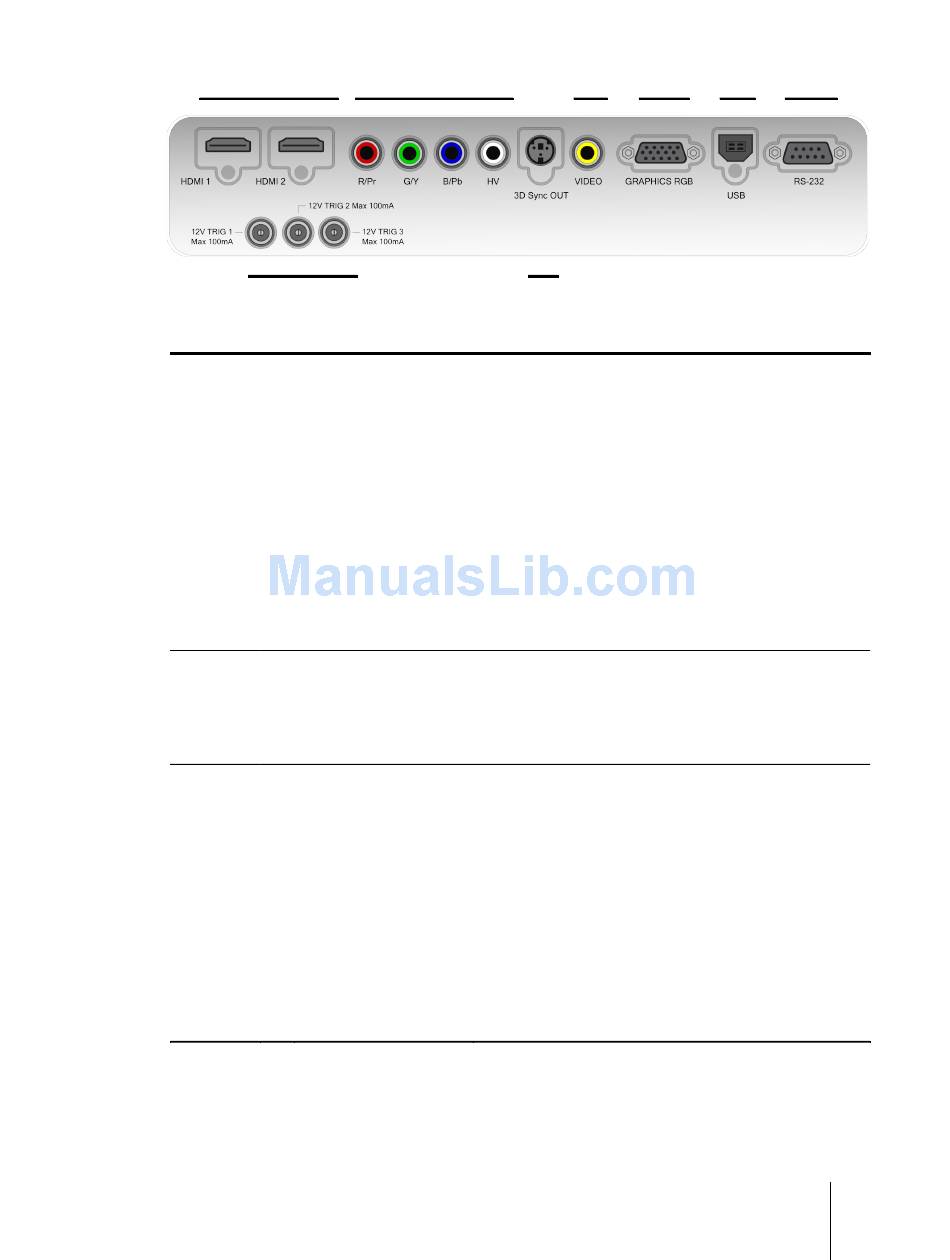

2 Overview
❶ ❷
❼
❶ HDMI 1
HDMI 2
❷ Components/RGB-HV Four RCA connectors. They accept both standard
❸ Video
❹ Graphics RGB
❺ USB
❻ RS-232
❼ TRIG 1
TRIG 2
TRIG 3
❽ 3D Sync OUT
❸ ❹
❽
Accept both HDMI and DVI digital video inputs.
and high-definition component (YPrPb) and
RGB-HV signals. Also used as RGB input for SCART
RGBS signals.
One RCA connector. Accepts composite video sig-
nals. Also used as composite sync input for SCART
RGBS signals.
One D-Sub 15-pin female connector. Accepts
component or RGB high-definition signals.
USB 1.1 (type B) port for serial commands and
firmware upgrade.
RS232 (female D-Sub 9-pin) port for serial
commands and firmware upgrade.
12 V 100 mA max output, for motorized screen
control. Activates when the projector is switched
on.
12 V 100 mA max output, for motorized screen
masking systems control. See
27
.
12 V 100 mA max output, for motorized ana-
morphic lens position control. See
Lens" on page 27 .
VESA DIN-3 connector for 3D IR Emitter cable.
