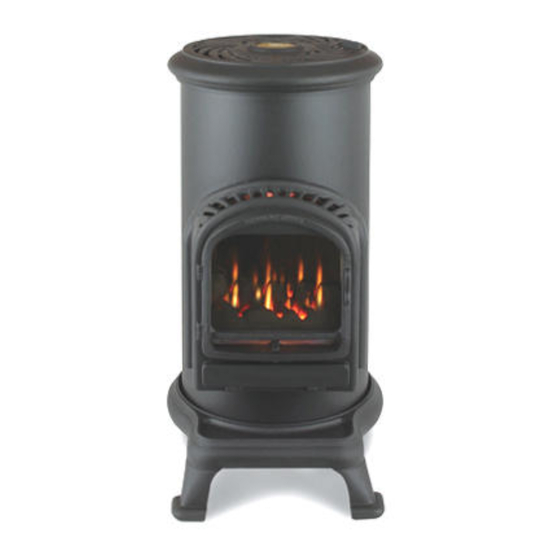

THE
'THURCROFT'
MOBILE GAS STOVE
MODEL NUMBER: THURCROFT
USE ONLY IN A WELL VENTILATED AREA
INSTALLATION, USER AND SERVICING
INSTRUCTIONS
THESE INSTRUCTIONS MUST REMAIN WITH THE USER
THIS APPLIANCE HAS BEEN FITTED WITH A SUITABLE REGULATOR AND HOSE. THE
REGULATOR WILL FIT A CYLINDER WITH A 21mm VALVE.
THIS APPLIANCE REQUIRES A 7 kg. CYLINDER OF BUTANE GAS.
This appliance must not be used in high rise apartments, basements, bathrooms
or bedrooms.
While you first light your stove you may detect a slight odour. This will disappear after a few
hours use.
THIS APPLIANCE MEETS THE REQUIREMENTS OF THE EUROPEAN
GAS DIRECTIVE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THURCROFT and is the answer not in the manual?

Questions and answers

Related Manuals for Broseley THURCROFT

Summary of Contents for Broseley THURCROFT

  • Page 1 'THURCROFT' MOBILE GAS STOVE MODEL NUMBER: THURCROFT USE ONLY IN A WELL VENTILATED AREA INSTALLATION, USER AND SERVICING INSTRUCTIONS THESE INSTRUCTIONS MUST REMAIN WITH THE USER THIS APPLIANCE HAS BEEN FITTED WITH A SUITABLE REGULATOR AND HOSE. THE REGULATOR WILL FIT A CYLINDER WITH A 21mm VALVE.

  • Page 2: Table Of Contents

    Contents Page No. List of components Appliance Data ENERAL EQUIREMENTS Ventilation Preparing the appliance for use SERS UIDE Lighting the stove Moving your stove Cleaning and storage & M ERVICING AINTENANCE Installation & Service Record Guarantee Important Note The Installation Instructions must be adhered to without exception.

  • Page 3: Appliance Data

    Before connecting the gas cylinder ensure that all the components listed below are included in the packaging; Mobile Gas Stove Ceramic Coal Matrix APPLIANCE DATA MODEL No. THURCROFT GAS TYPE Butane JET SIZE 0.75mm HEAT INPUT (Net) 2.42 kW gross...

  • Page 4: Ventilation

    Ventilation Use only in a well ventilated room. The room in which the heater is to be used must be provided with adequate ventilation at all times to ensure the proper removal of products of combustion and to reduce the possibility of condensation. The smallest sized room in which the appliance should be operated is 48m³...
  • Page 5 Fitting the Gas Cylinder Warning: Gas cylinders must not be fitted or changed in the presence of naked flames. Remove the plastic safety cap by rotating it until the arrow points out through the gap in the cylinder shroud, pull on the plastic strap and then lift off the safety cap.
  • Page 6 Please read the note at the end of the ‘Lighting the Stove’ section about lighting the stove for the first time after changing the gas cylinder.

  • Page 7: Users Guide

    USERS GUIDE Lighting the stove Reach through the aperture in the rear access door and turn on the gas by turning the switch on the regulator upwards. Depress the control knob and turn it fully clockwise. Keep the control knob fully depressed and rotate it fully anticlockwise.

  • Page 8: Moving Your Stove

    Moving your stove Warning: Do not attempt to move the stove while it is burning or even while it is still hot. Wait until the stove is cold before moving. It is easier to move with rear door and gas cylinder removed. If the stove is to be transported by motor vehicle the gas cylinder should be removed as should the Ceramic Coal Matrix which should be carefully packed to avoid breakage.
  • Page 9 To Remove the Burner/ Control Assembly (See Figures 1 – 6, p.8) Remove the rear access door and the cylinder. Remove the glass door panel and the ceramic coal matrix. Pull off the control knob. Unscrew the control lock nut (use 17mm box spanner).

  • Page 11: Installation & Service Record

    Installation & Service Record Please ensure that installer completes the installation record below INSTALLATION RECORD Appliance Supplied by: ……………………….…..……..Installation Date: ……………Serial No.: ………...……... Installed By: …………..…...CORGI No.: …..…………… Signed by Installer: ……………………………………..… RECORD OF 1 SERVICE RECORD OF 2 SERVICE Serviced by: …………...

  • Page 12: Guarantee

    GUARANTEE. The appliance is guaranteed for one year from the date of purchase. This guarantee is given subject to the following provisions:- That the fireplace conforms to the requirements given in the Installation Instructions for this appliance. b) That our instructions covering cleaning and handling are adhered to.
