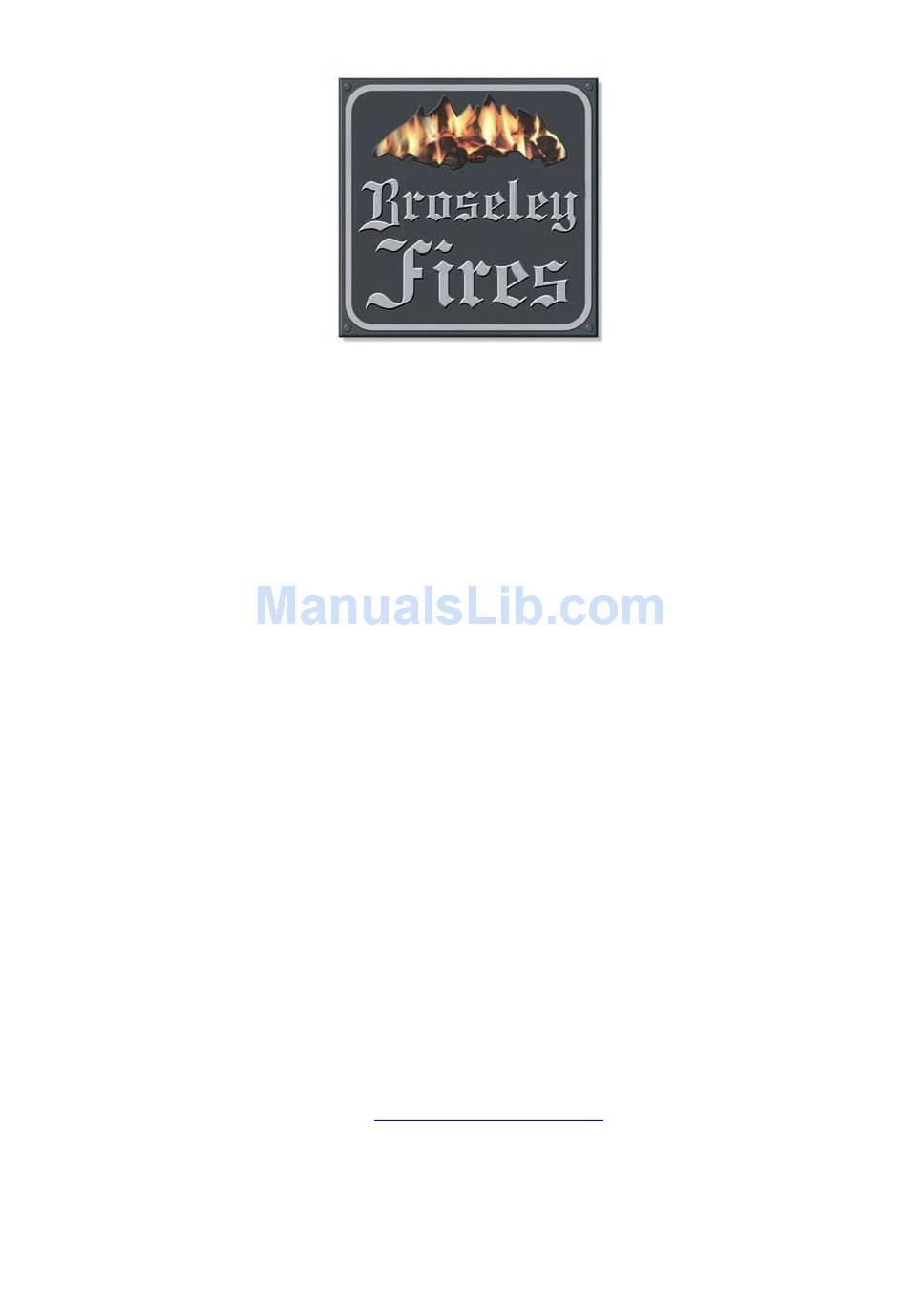

- Page 1 Installation and Operation Manual WINCHESTER Multi Fuel Stove BROSELEY FIRES LTD. TEL: 01743-461444 FAX: 01743-461446 KNIGHTS WAY, BATTLEFIELD INDUSTRIAL ESTATE, SHREWSBURY, SHROPSHIRE. SY1-3AB e-mail: www.broseleyfires.com Revision: GB07 Revision: GB07c c c c Revision: GB07 Revision: GB07...
-
Page 2: Thank You

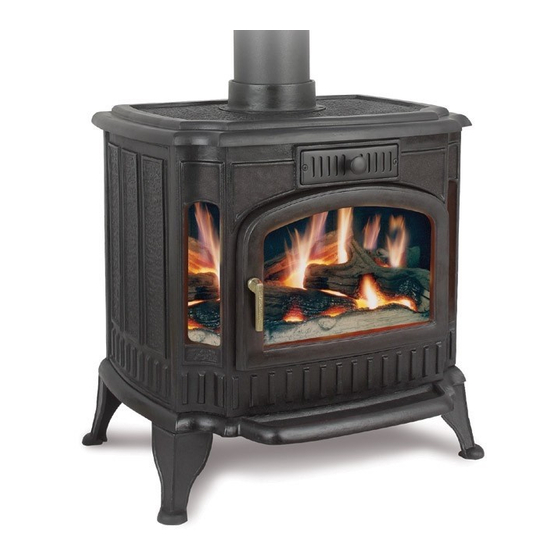

INSTALLATION AND OPERATION MANUAL Thank You May we take this opportunity to thank you for choosing a Winchester, cast iron Multi-fuel stove. Please take time to read this manual and follow the guidelines on how to install and operate your new stove, as we feel sure it will enable you to use it to its best advantage for many years. - Page 3 5. A properly built masonry or factory installed chimney, preferably with a height of 15 feet or more, should ensure a consistent draught (draw) under a variety of weather conditions. This stove requires a chimney (not the flue pipe) with a minimum diameter of 150mm (6”). If the chimney and cavity are larger, this may result in less than optimum performance to an extent where it may require a liner to improve the draw and performance of the stove.
-
Page 4: Recommended Fuels
Recommended Fuels The recommended fuels are Wood (dry, seasoned for a minimum of one year), House Coal, Anthracite, Smokeless fuels such as ‘home fire’ and various types of preformed briquettes. Ask your local fuel merchant for more details on these fuels. Under NO circumstances burn ‘petro coke’. -
Page 5: Air Controls
To clean the glass, either use an oven cleaning fluid or dip a wet cloth in the wood ash (not coal ash – this may scratch the glass) and gently rub clean. Only do this when the stove is cold. Air Controls Primary Air Primary air is controlled via the spinners located on the ash pan beneath the stove... -
Page 6: Annual Service Record
ANNUAL SERVICE RECORD INSTALLATION DATE OF APPLIANCE: 1ST YEAR SERVICE completion date: SERVICE ENGINEER: . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: CONTACT NUMBER 2ND YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 3RD YEAR SERVICE completion date: SERVICE ENGINEER: . -
Page 7: Limited Warranty
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance from. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
