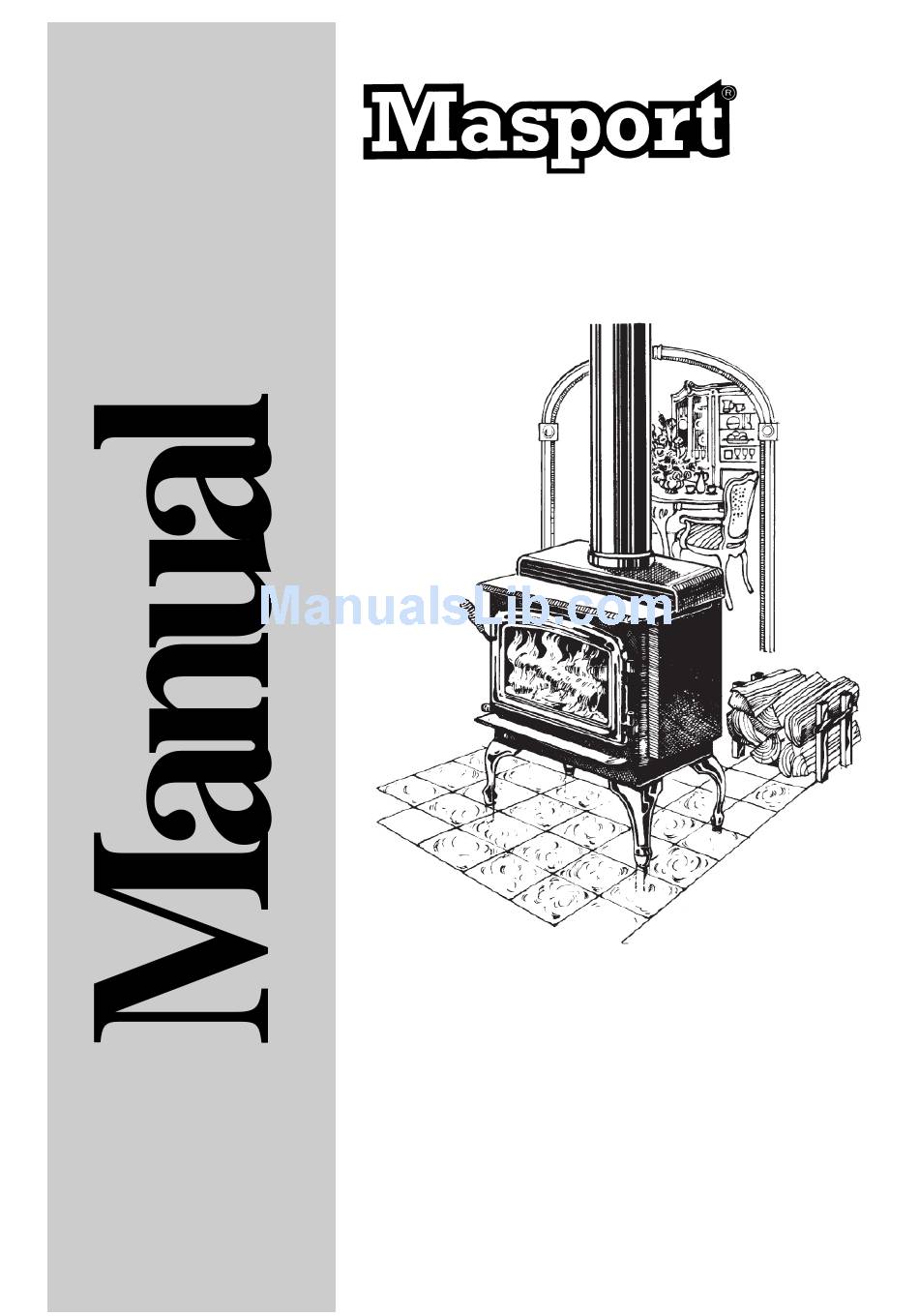

- Page 1 Owners & Vancouver /Montreal /St. Moritz Installation Model: F2101 Model: F3101 S2101 S3101 KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Australia Head Office - New Zealand P.O. Box 533 1-37 Mt Wellington Hwy.Panmure, Braeside, Victoria, 3195 P.O. Box 14349 Auckland 6.
- Page 2 The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the MASPORT DEALER in your area.
-
Page 3: Table Of Contents
TABLE OF CONTENTS THE MASPORT FREESTANDING STOVE SAFETY LABEL OPERATING INSTRUCTIONS Medium Freestanding Stove F2101M ........ 4 Draft Control ..............16 Large Freestanding Stove F3101L ........5 First Fire16 Medium Step Stove S2101M ..........6 Fan Operation ..............16 Large Step Stove S3101L ..........7 Ash Disposal .............. -
Page 4: Safety Label
We have printed a copy of the contents here for your review. This is a copy of the label that accompanies NOTE: Masport units are constantly being im- DO NOT REMOVE THIS LABEL LISTED SPACE HEATER, SOLID FUEL TYPE,... -
Page 5: Large Freestanding Stove F3101L
We have printed a copy of the contents here for your review. NOTE: Masport units are constantly being im- DO NOT REMOVE THIS LABEL LISTED SPACE HEATER, SOLID FUEL TYPE, SUITABLE FOR... -
Page 6: Medium Step Stove S2101M
CERTIFIED TO COMPLY WITH JULY 1990, PROTECTION AGENCY PARTICULATE EMISSION STANDARDS. CAUTION HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY . CONTACT MAY CAUSE SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS. 908-733 rev. 02/00 Masport Freestanding Woodstove... -
Page 7: Large Step Stove S3101L
(S3101). It is located in the upper right there is a difference, the label on the unit is the corner of the back of the stove. We have correct one. printed a copy of the contents here for your review. Masport Freestanding Woodstove... -
Page 8: Installation
2) Select a position for your Masport Stove. Consult the minimum clearance chart for 13) Your Masport Woodstove is not to be con- 7) The floor protector must be of non-com- your model and set the stove in place. For nected to any air distribution duct. -
Page 9: Minimum Clearance To Combustibles
Airmate 405mm 215mm 190mm 725mm 395mm 510mm Medium S2101M Step Stove 405mm 215mm 190mm 725mm 395mm 510mm Large F3101L with Airmate 460mm 240mm 255mm 810mm 405mm 595mm Large S3101L Step Stove 460mm 240mm 255mm 810mm 405mm 595mm Masport Freestanding Woodstove... -
Page 10: Minimum Alcove Clearances
INSTALLATION Minimum Alcove Clearance to Combustible Materials The Masport Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. Note: Minimum alcove ceiling height - 2134mm Maximum depth of alcove - 914mm... -
Page 11: Stove Assembly Prior To Installation
3 feet (75mm) above the roof penetration, or 2 feet (50mm) above any point within 10 feet (250mm) measured horizontally. There must be at least 3 feet (75mm) of chimney above the roof level. Diagram 3 Masport Freestanding Woodstove... -
Page 12: Recommended Height For Woodstove Flue
Example: a) 1.5m of horizontal run = 3.0m For Mobile Home units installed in the U.S. the one "T" = 0.915m Total Addition (at sea level) = 3.9m Standard Ceiling Installation Masport Freestanding Woodstove... -
Page 13: Listed Components For Mobile Home Installation
1) Slide the left baffle brick over the front two 6DP-MH9096 Mobile Home Kit air tubes and then slide it back over the rear INSTALLATION ICC EXCEL 2100 The Masport Small, Medium and Large Free- Qty. Part # Description 6CL48 48" Chimney length... -
Page 14: Medium Stove F2101M/S2101M
(page 13), though there are only three air tubes in the medium units. 2) Slide the left baffle brick over the air tubes from the front and then push it to the back. Masport Freestanding Woodstove... -
Page 15: Glass Installation
INSTALLATION GLASS INSTALLATION Your Masport stove is supplied with 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement from an authorized Masport dealer only. -
Page 16: Operating Instructions
If you also have left open for too long. a fireplace in your home, a downdraft may be created by your Masport Stove causing 3) With the draft still in the fully open position a draft down your chimney. If this occurs, add two or three seasoned logs to your fire. -
Page 17: Safety Guidelines
7) Your Masport stove can be very hot. You chimney flue of a slow burning fire. As a result, tighter seal. Remove and replace the nuts,... -
Page 18: Glass Maintenance
Allow the stove to cool down before cleaning as this may cause breakage. Your Masport stove is supplied with 5 mm the glass, do not clean the glass when it is hot. Do not use abrasive cleaners. -
Page 19: Replacement / Spare Parts
063-954 Air Tube - 1" F3101 (qty 1) 936-243 560087 7/8" Glass Gasket 033-953 Air Tube - 3/4" F2101 (qty 3) 846-920 560202 Glass Retainer Clips (8/set) 063-953 Air Tube - 1" F3101 (qty 3) Screw - 1/4 - 20 x 3/8"... - Page 20 Side Panel - Left - S2101 063-955 Baffle (set) S3101 150-006 Side Panel - Right - S3101 150-005 Side Panel - Left - S3101 *Not available as a replacement part. 846-973 Door Handle Assembly 846-570 560203 7/8" Door Gasket Repair Kit Masport Freestanding Woodstove...
- Page 21 802-147 Brick - 114mm x 89mm 802-152 Brick - 51mm x 229mm 802-145 Brick - 83mm x 229mm 802-149 Brick - 114mm x 83mm 802-153 Brick - 114mm x 57 mm 802-154 Brick - 165mm x 57mm Masport Freestanding Woodstove...
- Page 22 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ ____________________________________________________________ __________________________________________________________ ____________________________________________________________ _______________________________________________________ _____________________________________________________ __________________________________________________________ _________________________________________________________ _________________________________________________________ ______________________________________________________ ______________________________________________________ _______________________________________________________________ ___________________________________________________________ __________________________________________________________ ____________________________________________________________ ____________________________________________________________ ____________________________________________________________ _____________________________________________________________ __________________________________________________________ __________________________________________________________ _____________________________________________________ ________________________________________________________ _________________________________________________________ _________________________________________________________ Masport Freestanding Woodstove...
-
Page 23: Warranty
The decision to repair or replace will be made by Masport or its agent and ac- tear, misuse, neglect, accidental damage tioned by an approved Masport Specialist Heat-...
