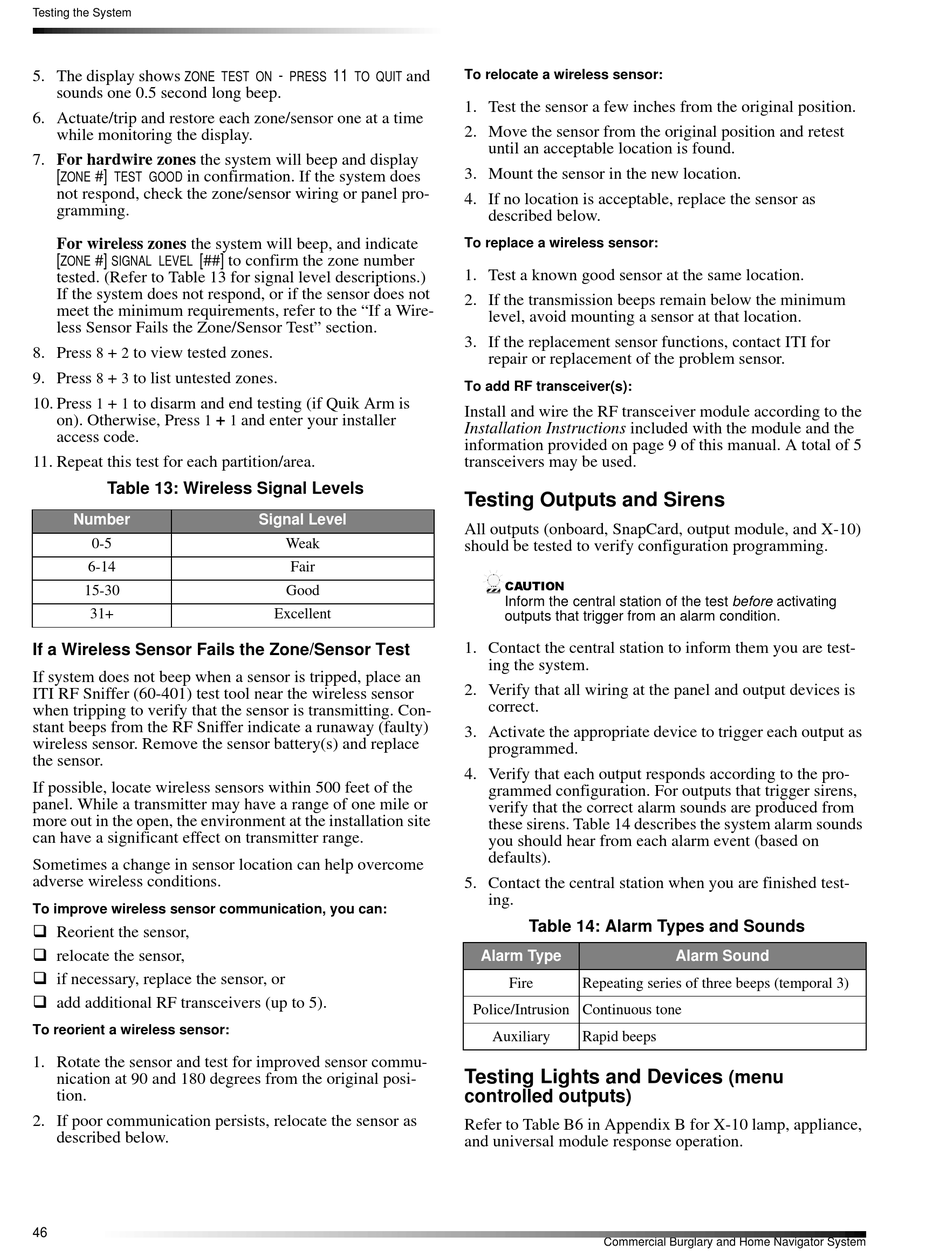

Testing the System
5. The display shows
ZONE TEST ON
sounds one 0.5 second long beep.
6. Actuate/trip and restore each zone/sensor one at a time
while monitoring the display.
7. For hardwire zones the system will beep and display
[
# ]
in confirmation. If the system does
ZONE
TEST GOOD
not respond, check the zone/sensor wiring or panel pro-
gramming.
For wireless zones the system will beep, and indicate
[
# ]
[ ## ] to confirm the zone number
ZONE
SIGNAL LEVEL
tested. (Refer to Table 13 for signal level descriptions.)
If the system does not respond, or if the sensor does not
meet the minimum requirements, refer to the "If a Wire-
less Sensor Fails the Zone/Sensor Test" section.
8. Press
+
to view tested zones.
8
2
9. Press
+
to list untested zones.
8
3
10. Press
+
to disarm and end testing (if Quik Arm is
1
1
on). Otherwise, Press
1
access code.
11. Repeat this test for each partition/area.
Table 13: Wireless Signal Levels
Number
0-5
6-14
15-30
31+

If a Wireless Sensor Fails the Zone/Sensor Test

If system does not beep when a sensor is tripped, place an
ITI RF Sniffer (60-401) test tool near the wireless sensor
when tripping to verify that the sensor is transmitting. Con-
stant beeps from the RF Sniffer indicate a runaway (faulty)
wireless sensor. Remove the sensor battery(s) and replace
the sensor.
If possible, locate wireless sensors within 500 feet of the
panel. While a transmitter may have a range of one mile or
more out in the open, the environment at the installation site
can have a significant effect on transmitter range.
Sometimes a change in sensor location can help overcome
adverse wireless conditions.
To improve wireless sensor communication, you can:
q Reorient the sensor,
q relocate the sensor,
q if necessary, replace the sensor, or
q add additional RF transceivers (up to 5).
To reorient a wireless sensor:
1. Rotate the sensor and test for improved sensor commu-
nication at 90 and 180 degrees from the original posi-
tion.
2. If poor communication persists, relocate the sensor as
described below.
46
-
11
PRESS
TO QUIT
+
and enter your installer
1
Signal Level
Weak
Fair
Good
Excellent
and
To relocate a wireless sensor:
1. Test the sensor a few inches from the original position.
2. Move the sensor from the original position and retest
until an acceptable location is found.
3. Mount the sensor in the new location.
4. If no location is acceptable, replace the sensor as
described below.
To replace a wireless sensor:
1. Test a known good sensor at the same location.
2. If the transmission beeps remain below the minimum
level, avoid mounting a sensor at that location.
3. If the replacement sensor functions, contact ITI for
repair or replacement of the problem sensor.
To add RF transceiver(s):
Install and wire the RF transceiver module according to the
Installation Instructions included with the module and the
information provided on page 9 of this manual. A total of 5
transceivers may be used.

Testing Outputs and Sirens

All outputs (onboard, SnapCard, output module, and X-10)
should be tested to verify configuration programming.
&$87,21
Inform the central station of the test before activating
outputs that trigger from an alarm condition.
1. Contact the central station to inform them you are test-
ing the system.
2. Verify that all wiring at the panel and output devices is
correct.
3. Activate the appropriate device to trigger each output as
programmed.
4. Verify that each output responds according to the pro-
grammed configuration. For outputs that trigger sirens,
verify that the correct alarm sounds are produced from
these sirens. Table 14 describes the system alarm sounds
you should hear from each alarm event (based on
defaults).
5. Contact the central station when you are finished test-
ing.
Table 14: Alarm Types and Sounds
Alarm Type
Fire
Repeating series of three beeps (temporal 3)
Police/Intrusion Continuous tone
Auxiliary
Rapid beeps

Testing Lights and Devices

controlled outputs)
Refer to Table B6 in Appendix B for X-10 lamp, appliance,
and universal module response operation.
Alarm Sound
(menu
