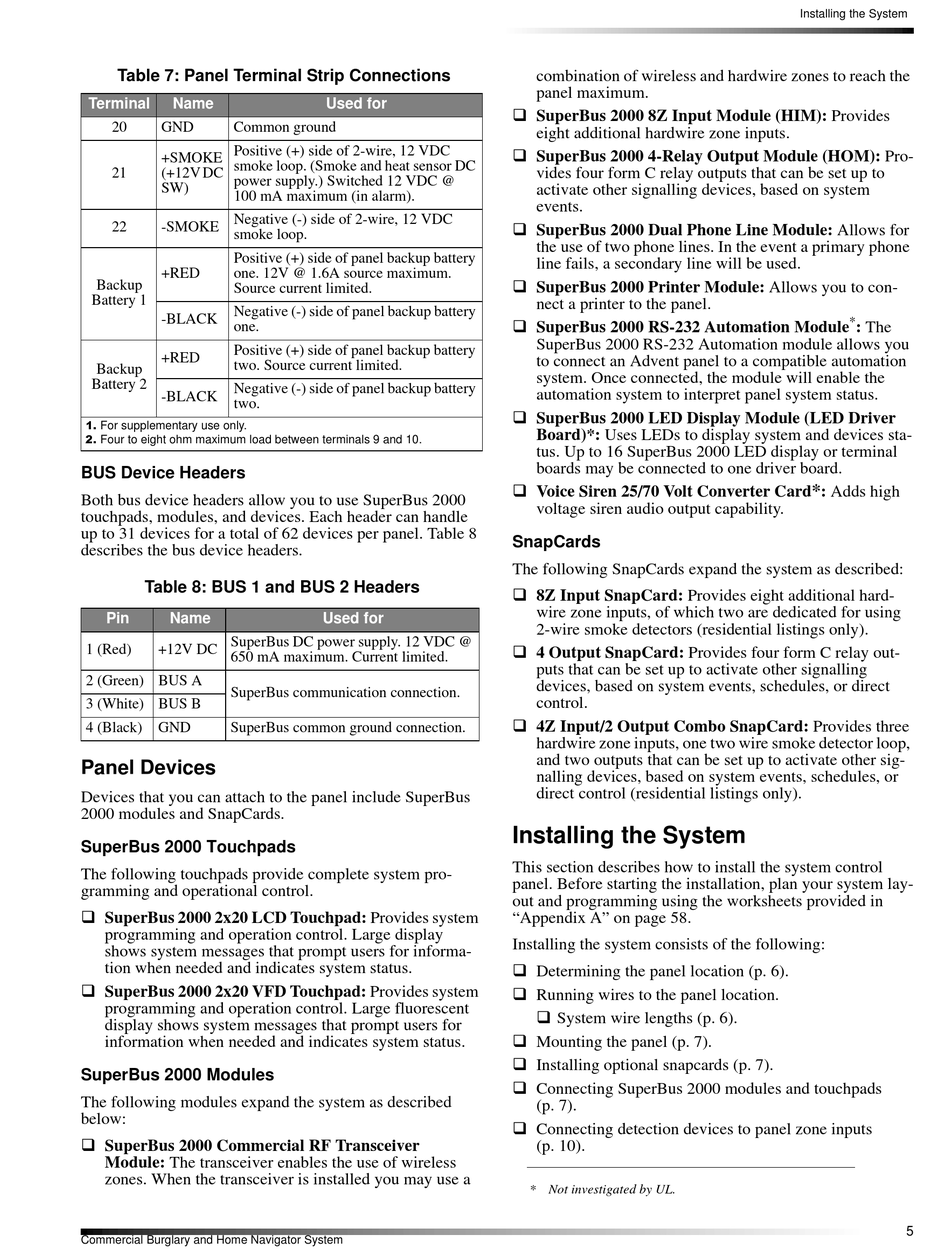

Table 7: Panel Terminal Strip Connections
Terminal
Name
20
GND
Common ground
Positive (+) side of 2-wire, 12 VDC
+SMOKE
smoke loop. (Smoke and heat sensor DC
21
(+12V DC
power supply.) Switched 12 VDC @
SW)
100 mA maximum (in alarm).
-SMOKE Negative (-) side of 2-wire, 12 VDC
22
smoke loop.
Positive (+) side of panel backup battery
+RED
one. 12V @ 1.6A source maximum.
Backup
Source current limited.
Battery 1
Negative (-) side of panel backup battery
-BLACK
one.
Positive (+) side of panel backup battery
+RED
two. Source current limited.
Backup
Battery 2
Negative (-) side of panel backup battery
-BLACK
two.
For supplementary use only.
Ê
Four to eight ohm maximum load between terminals 9 and 10.
Ê
BUS Device Headers
Both bus device headers allow you to use SuperBus 2000
touchpads, modules, and devices. Each header can handle
up to 31 devices for a total of 62 devices per panel. Table 8
describes the bus device headers.
Table 8: BUS 1 and BUS 2 Headers
Pin
Name
+12V DC SuperBus DC power supply. 12 VDC @
1 (Red)
650 mA maximum. Current limited.
2 (Green) BUS A
SuperBus communication connection.
3 (White) BUS B
4 (Black)
GND
SuperBus common ground connection.
Panel Devices
Devices that you can attach to the panel include SuperBus
2000 modules and SnapCards.
SuperBus 2000 Touchpads
The following touchpads provide complete system pro-
gramming and operational control.
q SuperBus 2000 2x20 LCD Touchpad: Provides system
programming and operation control. Large display
shows system messages that prompt users for informa-
tion when needed and indicates system status.
q SuperBus 2000 2x20 VFD Touchpad: Provides system
programming and operation control. Large fluorescent
display shows system messages that prompt users for
information when needed and indicates system status.
SuperBus 2000 Modules
The following modules expand the system as described
below:
q SuperBus 2000 Commercial RF Transceiver
Module: The transceiver enables the use of wireless
zones. When the transceiver is installed you may use a
Commercial Burglary and Home Navigator System
Used for
Used for
combination of wireless and hardwire zones to reach the
panel maximum.
q SuperBus 2000 8Z Input Module (HIM): Provides
eight additional hardwire zone inputs.
q SuperBus 2000 4-Relay Output Module (HOM): Pro-
vides four form C relay outputs that can be set up to
activate other signalling devices, based on system
events.
q SuperBus 2000 Dual Phone Line Module: Allows for
the use of two phone lines. In the event a primary phone
line fails, a secondary line will be used.
q SuperBus 2000 Printer Module: Allows you to con-
nect a printer to the panel.
q SuperBus 2000 RS-232 Automation Module
SuperBus 2000 RS-232 Automation module allows you
to connect an Advent panel to a compatible automation
system. Once connected, the module will enable the
automation system to interpret panel system status.
q SuperBus 2000 LED Display Module (LED Driver
Board)*: Uses LEDs to display system and devices sta-
tus. Up to 16 SuperBus 2000 LED display or terminal
boards may be connected to one driver board.
q Voice Siren 25/70 Volt Converter Card
voltage siren audio output capability.
SnapCards
The following SnapCards expand the system as described:
q 8Z Input SnapCard: Provides eight additional hard-
wire zone inputs, of which two are dedicated for using
2-wire smoke detectors (residential listings only).
q 4 Output SnapCard: Provides four form C relay out-
puts that can be set up to activate other signalling
devices, based on system events, schedules, or direct
control.
q 4Z Input/2 Output Combo SnapCard: Provides three
hardwire zone inputs, one two wire smoke detector loop,
and two outputs that can be set up to activate other sig-
nalling devices, based on system events, schedules, or
direct control (residential listings only).
Installing the System
This section describes how to install the system control
panel. Before starting the installation, plan your system lay-
out and programming using the worksheets provided in
"Appendix A" on page 58.
Installing the system consists of the following:
q Determining the panel location (p. 6).
q Running wires to the panel location.
q System wire lengths (p. 6).
q Mounting the panel (p. 7).
q Installing optional snapcards (p. 7).
q Connecting SuperBus 2000 modules and touchpads
(p. 7).
q Connecting detection devices to panel zone inputs
(p. 10).
* Not investigated by UL.
Installing the System
*
: The
*
: Adds high
