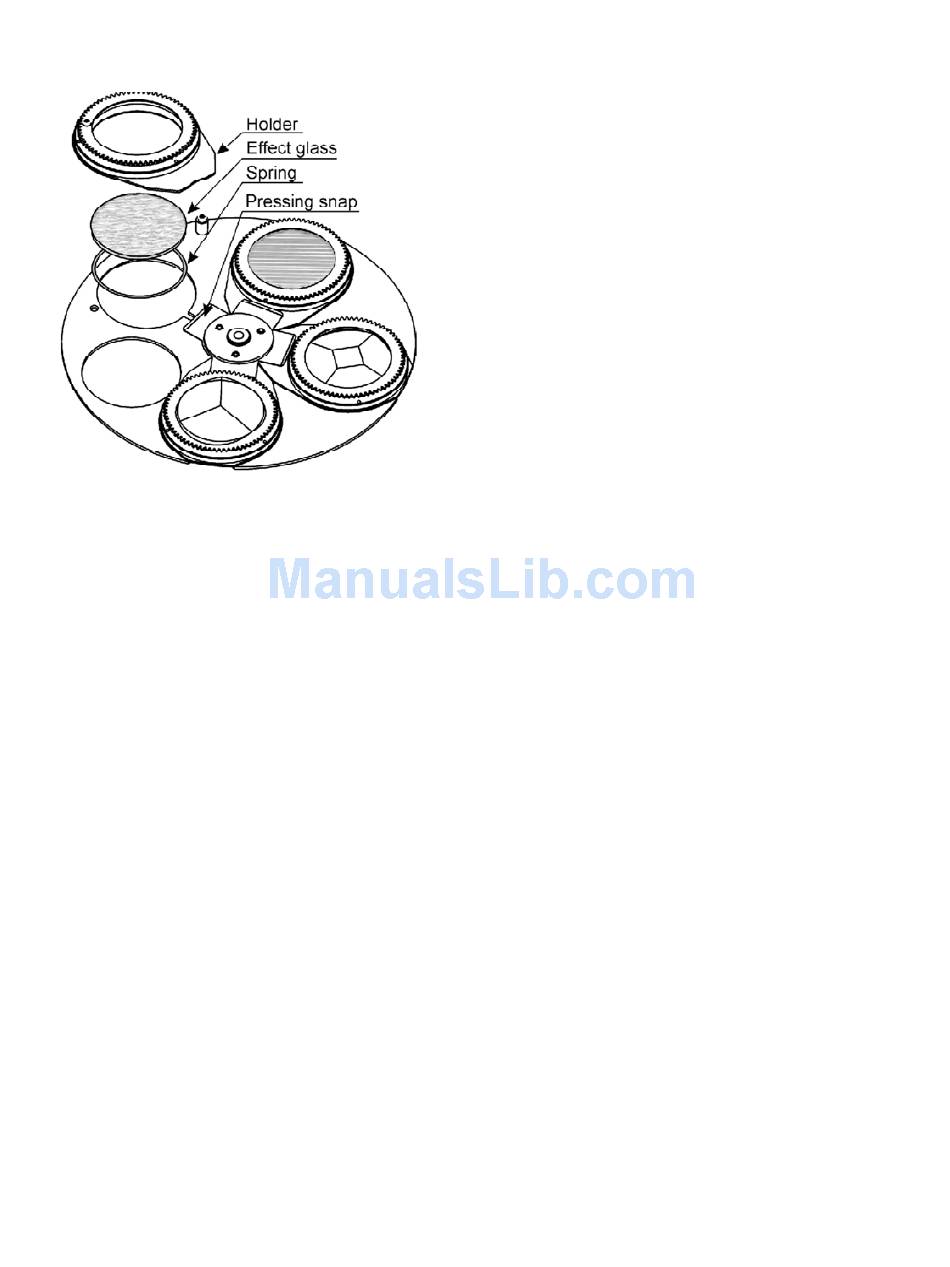

Replacing a Gobo from the Effect wheel
1. Disconnect mains power supply and set the switch to OFF.
2. Make sure that the gobo you want to insert has the same size.
3. Gently bend out the effect glass holder to release it from the fixative holes and eject it from the pressing
snap.
4.
Press the ends of the spring glass-lock together with a pair of pliers and remove it.
5.
Remove the effect glass and insert the new glass.
the
spring gobo-lock
bit together.
6. Click the
effect glass holder
Troubleshooting
No Light, No Movement - All Products
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas: the power supply, the lamp, the fuse.
1. Power supply. Check that the unit is plugged into an appropriate power supply.
2. The lamp. Replace the old lamp with a new one with the same specifications. See page 8 for replacing
lamps.
3. The fuse. Replace the fuse. See page 20 for replacing the fuse.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
1. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try
your DMX control again.
2. Determine whether the controller or light effect is at fault. Does the controller operate properly with other
DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light effect to a
qualified technician.
See next page for more problem solving.
Fig. 8
a little bit together. Possibly use a pair of pliers to press the
back into the gobowheel. Make sure that it slots into all 3 guiding slots.
Carefully put the
spring gobo-lock
22
back, gently press
spring gobo-lock
a little
