Replacing a Gobo from the Rotating Gobowheel

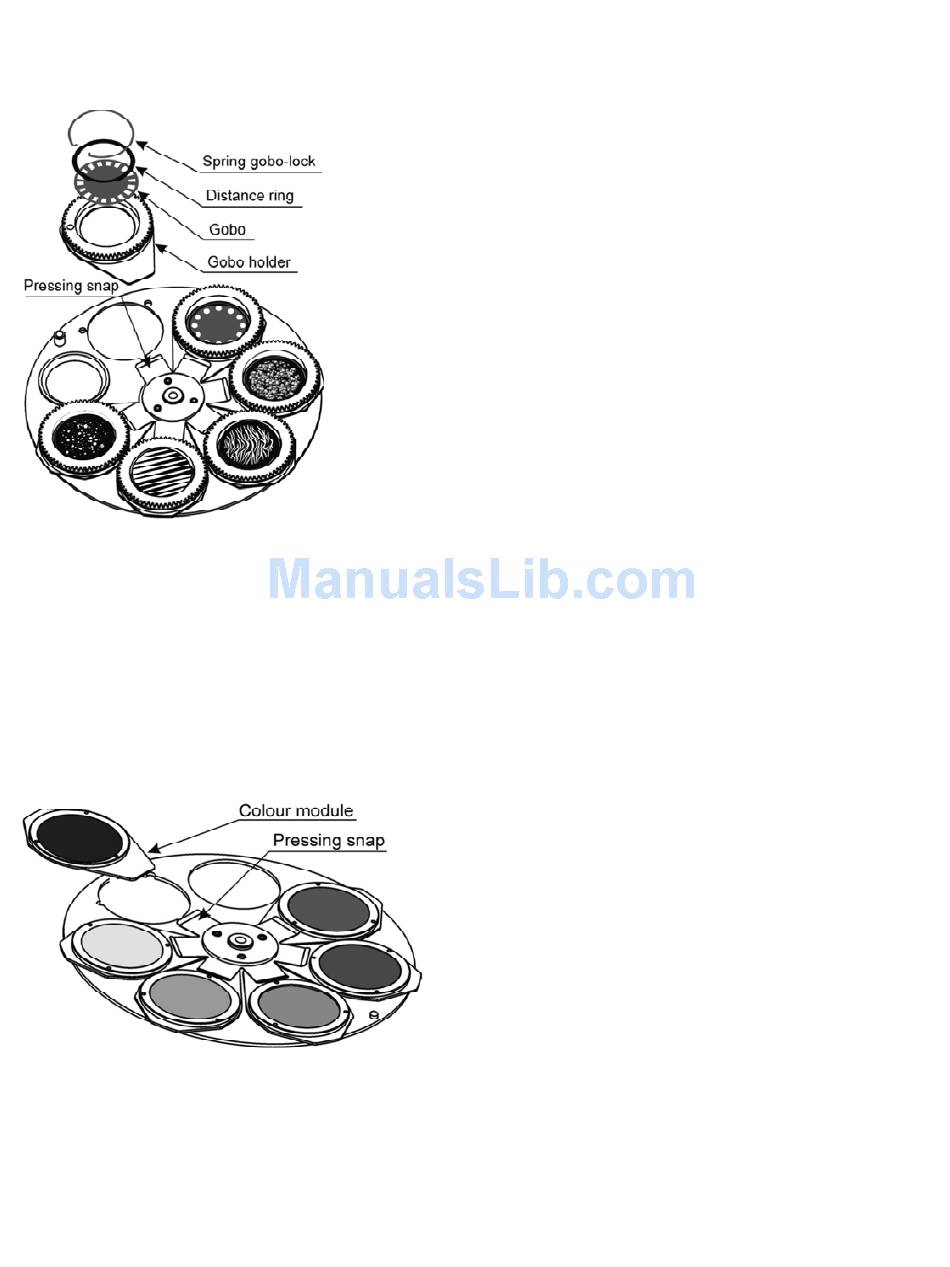

Gobo-wheel with rotating gobo's
1. Disconnect mains power supply and set the switch to OFF.
2. Make sure that the gobo you want to insert has the same size.
3. Gently bend out the gobo holder to release it from the fixative holes and eject it from the pressing snap.
4. Press the ends of the spring gobo-lock together with a pair of pliers and remove it.
5. Remove the distance ring and gobo and insert the new gobo (glazy side towards the lamp) with distance
ring. Carefully put the
Possibly use a pair of pliers to press the
6. Click the gobo holder back into the gobowheel. Make sure that it slots into all 3 guiding slots.

Replacing a Gobo from the Colorwheel

1. Disconnect mains power supply and set the switch to OFF.
2. Gently bend out the color filter to release it from the fixative holes and eject it from the pressing snap.
3. Put the new color filter back under the pressing snap.
Fig. 6
spring gobo-lock back, gently press the
spring gobo-lock
Fig. 7
spring gobo-lock
a little bit together.
Make sure that it slots into all 3 guiding slots.
21
a little bit together.
