- Page 1 USER MANUAL ENGLISH Phantom 1220 Zoombar Product code: 40090 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Phantom 1220 Zoombar Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Phantom 1220 Zoombar Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Phantom 1220 Zoombar 129 Channels ...............................33 Troubleshooting ..............................37 Maintenance ..............................38 Safety Instructions for Maintenance ......................38 Preventive Maintenance ..........................38 Basic Cleaning Instructions ........................39 Corrective Maintenance ..........................39 Replacing the Fuse .............................39 Deinstallation, Transportation and Storage ....................40 Instructions for Deinstallation ..........................40 Instructions for Transportation ........................40...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Phantom 1220 Zoombar ● 2 x quick-lock bracket ● Schuko to Neutrik powerCON cable (1,3 m) ●... -
Page 6: Symbols And Signal Words
Phantom 1220 Zoombar ● Notes: Note: (in bold lettering) is followed by useful information or tips Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. -
Page 7: Safety
Phantom 1220 Zoombar Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Phantom 1220 Zoombar WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling.
-
Page 9: Requirements For The User
Phantom 1220 Zoombar ● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation. -
Page 10: Description Of The Device

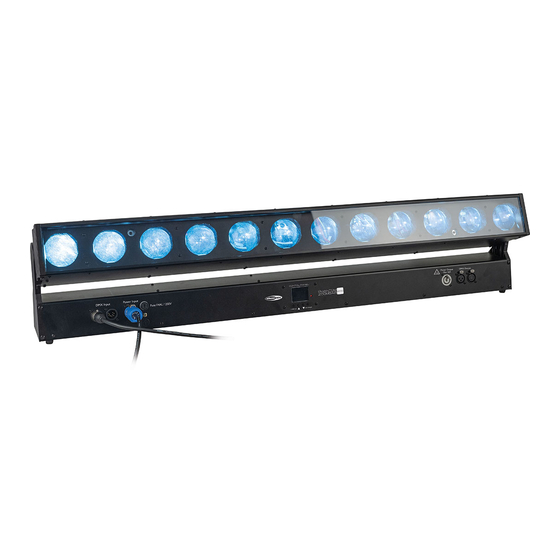

Description of the Device The Showtec Phantom 1220 Zoombar is a LED bar with 12 x 20 W RGBW LEDs, great optics and is fully pixel controllable. The zoom range between 5° and 50° makes it possible to create a narrow multi-colored light curtain or create a nice wash effect. -
Page 11: Product Specifications
Phantom 1220 Zoombar Product Specifications Model: Phantom 1220 Zoombar Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 240 W Fuse: F4AL/250V Physical: Dimensions: 997 x 95 x 233 mm (LxWxH) Weight: 13,2 kg Optics: Light source: 12 x 20 W RGBW LEDs... -
Page 12: Dimensions
Phantom 1220 Zoombar Dimensions Fig. 04 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 13: Rigging
Phantom 1220 Zoombar Rigging The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. The device is delivered with 2 quick-lock brackets. -
Page 14: Connecting To Power Supply
Phantom 1220 Zoombar Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 15: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Phantom 1220 Zoombar is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually or in auto mode. -
Page 16: Dmx Cables
Fig. 07. Fig. 07 Master/Slave Setup The Phantom 1220 Zoombar supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below: Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a 3-pin/5-pin DMX cable. -
Page 17: Dmx Linking
DMX Addressing In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Phantom 1220 Zoombar has 5 personalities: 19 channels, 24 channels, 72 channels, 84 channels and 129 channels. If you want to connect multiple devices on one data link and use them in 129-channel mode, for... -
Page 18: Operation
Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. Control Modes The Phantom 1220 Zoombar supports the following control modes: ● Stand-alone: Auto operation mode (built-in chases), manual operation ●... -
Page 19: Control Panel
Start-up Upon start-up the display will show a splash screen with the logo of Showtec. Immediately afterwards the display will show the start screen. The start screen provides information about the currently active operation mode and the current tilt angle setting. Press the ENTER button to enter the main menu. -
Page 20: Menu Overview
Phantom 1220 Zoombar Menu Overview Product code: 40090... -
Page 21: Main Menu Options
Phantom 1220 Zoombar Main Menu Options DMX Address DMX mode / Slave / Auto / Manual Tilt Reverse / Zoom Reverse / Tilt Angle / Pixel Invert / Display / Screen Reverse / Color Mixing Mode / Dimmer Curve / Dimmer Speed / PWM Option / Reset... -
Page 22: Built-In Programs Mode
Phantom 1220 Zoombar Built-in Programs Mode In this menu you can set the DMX channel mode, auto programs and manual operation. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 23: Manual
Phantom 1220 Zoombar Manual 01) Once you have entered this submenu, the display will show: 02) Press the UP/DOWN buttons to choose one of the following 17 options: ● TILT ● P/T SPEED (from fast to slow) ● RED (from dark to brightest) ●... -
Page 24: Advanced Settings
Phantom 1220 Zoombar Advanced Settings In this menu you can set the advanced settings. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to choose one of the following 12 options: ●... -
Page 25: Dimmer Curves
Phantom 1220 Zoombar Dimmer Curves The available dimming curves are: Reset Function 01) If you have chosen RESET FUNCTION (in step 3, page 23), the display will show: 02) Press the UP/DOWN buttons to choose one of the following options: ●... -
Page 26: System Information
Phantom 1220 Zoombar System Information In this menu you can see the currently active mode, the DMX starting address, the current software version, device’s temperature, total operation time and the UID number. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu and view the parameters. -
Page 27: Dmx Channels
Phantom 1220 Zoombar DMX Channels 19 Channels 19 CH Function Value Setting Tilt 000–255 Tilt adjustment 0°–180° Tilt, Fine 000–255 Tilt adjustment, 16-bit Tilt speed 000–255 Speed adjustment of the tilt, from fast to slow Dimmer 000–255 From low to high intensity (0–100 %) 000–004... - Page 28 Phantom 1220 Zoombar 19 CH Function Value Setting 248–255 Color switch, from fast to slow 000–003 No function 004–006 Pattern 1 007–009 Pattern 2 010–012 Pattern 3 Pattern … … 247–249 Pattern 82 250–252 Pattern 83 253–255 Pattern 84 000–015 No function 016–019...
- Page 29 Phantom 1220 Zoombar 19 CH Function Value Setting 055–059 Tilt reset 060–064 Zoom reset 065–069 No function 070–074 All reset 075–079 No function 080–084 Tilt reverse 085–089 Pixel reverse 090–094 Tilt reverse 095–099 No function 100–109 Cancel tilt reverse 110–114 Cancel pixel reverse 115–134...
-
Page 30: 24 Channels, 72 Channels, 84 Channels
Phantom 1220 Zoombar 24 Channels, 72 Channels, 84 Channels Function Value Setting Tilt 000–255 Tilt adjustment 0°–180° Tilt, Fine 000–255 Tilt adjustment, 16-bit Tilt speed 000–255 Speed adjustment of the tilt, from fast to slow Dimmer 000–255 From low to high intensity (0–100 %) Dimmer, Fine 000–255... - Page 31 Phantom 1220 Zoombar Function Value Setting Red (R=255, G=0, B=0, W=0) 164–200 R=255, G=0, B+, W=0 Magenta (R=255, G=0, B=255, W=0） 202–238 R-, G=0, B=255, W=0 Blue (R=0, G=0, B=255, W=0) 240–247 Color flow, from fast to slow 248–255 Color switch, from fast to slow 000–003...
- Page 32 Phantom 1220 Zoombar Function Value Setting Background 000–255 From low to high intensity (0–100 %) Background 000–255 From low to high intensity (0–100 %) Green Background 000–255 From low to high intensity (0–100 %) Blue Background 000–255 From low to high intensity (0–100 %)
- Page 33 Phantom 1220 Zoombar Function Value Setting White 1 000–255 From low to high intensity (0–100 %) Dimmer 2 000–255 From low to high intensity (0–100 %) Red 2 000–255 From low to high intensity (0–100 %) Green 2 000–255 From low to high intensity (0–100 %) Blue 2 000–255...
-
Page 34: 129 Channels
Phantom 1220 Zoombar 129 Channels 129 CH Function Value Setting Tilt 000–255 Tilt adjustment 0°–180° Tilt, Fine 000–255 Tilt adjustment, 16-bit Tilt speed 000–255 Speed adjustment of the tilt, from fast to slow Dimmer 000–255 From low to high intensity (0–100 %) Dimmer, Fine 000–255... - Page 35 Phantom 1220 Zoombar 129 CH Function Value Setting 248–255 Color switch, from fast to slow 000–003 No function 004–006 Pattern 1 007–009 Pattern 2 010–012 Pattern 3 Pattern … … 247–249 Pattern 82 250–252 Pattern 83 253–255 Pattern 84 000–015 No function 016–019...
- Page 36 Phantom 1220 Zoombar 129 CH Function Value Setting Background 000–255 From low to high intensity (0–100 %) Green, Fine Background Blue 000–255 From low to high intensity (0–100 %) Background Blue, 000–255 From low to high intensity (0–100 %) Fine Background 000–255...
- Page 37 Phantom 1220 Zoombar 129 CH Function Value Setting Green 1 000–255 From low to high intensity (0–100 %) Green 1, Fine 000–255 From low to high intensity (0–100 %) Blue 1 000–255 From low to high intensity (0–100 %) Blue 1, Fine 000–255...
-
Page 38: Troubleshooting
Phantom 1220 Zoombar Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 39: Maintenance
Phantom 1220 Zoombar Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. -
Page 40: Basic Cleaning Instructions
Phantom 1220 Zoombar Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 41: Deinstallation, Transportation And Storage
Phantom 1220 Zoombar Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 42 Phantom 1220 Zoombar Product code: 40090...
- Page 43 Phantom 1220 Zoombar Product code: 40090...
- Page 44 ©2020 Showtec...
