Summary of Contents for SHOWTEC Club Barrel

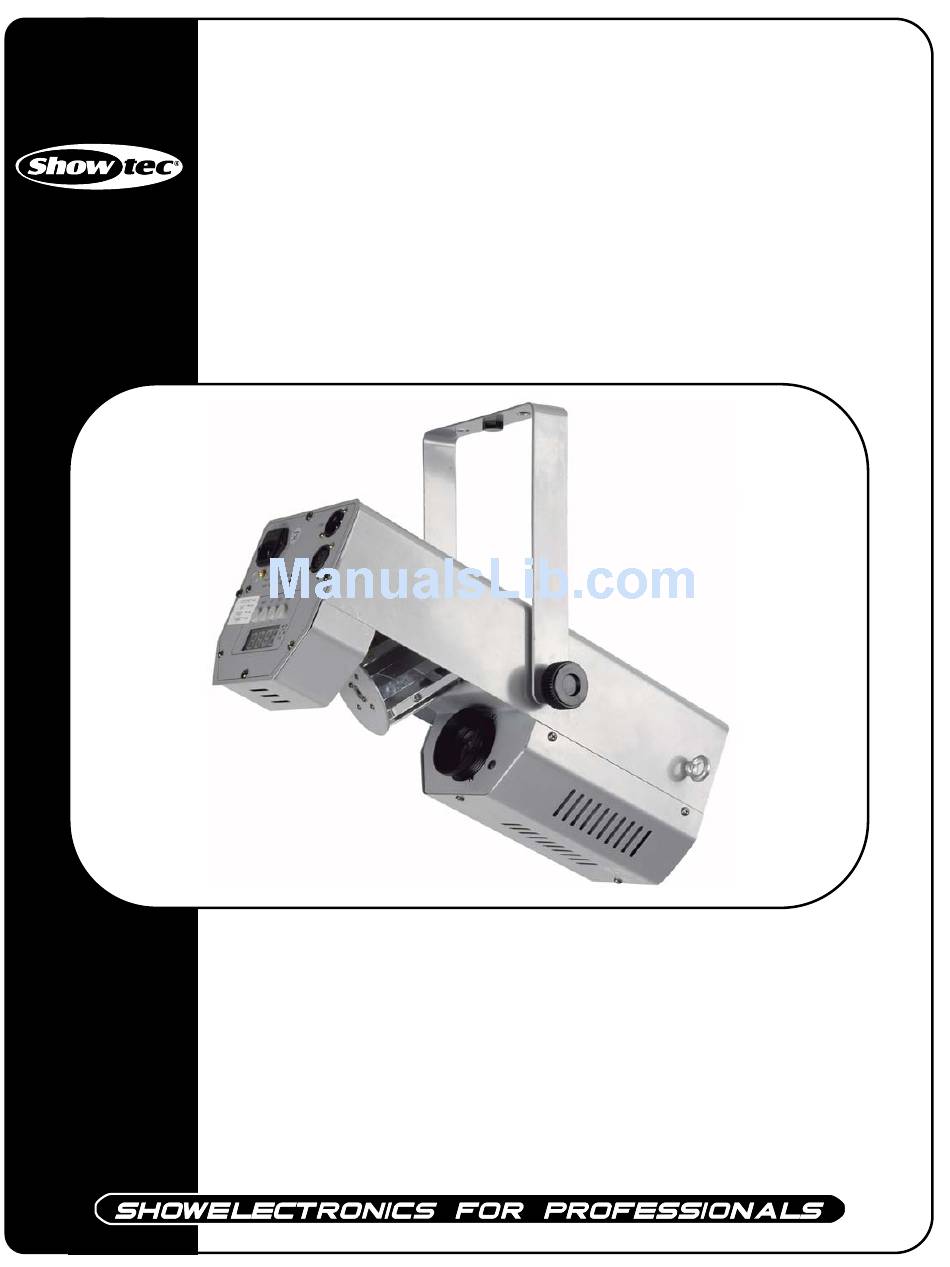

- Page 1 Club Barrel ORDERCODE 40148...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Club Barrel brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Club Barrel Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… One Club Barrels.................………………………………………… Multiple Club Barrels................…………………………………. DMX-Protocol…...........……………………………………………………………. Control Panel….....……........………………………………………………………. Control Mode........……………………………………………………………………… addressing........……………………………………………………………………… Functions control panel........………………………………………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be •... -
Page 7: Description

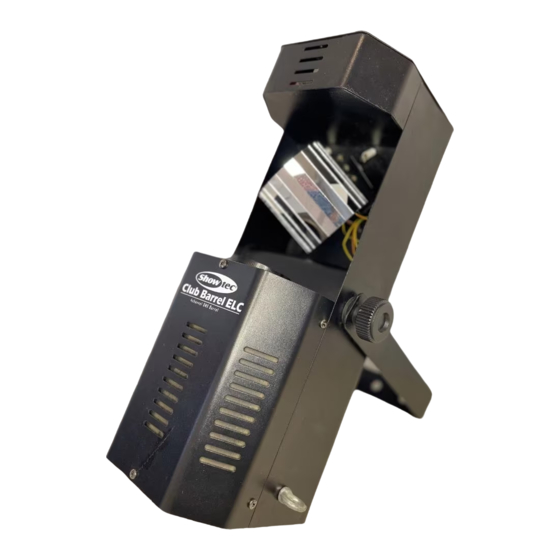

Description of the device Features The Showtec Club Barrel is a scanner with high output and great effects. • 1 Color-wheel with 8 colored gobos, and open • DMX-control via standard DMX-controller • 4 DMX-control channels required • Strobe-effect with adjustable speed (1 - 10 flashes/sec.) •... -
Page 8: Installation
Installation Installing the Lamp The Showtec Club Barrel uses the ELC (ordercode 80809G / 80809O / 80809P) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Set Up And Operation
Then plug the other end of the cord into a proper electric power supply socket. Turn on the music. If the Club Barrel has been set to Audio, the fixture will react to the beat of the music. Multiple Club Barrels 1. -
Page 10: Dmx-Protocol
Positive/Negative Rainbow effect with increasing speed 172-251 Strobe effect with increasing speed 252-255 Open Channel 4 – Dimmer 9-246 247-255 Reset The Club Barrel can be operated with a controller in control mode or without the controller in stand-alone mode. -
Page 11: Control Panel
When using multiple Club Barrels, make sure you set the DMX addresses right. Therefore, the DMX address of the first Club Barrel should be 1(001); the DMX address of the second Club Barrel should be 1+4=4 (005); the DMX address of the third Club Barrel should be 5+4=9 (009), etc. -
Page 12: Functions Control Panel
Mode Button Up /Down Button DMX Mode: Light 1 Dmx Mode: DMX Mode: Light 512 Program 1 Program 2 Programs: Program 3 Program 4 Sound-control Program Audio Mode: Program Func Button Up /Down Button Pan Invert Tilt Tilt Tilt Invert Display Display Display Off... -
Page 13: Stand-Alone Mode
Remotely controllable functions Colour-wheel The Club Barrel contains a colour-wheel with 8 colours and white. It is possible to rotate the colour-wheel continuously at different speeds ( “Rainbow effect” in both directions). Shutter/Dimmer/Strobe The dimming (0-100%) is provided by a simple mechanical shutter unit. This unit may also be used for strobe effect (1-10 flashes per second). -
Page 14: Static Gobowheel
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Club Barrel requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 15: Replacing The Fuse
Replacing a Fuse Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do so. 1. Unplug the unit from electric power source. 2. - Page 16 Problem Probable cause(s) Remedy No power to the fixture ·Check that power is switched on and One or more cables are plugged in. fixtures are Primary fuse blown. ·Replace fuse. completely dead. Fixtures reset The controller is not connected. ·Connect controller. correctly, but all 3-pin XLR Out of the controller ·Install a phase reversing cable...
-
Page 17: Product Specifications
Product Specification Model: Showtec Club Barrel Voltage: 240V-50Hz (CE) Power: 300W Fuse: 5A / 250V Dimensions: 425x155x155mm (LxWxH) Weight: 7,14 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel...
