Summary of Contents for SHOWTEC City Painter 1800 Spot

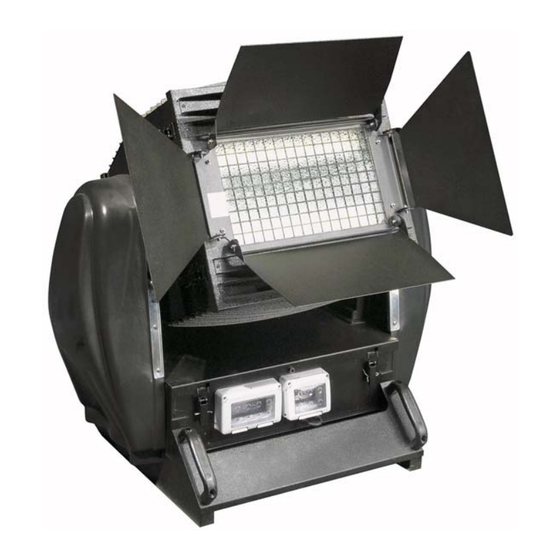

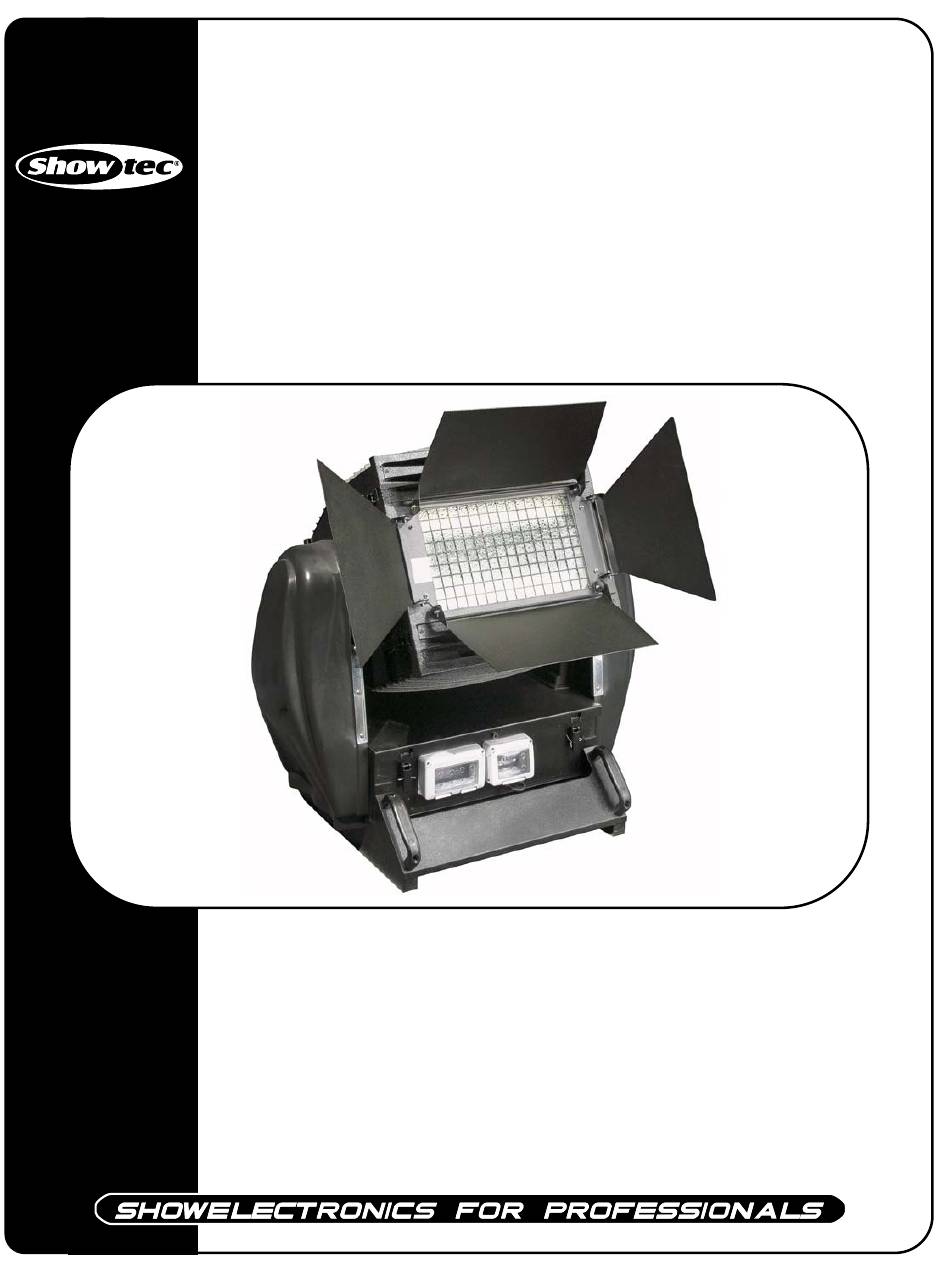

- Page 1 City Painter 1800 Spot ORDERCODE 40903...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec City Painter 1800 Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….…… Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… One City Painter .................………………………………………… Multiple City Painters…................………………………………….. DMX-Protocol…...........…………………………………………………………….. Addressing........……………………………………………………………………... Channels........…………………………………………………………………..…… Symbol / LCD Description and Function.........……………………………..…………..…... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. - Page 6 The relative humidity must not exceed 50 % with an ambient temperature of 45° C. If this device is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
-
Page 7: Description
Description of the device Features The Showtec City Painter 1800 is a colourchanger with high output and great effects. • DMX-control via standard DMX-controller • 6 DMX-control channels required • IP-54 Protection degree • Stand-alone control or Master –Slave control •... -
Page 8: Installation
Installation Installing the Lamp The Showtec City Painter 1800 uses the MSR 2000 (ordercode 80932P) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One City Painter 1. - Page 10 Multiple City Painters Set Up DMX-Set up Master/Slave Set up Fig. 4 Note : Link all cables before connecting electric power If the lines have a total length over 150-200 meters, it is recommended to use a signal amplifier. The usage of a normal microphone or audio cable is suggested only for lines max. 100 meter long. Fig.
-
Page 11: Dmx-Protocol
DMX Protocol The City Painter 1800 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Mode DMX Addressing The control panel on the front side of the base allows you to assign the DMX fixture address, which is the first channel from which the City Painter will respond to the controller. -
Page 12: Symbol / Lcd Description And Function
Symbol / LCD Description and Function Digtal LCD WORDS FUNCTION ADDR Address Channels for addressing (1….512) GAME Inner Program Set Speed, 0 for fastest, 255 for slowest MODE Mode Control made : MAST for main SLAV for slave, DMX for DMX512 REST Rest Self-check... -
Page 13: Ip Rate
IP RATE The declared IP rate of the City Painter only works if you meet the following comes conditions: • Install the fixture on a wide and stable surface. • The air cooling input and output are located on the base of the side-shell, it is not possible to install the fixture outdoor with the ballast upwards. -
Page 14: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec City Painter 1800 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 15: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 16 Problem Probable cause(s) Remedy No power to the fixture ·Check that power is switched on and One or more cables are plugged in. fixtures are Primary fuse blown. ·Replace fuse. completely dead. Fixtures reset The controller is not connected. ·Connect controller. correctly, but all 3-pin XLR Out of the controller ·Install a phase reversing cable...
-
Page 17: Product Specifications
Product Specification Model: Showtec City Painter 1800 Voltage: 240V-50Hz (CE) Power: 2600W Fuse: 3x 15A Dimensions: 800x545x730mm (LxWxH) incl. handles Weight: 67 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) DMX Channels: 6... - Page 18 2005 Showtec.
