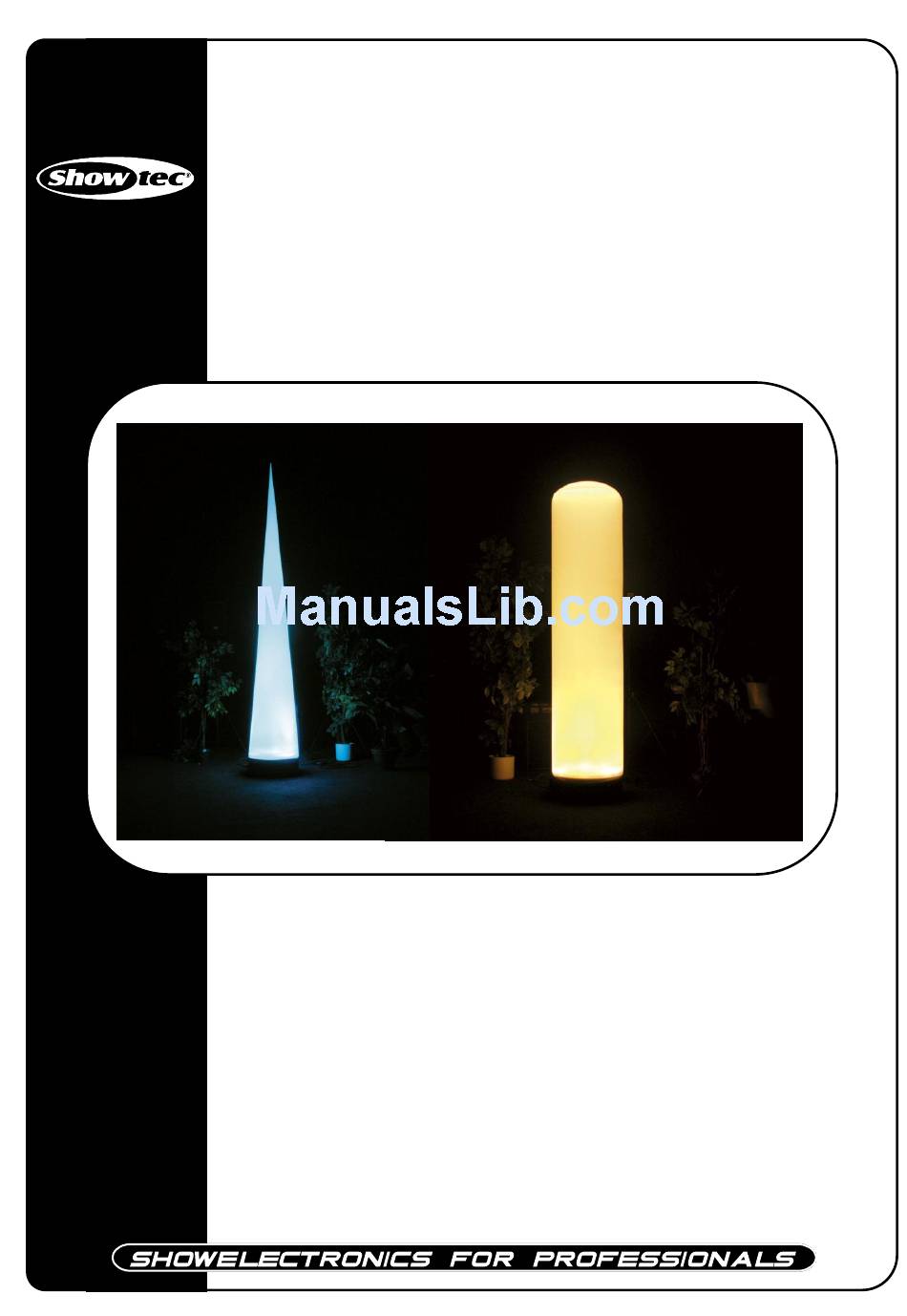

- Page 1 Aircone LED 1W ORDERCODE 40313 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
- Page 3 Showtec Showtec Aircone LED 1W Product Guide ™ Warning ................................... 3 Safety Instructions ..............................3 Operating Determinations ............................5 Rigging ..................................5 Return Procedure ..............................6 Claims ..................................6 Description of the device ............................. 7 Features ..................................7 Overview ..................................7 Installation ..................................
-
Page 4: Warning
Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0,5 meter. •... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description Of The Device

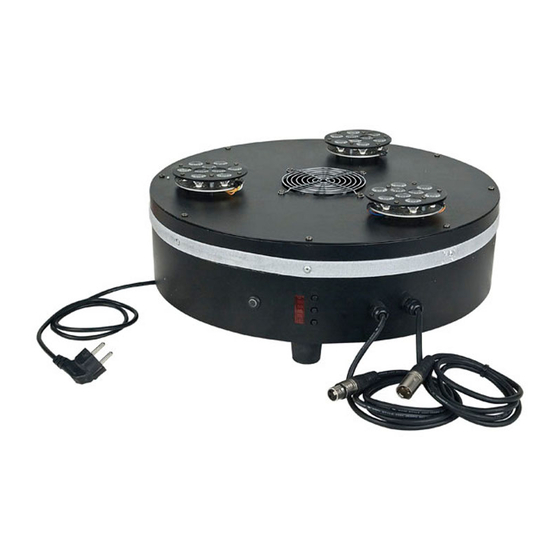

Description of the device Features The Showtec LED Aircone 1W is a LED parcan with high output and great effects. • Never change lamps again! • 36 LEDs (12 Red, 12 Green, 12 Blue) • 7 DMX channels • Straight cone and pyramid cone are included. -
Page 9: Installation
Installation Remove all packing materials from the Aircone LED 1W. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 10 Supply electric power: Plug the electric mains power cords into a proper electric power supply, starting with the first unit. Do not supply power before the whole system is set up and powered properly. Multiple Aircone LED 1Ws Pro Set Up Max.
-
Page 11: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
Control Panel Fig. 3 A. Static mode indicator E. Mode button B. Display F. Up button C. DMX signal indicator G. Down button D. DMX mode indicator DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. When the Aircone LED 1W is in DMX mode, the DMX mode indicator (D) and the DMX signal indicator (C) will light up. -
Page 13: Menu Overview
Menu Overview... -
Page 14: Main Menu Options
Main Menu Options Red dimmer mode Green dimmer mode Blue dimmer mode Strobe mode Auto mix color mode 7 Color strobe Sound mode DMX mode 1 (1CH) DMX mode 2 (2CH) DMX mode 3 (3CH) DMX mode 4 (7CH) The Aircone LED 1W will automatically detect the presence of a DMX signal. If a DMX signal is present, the DMX LED will blink and the small red strip in the LCD display will light up. -
Page 15: Manual Control
1. Manual Control 1) Press the Mode (E) button on the device, until the display shows 2) With these menus you can manually set the intensity of Red, Green, Blue and the Strobe speed. Red, from 0 -100% Green, from 0 -100% Blue, from 0 -100% Strobe speed, from slow to fast (0 –... -
Page 16: Dmx Channels
DMX Channels 1 Channel Channel 1 – Macro 0-13 14-34 Macro 1 35-41 Macro 2 42-62 Macro 3 63-90 Macro 4 91-118 Macro 5 119-125 Macro 6 126-146 Macro 7 147-154 Macro 8 155-174 Macro 9 175-181 Macro 10 182-202 Macro 11 203-209 Macro 12... -
Page 17: Channels
Channel 2 – Green 0-255 0-100% Channel 3 – Blue 0-255 0-100% 7 Channels Channel 1 – Red color adjustment ( CH 6: 0-35, CH 4: 0, CH5: 0 0-255 Red from 0 – 100% Channel 1 – Red fade time adjustment ( CH 6: 36-143, CH 4: 0, CH 5: 0 0-255 Red from 0 –... - Page 18 Channel 5 – Static state (only in combination with CH6 0-35) 0-15 Static state 16-255 16 steps Channel 5 – Strobe / Speed (only in combination with CH6 36-251) 0-255 Strobe, from slow to fast Channel 6 – Built-in Programs 0-15 Adjust colors 36-71...
-
Page 19: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec LED Aircone 1W requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. - Page 20 See the table below for more problem solving. Problem Probable cause(s) Remedy One or more No power to the fixture • Check that power is switched on fixtures are and cables are plugged in. completely dead. Fixtures reset The controller is not connected. •...
-
Page 21: Product Specification
Product Specification Model: Showtec LED Aircone 1W 36 LEDs (12 Red, 12 Green, 12 Blue) 7 DMX channels Straight cone and pyramid cone are included. Cones are interchangeable with 40312 LED Aircone DMX cones. Voltage: 230V-50Hz (CE) Power: 132W Weight:...
