Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

One Explorer

1. Fasten the moving head onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Plug the end of the electric mains power cord into a proper electric power supply socket.

Multiple Explorers

1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Use a 3-p/ 5-p XLR cable to connect the Explorers and other devices.

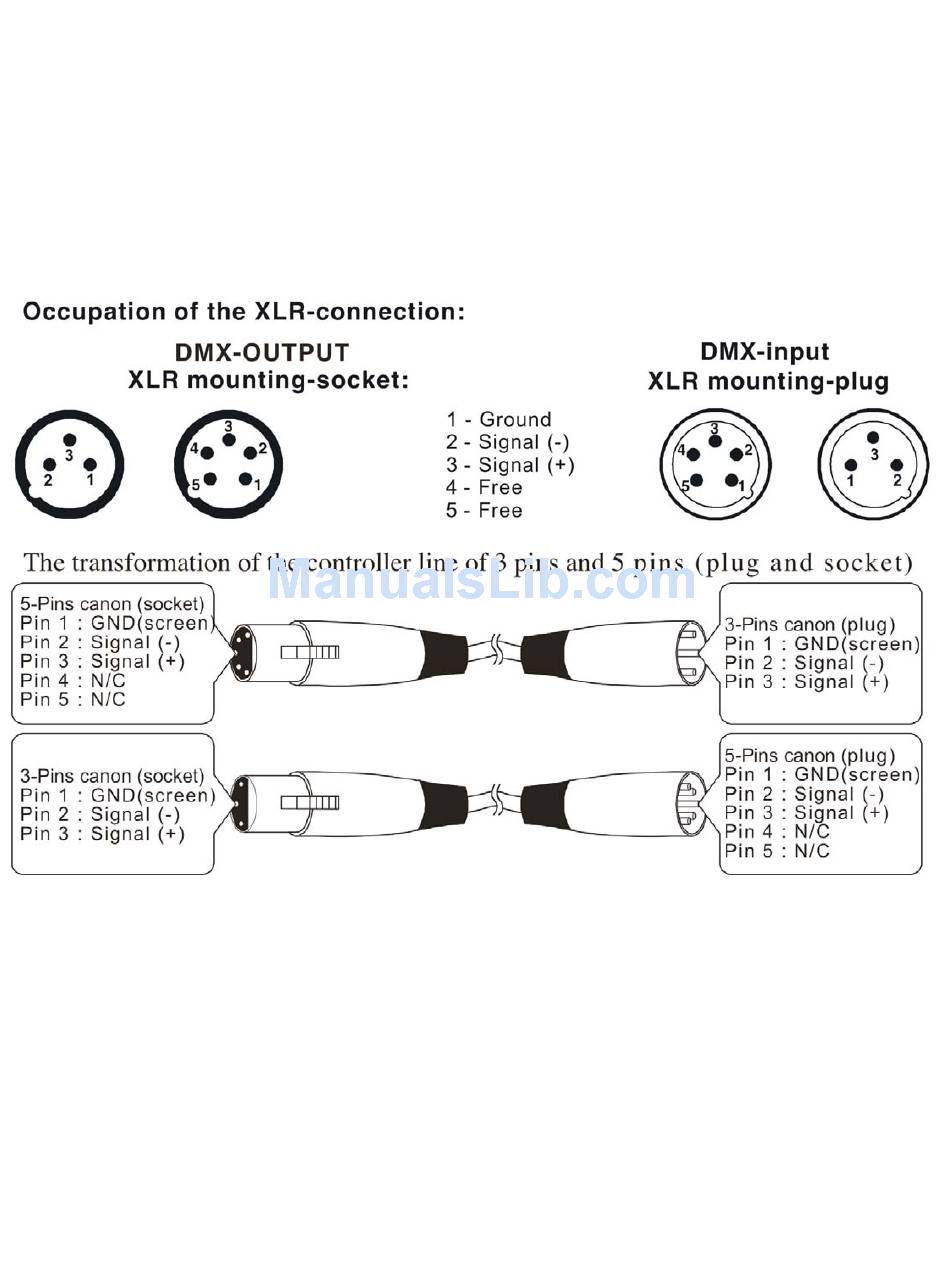

3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Supply electric power: Do not supply power before the whole system is set up and connected properly.
