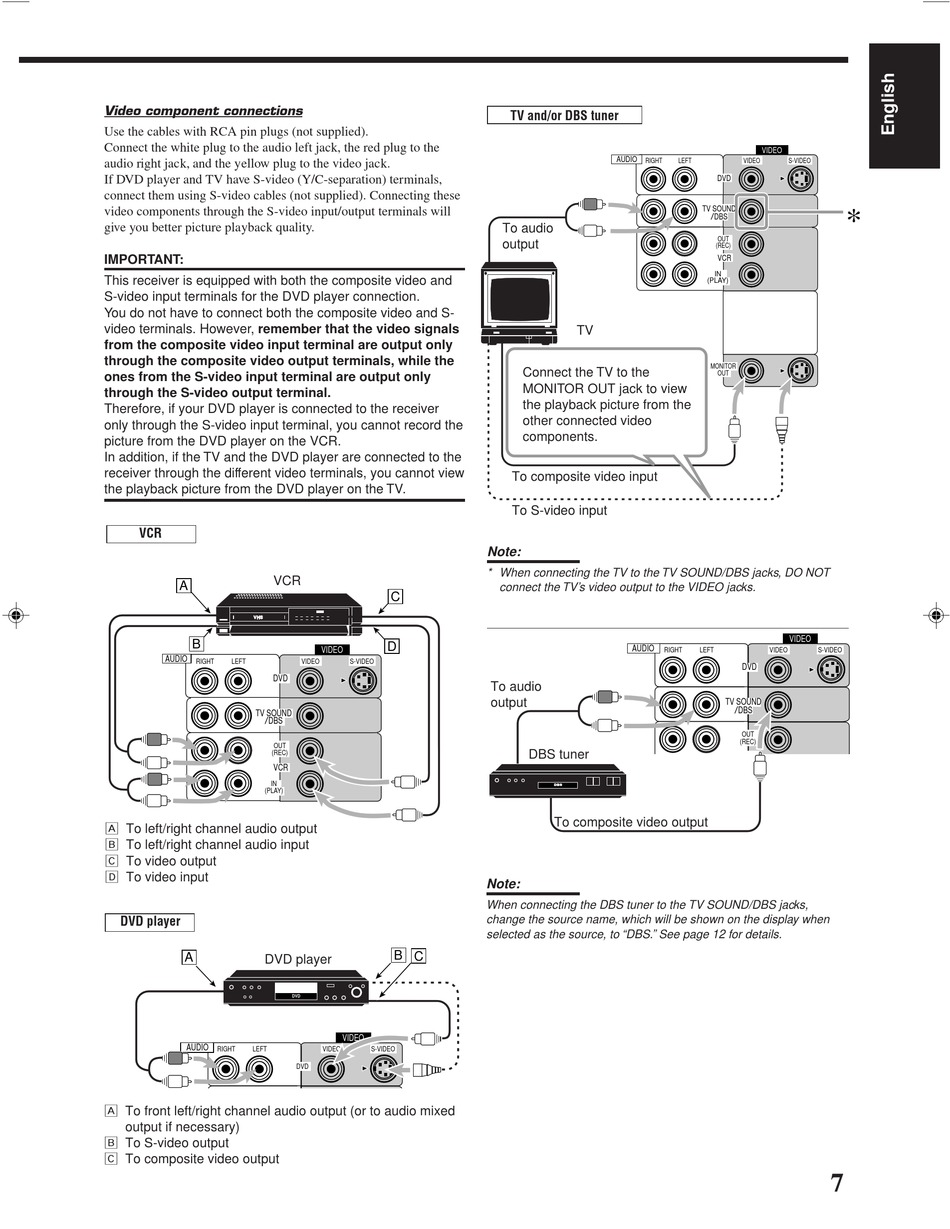

JVC RX-778VBK Instruction Manual page 9

Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
If DVD player and TV have S-video (Y/C-separation) terminals,
connect them using S-video cables (not supplied). Connecting these
video components through the S-video input/output terminals will
give you better picture playback quality.
IMPORTANT:
This receiver is equipped with both the composite video and
S-video input terminals for the DVD player connection.
You do not have to connect both the composite video and S-
video terminals. However, remember that the video signals
from the composite video input terminal are output only
through the composite video output terminals, while the
ones from the S-video input terminal are output only
through the S-video output terminal.
Therefore, if your DVD player is connected to the receiver
only through the S-video input terminal, you cannot record the
picture from the DVD player on the VCR.
In addition, if the TV and the DVD player are connected to the
receiver through the different video terminals, you cannot view
the playback picture from the DVD player on the TV.
VCR
A
B
AUDIO
RIGHT LEFT
TV SOUND
/DBS
(PLAY)
Å To left/right channel audio output
ı To left/right channel audio input
Ç To video output
Î To video input
DVD player
A
DVD player
AUDIO
RIGHT LEFT
Å To front left/right channel audio output (or to audio mixed
output if necessary)
ı To S-video output
Ç To composite video output
VCR
C
D
VIDEO
VIDEO S-VIDEO
DVD
OUT
(REC)
VCR
IN
B C
DVD
VIDEO
VIDEO S-VIDEO
DVD
TV SOUND
/ S
TV and/or DBS tuner
RIGHT
AUDIO
RIGHT
To audio
output
TV
Connect the TV to the
MONITOR OUT jack to view
the playback picture from the
other connected video
components.
To composite video input
To S-video input
Note:
* When connecting the TV to the TV SOUND/DBS jacks, DO NOT
connect the TV's video output to the VIDEO jacks.
RIGHT
AUDIO
To audio
output
DBS tuner
DBS
To composite video output
Note:
When connecting the DBS tuner to the TV SOUND/DBS jacks,
change the source name, which will be shown on the display when
selected as the source, to "DBS." See page 12 for details.
VIDEO
LEFT VIDEO S-VIDEO
DVD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
MONITOR
OUT
VIDEO
RIGHT LEFT VIDEO S-VIDEO
DVD
TV SOUND
/DBS
OUT
(REC)
IN
(PLAY)
OUT
(REC)
VCR 2
IN
(PLAY)
*
