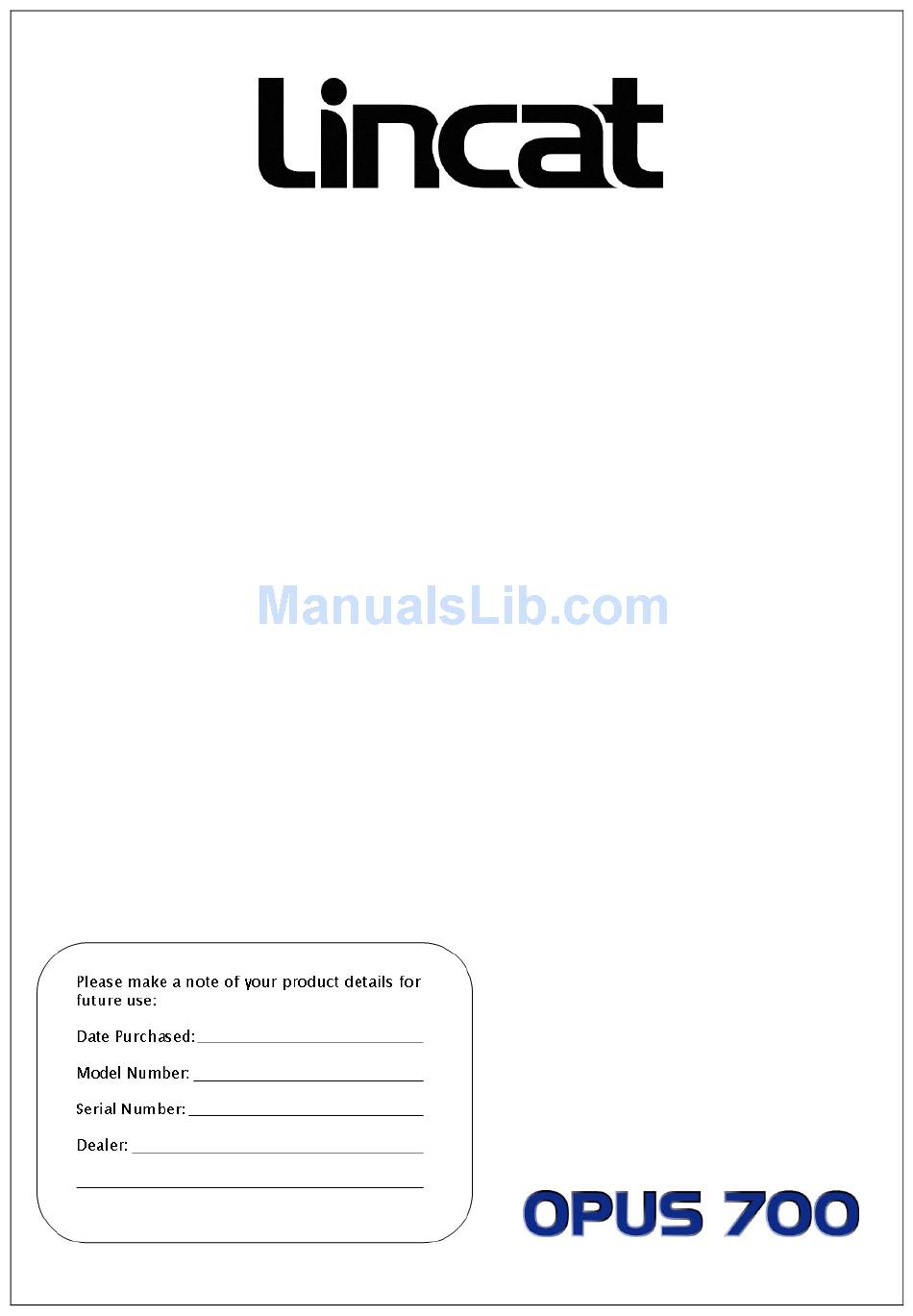

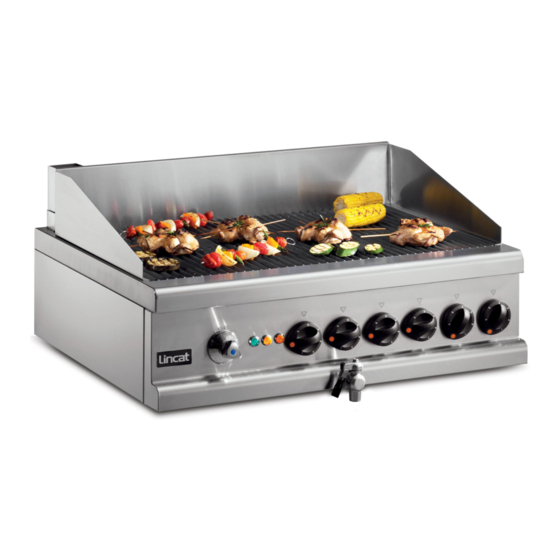

- Page 1 User, Installation and Servicing Instructions Opus 700 Electric Chargrills OE7405 and OE7406 IS421 ECN3592...
-
Page 2: Customer Information
Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. For use in GB & IE... -
Page 3: Table Of Contents
CONTENTS Contents Page Customer Information………………………………………………………. Warnings and Precautions………………………………………………… Technical Data……………………………………………………………….. Commissioning………………………………………………………………. Check List of Enclosures…………………………………………………... Installation…………………………………………………….……………… User………………………………………………………….………………….. Commissioning.…………………………………………………..…..……….. Servicing.…………………………………………………..………………….. Component Replacement …………………………….…………….……… Spare Parts List……..………………………………….…………………… Wiring Diagrams…………………………………..…………………………. Accessories....………………………………….……………………… Service information………………………………………………………….. Guarantee………………………………………………………….………….. IS421 ECN3592... -
Page 4: Warnings And Precautions
WARNINGS AND PRECAUTIONS It is mandatory that all appliances are installed, commissioned and serviced by a qualified and competent person as defined by the regulations in force in the country of installation. Failure to comply will invalidate the warranty. WARNING! This appliance must be installed by a competent installation engineer in accordance with the installation instructions, and should conform to the following requirements: ... -
Page 5: Technical Data
TECHNICAL DATA Model OE7405 OE7406 Dimensions Overall Height (mm) Width (mm) Depth (mm) Weight (kg) Total Cooking Surface w x d (mm) 550 x 525 845 x 525 Electrical Element Rating 11.2 kW 2 x 8.25 kW Phase Phase 3.73kW 5.5kW... -
Page 6: Commissioning
Warranty Card User Instructions SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in the top NOTE right hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference. -
Page 7: Installation
INSTALLATION SITING The appliance must be installed in accordance with the appropriate regulations listed prior. The appliance should be installed on a level surface ensuring the unit is stable, firmly located and positioned to minimise the possibility of accidental touching. A clear space of at least 100mm must be left to the rear of the appliance to allow for servicing with a clear space of 600mm to the front to allow for safe operation. -
Page 8: Control Panel
APPLIANCE USE This appliance is only for professional use and should only be used by qualified personnel. Ensure that the person responsible understands how to fill the water tank, safely operate, clean and shut down the appliance and is made aware of the position of the isolating switch in the event of an emergency. -
Page 9: Commissioning
OE7405 600mm CHARGRILL CONTROL Check the green ‘power on’ neon on the control panel is illuminated. - Page 10 Lift off each of the side liners from the unit. External surfaces can be cleaned using a cloth moistened with a warm detergent solution. For heavy, stubborn deposits a de-greasing agent ‘CARBON-OFF’ is available from Lincat upon request.
-
Page 11: Servicing
SERVICING For information on authorised service agents please see the section at the end of these instructions. ROUTINE SERVICE 1. Carry out a general check of the installation paying particular attention to the following:- 2. Has the unit been installed using the correct supply cable? 3. - Page 12 Energy regulator 1. With the fascia panel removed as above disconnect the wires from the energy regulator terminals. It is easier to fit each wire to the new energy regulator as it is removed, therefore avoiding confusion. 2. Unscrew the M4 screws, which hold the energy regulator to the fascia panel. 3.
-
Page 13: Spare Parts List
SPARE PARTS LIST Part Number Part Description Used On BP37 BRANDING PLATE OE7405 CO167 FILL VALVE CO214 CONTACTOR EL273 11200 W ELEMENT EN10 ECO ENERGY REGULATOR KN233 OPUS KNOB PRINTED 1 TO 6 NE39 NEON LARGE GREEN NE40 NEON LARGE AMBER... -
Page 14: Wiring Diagrams
OE7405 Chargrill Wiring (E353) CO214 EN10 TE45 TH73 EL273 AMBER Earthed To NEONS Lifting Box GREEN NEON SW64 IS421 ECN3592... - Page 15 OE7406 Chargrill Wiring (E354 live & neutral shown separately) 6 X EN10 TH73 CO214 EL272 TE45 CO214 EL272 TH73 2 x SW64 TH73 6 X EN10 CO214 EN45 EL272 AMBER NEONS 49 50 Earths To lifting CO214 box tabs TH73 EL272 GREEN NEON...
-
Page 16: Accessories
Opus Floor Stand installation instructions OA7947 – 600mm wide Floor Stand & OA7948 – 900mm wide Floor Stand To fit the Chargrill to the above floor stand proceed as follows: 7. Remove feet from counter top unit. 8. Put 30mm packer on top frame side channels, taking care not to cover mounting holes and position unit on top. -
Page 17: Service Information
Electric catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended that this appliance is serviced every 6 months by a competent engineer. For help regarding the installation, maintenance and use of your LINCAT equipment, please call:- LINCAT SERVICE HELP DESK ...
