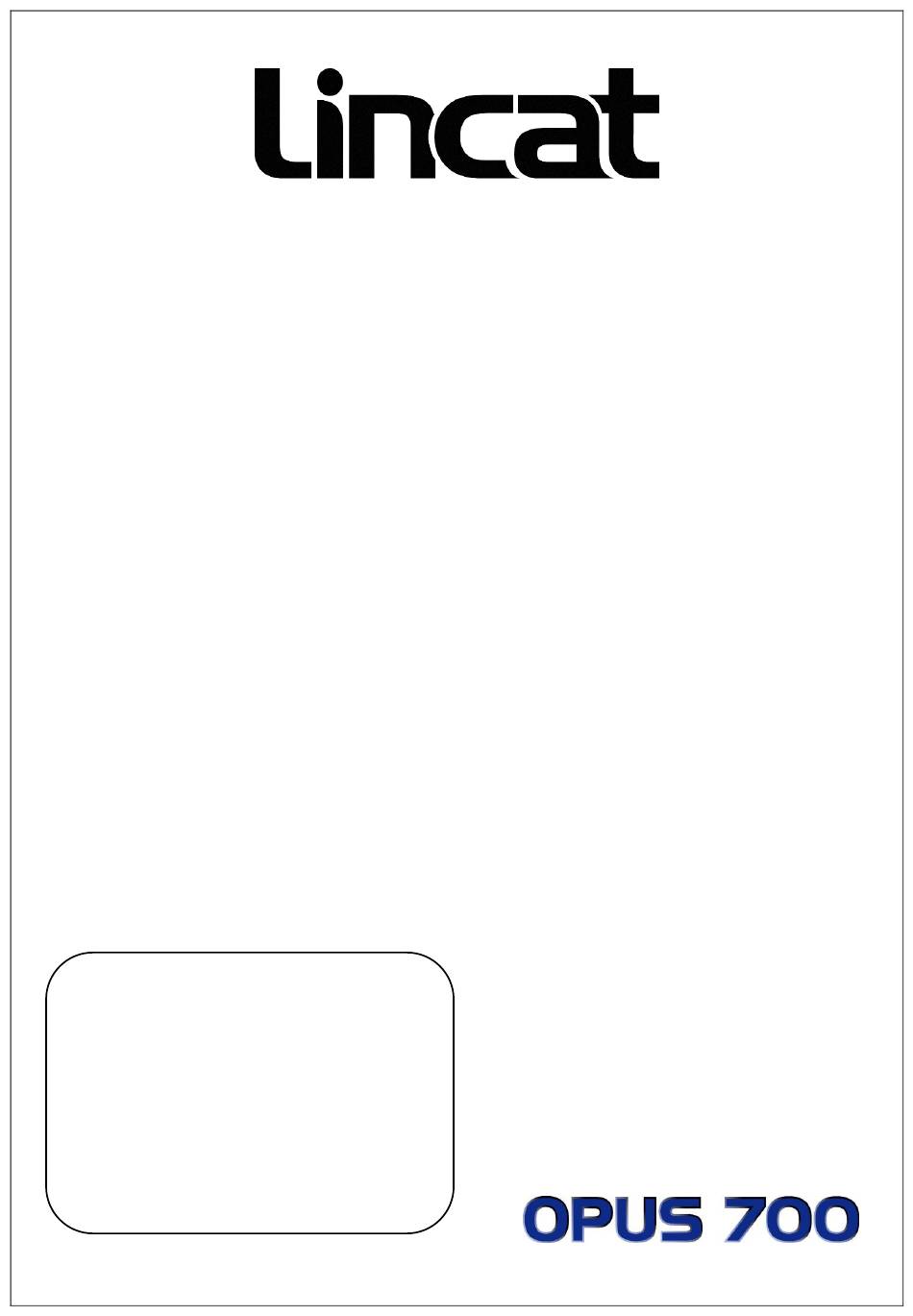

Installation, Operating and Servicing
Instructions
Opus 700 Electric Filtration Fryers
OE7105/F, OE7108/F, OE7113/F
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 335 ECN 3607
Page 1 of 23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opus 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lincat Opus 700

Summary of Contents for Lincat Opus 700

  • Page 1 Installation, Operating and Servicing Instructions Opus 700 Electric Filtration Fryers OE7105/F, OE7108/F, OE7113/F Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 335 ECN 3607 Page 1 of 23...

  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.

  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person.

  • Page 4: Checklist Of Enclosures

    CHECK LIST OF ENCLOSURES Warranty card Instructions manual Wire baskets x 2 Lifting hook Batter plate(s) Drain tube Drain bucket Filter bag and frame Filter bag cover Filter pad holder Filter pads x 6 INSTALLATION AND COMMISSIONING This appliance must be earthed. An equipotential bonding terminal is provided to allow cross bonding with other equipment.
  • Page 5 Fig 1 Fitting the Stabilising Kit (Fig 2) The stabilising kit must be fitted to prevent accidental toppling of the appliance and to ensure a safe working environment. Fit the adjustable stabiliser centrally to the underside of the front cross member of the appliance (A) using the M5 x 16 hex screws and shake proof washers provided.
  • Page 6 Mark locating hole positions of the floor plate. Drill out holes and fit supplied rawlplugs. Screw the floor plate in position using 12g screws. Adjust height position (B) of stabiliser tongue if necessary. Fig 2 Electrical supply and connection Remove the rear panel to gain access to connections. If connecting OE7108/F or OE7113/F appliances to two mains supplies, remove link wires between terminal blocks.
  • Page 7 Component identification Fig 3 OE7108/F 1. Basket support 2. RH element neon 3. Thermostat control 4. Operating mode 5. Pump on 6. RH safety reset 7. LH safety reset 8. Pump reset 9. Filter bag cover 10. Element lifting rod 11. Knurled knob 12. Power on 13. LH element neon 14.
  • Page 8 Fig 4 OE7113/F 1. Basket support 2. RH power neon 3. RH element neon 4. RH thermostat control 5. Operating mode 6. RH safety reset 7. LH safety reset 8. Pump reset 9. Element lifting rod 10. Knurled knob 11. LH power neon 12. LH element neon 13.
  • Page 9 Fig 5 OE7105/F 1. Basket support 2. LH element neon 3. RH element neon 4. RH thermostat control 5. Pump on 6. Operating mode 7. LH safety reset 8. Pump reset 9. RH safety reset 10. Oil bucket 11. Knurled knob 12. Power on neon 13. LH thermostat control 14.
  • Page 10 Commissioning Ensure that the drain taps are closed, remove the filter pad holder from the oil drain tank and clean the tanks thoroughly with a warm, mild detergent solution. Rinse the tanks, tap and drain pipe and dry thoroughly. Run a small quantity of oil across the bottom of the tanks. Attach the drain elbow and open the drain tap to drain through.

  • Page 11: Operating Instructions

    Repeat procedure if necessary for the second tank on twin tank appliances. Switch the Operating mode switch to fryer mode – the green neon will light. Ensure that the end user understands how to operate, shutdown and clean the appliance, and is aware of the position of the isolating switch. OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance.
  • Page 12 Hot oil – Wear protective clothing, gloves and safety glasses. On twin tank appliances, filter one tank at a time. Never operate the pump without the carbon filter pad fitted in the holder. Use the correct filter pad – Lincat Part No. OA7937 (30 pack).

  • Page 13: Cleaning

    In the normal position, the lever is free moving to prevent accidental opening of the valve. Ensure that the handle and drive are never held engaged by any means to always maintain this safety feature. To operate the valve, depress the handle A to engage onto the square drive B and turn to open or close C.
  • Page 14 Cleaning Food debris can be a health risk – ensure the tanks are cleaned thoroughly after use. N.B. The elements can be raised from the tanks to allow easy access for cleaning. As the elements are raised to the parking position, a safety switch disconnects the power supply.
  • Page 15 Fig 9 Close the drain taps into the safe position. Release the filter pad holder from the quick release coupling and remove the drain tank from the fryer. Remove the filter pad from the holder and discard. Clean all items through the dishwasher.

  • Page 16: Servicing, Maintenance And Component Replacement

    SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT All servicing, maintenance and component replacement on this appliance should be carried out by one of our recommended service engineers. Routine service Carry out a general check of the installation, paying particular attention to the following: Correct rating of supply cable.
  • Page 17 Fig 10 Remove the capillary cover bracket (A). Unscrew the thermostat from the back panel. Raise the elements and unclip the thermocouple phial and the capillary from the element legs. Unhook the capillary (C) from the cut out in the hobtop (B), noting whether the coil is wound LH or RH around the support tube (D).
  • Page 18 Connect the cables to the new contactor. Clip in the new contactor and refit the rear cover. Safety cut out Remove the rear cover. Locate the safety cutout assembly at the top adjacent to the element terminals and remove the screws holding the cutout to the bracket. Connect cables to new cutout, screw on new cutout and replace rear cover.

  • Page 19: Fault Finding

    FAULT FINDING Fryer will not heat up Check the mains isolator Is the green neon illuminated and fuse. Check appliance is in fryer mode Is the thermostat turned on Turn on the thermostat Check whether safety Is the amber neon illuminated thermostat needs resetting Change the contactor Is the contactor operating...
  • Page 20 Filtration pump will not work Switch appliance to filter Is the appliance in fryer mode mode (green neon illuminated) Has the pump motor thermal Reset thermal trip (see Fig trip switch activated Is the filtration return pipe Correctly fit the pipe to the correctly fitted coupling Is the filter blocked...
  • Page 21 Fig 11 Thermal trip reset – Fig 11 A. NB Access through door - side only removed for clarity. IS 335 ECN 3607 Page 21 of 23...

  • Page 22: Spare Parts List

    SPARE PARTS LIST Part Number Description Used on BA82 Basket OE7108/F, OE7113/F BA83 Basket OE7105/F CA109 Castor CA112 Braked castor OE7108/F, OE7113/F CA113 Un-braked castor CO215 Contactor DR06 Drawer runner EL180 OE7105/F EL185 Element OE7108/F EL220 OE7113/F FB03 Filter bag FP06 Filter pad holder HA77...

  • Page 23: Service Information And Guarantee

    All available on serial plate Type number  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.

This manual is also suitable for:

Oe7105/fOe7108/fOe7113/f
