User, Installation, Servicing and Conversion
Instructions
Opus 700 Gas Boiling Tops
OG7003, OG7004, OG7009
IS432 ECN3592

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Opus OG7003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincat Opus OG7003

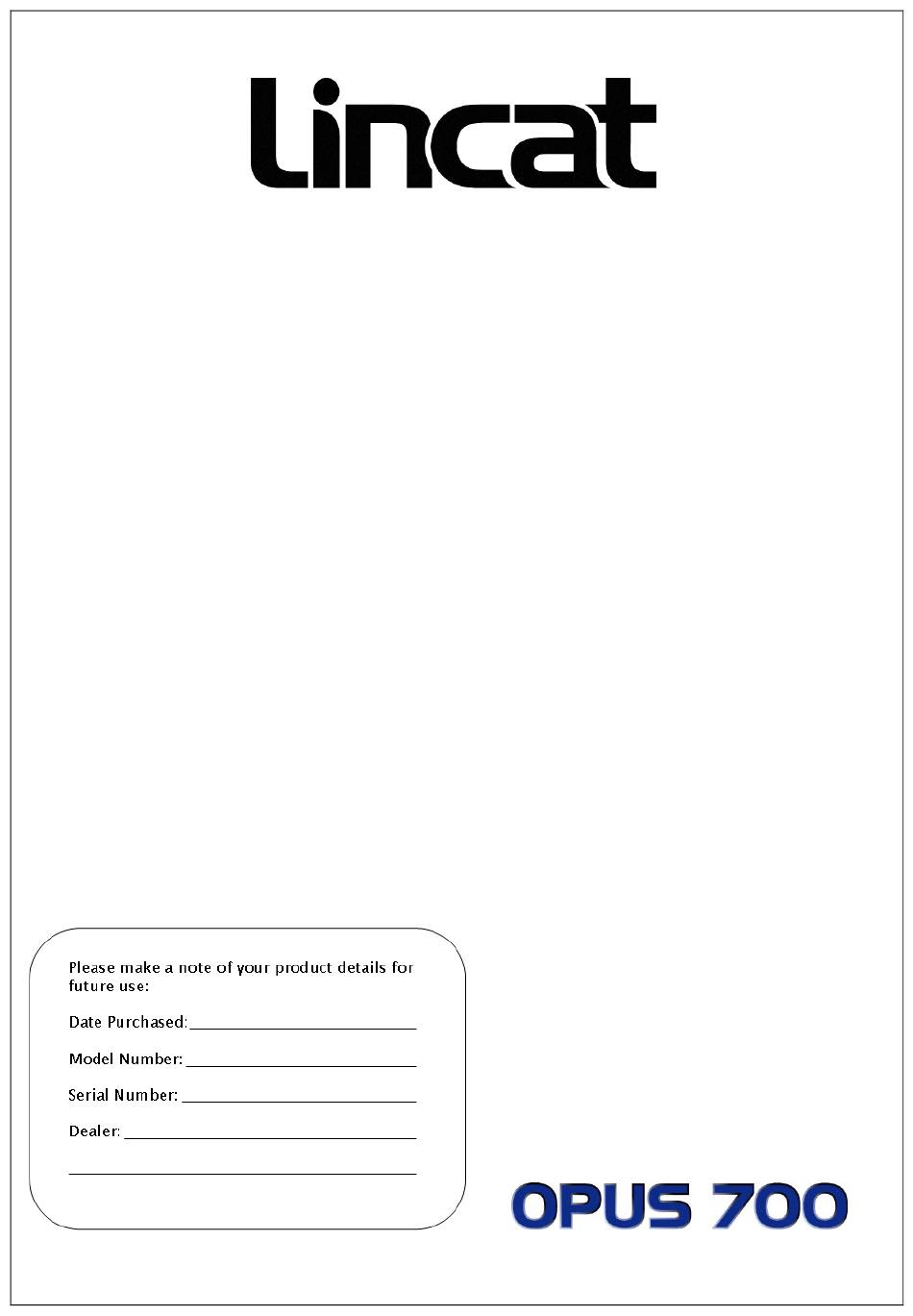

  • Page 1 User, Installation, Servicing and Conversion Instructions Opus 700 Gas Boiling Tops OG7003, OG7004, OG7009 IS432 ECN3592...
  • Page 2: Customer Information

    Used for the purposes for which it is intended, and with careful maintenance as outlined in this User Guide, your Lincat product will give you years of trouble free service. For use in GB & IE...
  • Page 3: Table Of Contents

    CONTENTS Contents Page Customer Information………………………………………………………. 2 Warnings and Precautions………………………………………………… 3 Technical Data……………………………………………………………….. 4 Commissioning………………………………………………………………. 5 Check List of Enclosures………………………………………………….. 5 Installation…………………………………………………….……………… 6 Conversion of Gas Types………………………………………………….. 7-8 User…………………………………………………………………………….. 8-9 Servicing ……………………………………………………………………… 9 Component Replacement ………………………………………….……… 10 Spare Parts List……………………………………………………………… 11 Fault Finding………………………………………………………………….
  • Page 4: Technical Data

    TECHNICAL DATA Model OG7003 OG7004 OG7009 Dimensions Overall Height (mm) Width (mm) Depth (mm) Weight (kg) Hob Cooking Surface w x d (mm) 600 x 600 900 x 600 300 x 600 Heat Input Total Heat Input Natural(Gross) 24.4 kW 36.6 kW 12.2 Kw Total Heat Input Propane(Gross)
  • Page 5: Commissioning

    Ignitor Wand Legs SERIAL NUMBER Each appliance manufactured at Lincat has a unique identifying number found in the top NOTE right hand corner of the data plate attached at the rear of the appliance. Please record that number in the space provided should it be required for future reference.
  • Page 6: Installation

    INSTALLATION SITING The installer must ensure that all regulations are met and that there is an unobstructed minimum distance of 1000mm from the top of the flue to the ceiling, which must be of non-combustible material. The appliance should be installed on a level surface ensuring the unit is stable and firmly located. Any partitions, walls or kitchen furniture in close proximity must be of non-combustible materials and not be closer than 50mm from the sides and rear of the flue.
  • Page 7: Conversion Of Gas Types

    CONVERSION OF GAS TYPES Conversion of Gas Type – Injector Changes  Model Inlet Pressure Injector Mark Part No. OG7003 1.90 JE254 x 4, 6 or 2 OG7004 20 mbar JE216 x 4, 6 or 2 OG7009 OG7003 1.20 JE255 x 4, 6 or 2 OG7004 37 mbar JE217 x 4, 6 or 2...
  • Page 8: User

    Hob Burner Components Part Description Burner Cap Injector Burner Base Injector Holder Completion of Conversion  Remove the redundant data plate and gas type identification label and attach new replacements corresponding to new gas type.  Test all previously dismantled joints for soundness. ...
  • Page 9: Servicing

    CLEANING Ensure the appliance is cool and the gas supply is isolated before commencing cleaning. After use wash the unit down with a warm detergent solution. Frequently check the burner cap ports for blockages. Clear as necessary. Do not use abrasives on stainless steel or enamelled parts. Do not use any products containing chlorine or hydrochloric acid to clean stainless steel surfaces.
  • Page 10: Component Replacement

    COMPONENT REPLACEMENT Access to components can be more easily gained by removal of the the hob top (as shown below) rather than removing the fascia. HOB TOP ACCESS PANEL FASCIA FIXING SCREWS HOB TOP FASCIA FIXING SCREWS CONTROL KNOB HOOK HOB OVER FASCIA BEFORE FASTENING AT REAR...
  • Page 11: Spare Parts List

    SPARE PARTS LIST Part number Part description BU224 Burner base BU225 Burner injector holder BU226 Burner cap CO113 Copper Washer Hob burner injector – Natural JE254 Hob burner injector – Propane JE255 JE216 Hob valve low rate jet - Natural Hob valve low rate jet –...
  • Page 12: Service Information

    Gas catering equipment should be routinely serviced to ensure a long trouble free life. It is recommended that this appliance is serviced every 6 months by a competent gas engineer. For help regarding the installation, maintenance and use of your LINCAT equipment, please call:- LINCAT SERVICE HELP DESK ...

This manual is also suitable for:

Opus 700 seriesOpus og7004Opus og7009
