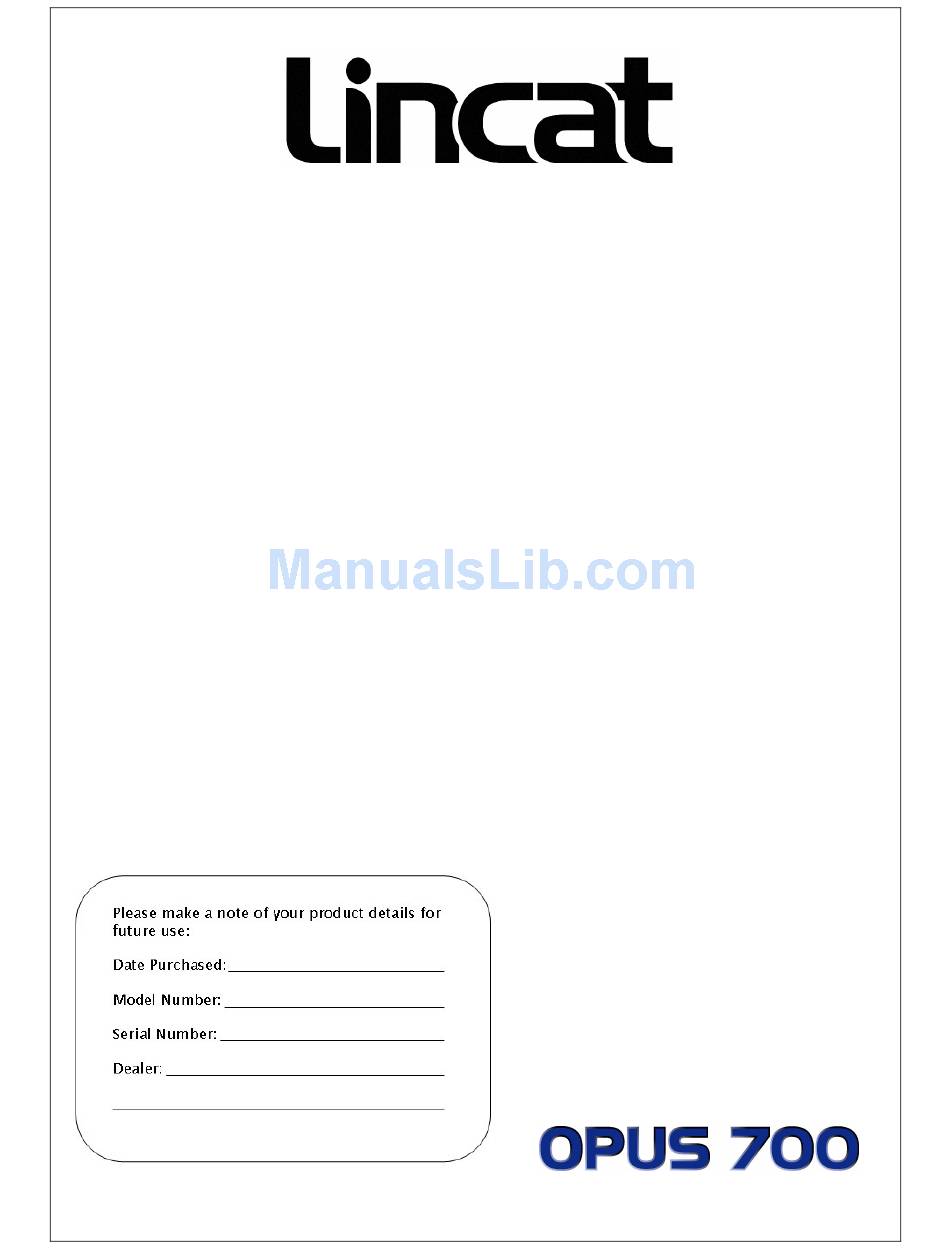

Page 1: User Instructions
User Instructions Opus 700 Electric Fryers OE7105, OE7108, OE7112, OE7113 IS272 ECN3209... - Page 2 Before switching on the appliance please ensure that the tank is filled with oil to the specified capacity as indicated in the table overleaf. Model No. Capacity OE7112 16 Litres OE7113 2 x 16 Litres OE7105 2 x 8 Litres OE7108 35 Litres IS272 ECN3209...
- Page 3 OE7113 CONTROL PANEL Green power On indicator Green power On indicator Tank thermostat control RH/LH Tank Orange element On indicator RH/LH Tank thermostat control RH/LH Element Orange element On indicator OE7105 CONTROL PANEL OE7108 CONTROL PANEL Control Panel Layouts IS272 ECN3209...
-
Page 4: Draining The Oil
Operation Warning Always check that there is oil in the tank before switching on the appliance. 1. Turn on the power supply at the isolating switch and turn the thermostat control knobs to the required temperature setting. 2. The green neon will light indicating that mains power is on, and amber neons will light indicating that the heating elements are energised. - Page 5 Using the drain tap Drain tap Drain elbow attachment Depress Align squares, press to engage, turn to open and close. Turn to Open Turn to Open IS272 ECN3209...
- Page 6 Cleaning the tanks Food debris can be a health risk, ensure that food debris is cleaned from the fryer after use. Element latch release button DETAIL A The elements can be raised out of the tank to allow easy access for debris removal and cleaning. Both elements lift simultaneously using the lifting hook provided.
- Page 7 Disassembly for cleaning WIRE BASKET SUPPORT FASTENER ELEMENT COVER 1. Lift the wire basket support from the mounting bosses. 2. Turn the fasteners anti-clockwise to release the element cover. 3. Re-assemble in reverse order. Note: The baskets and drain tube can be cleaned using a suitable dishwasher. General cleaning Before carrying out any cleaning or maintenance on your fryer, isolate it from the power supply.
