Section 3 - Configuration

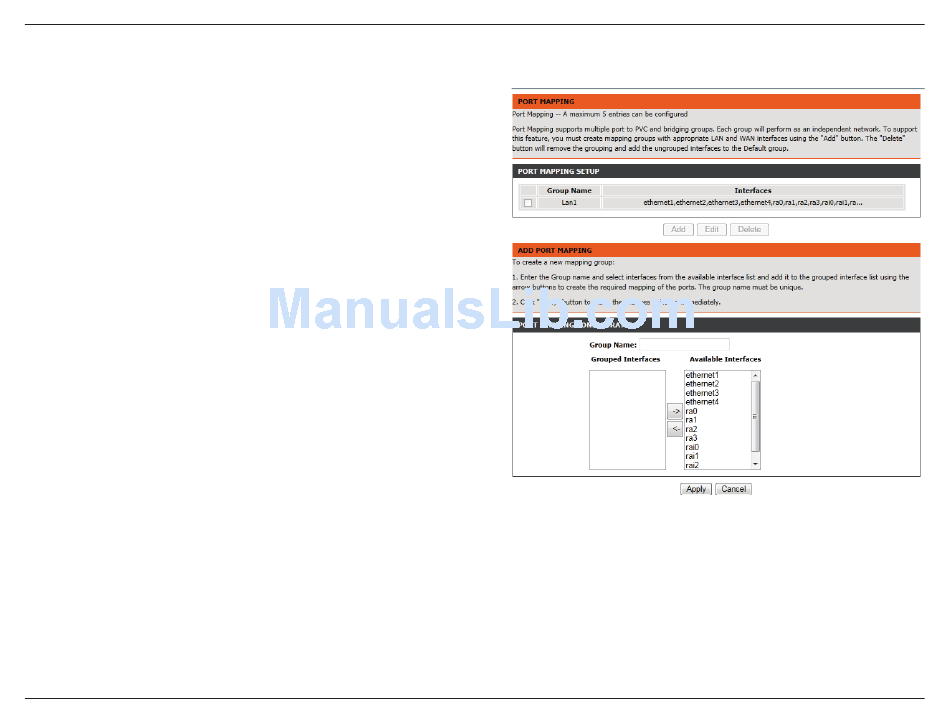

This section enables you to bind the WAN interface and the LAN
interface to the same group. This allows remote computers to
connect to a specific computer or service within a private local-
area network (LAN).
Click Add to reveal the Port Mapping configuration options.
Group Name:
Group Interfaces:
D-Link Wireless AC Dual-Band ADSL Router User Manual
Enter a group name.
Select from the listed interfaces from the
Available Interface then click the <- arrow
button to add them to the Grouped Inter-
face list. This creates the required mapping
of the ports. The group name must be
unique.

Port Mapping

62
