Section 3 - Configuration

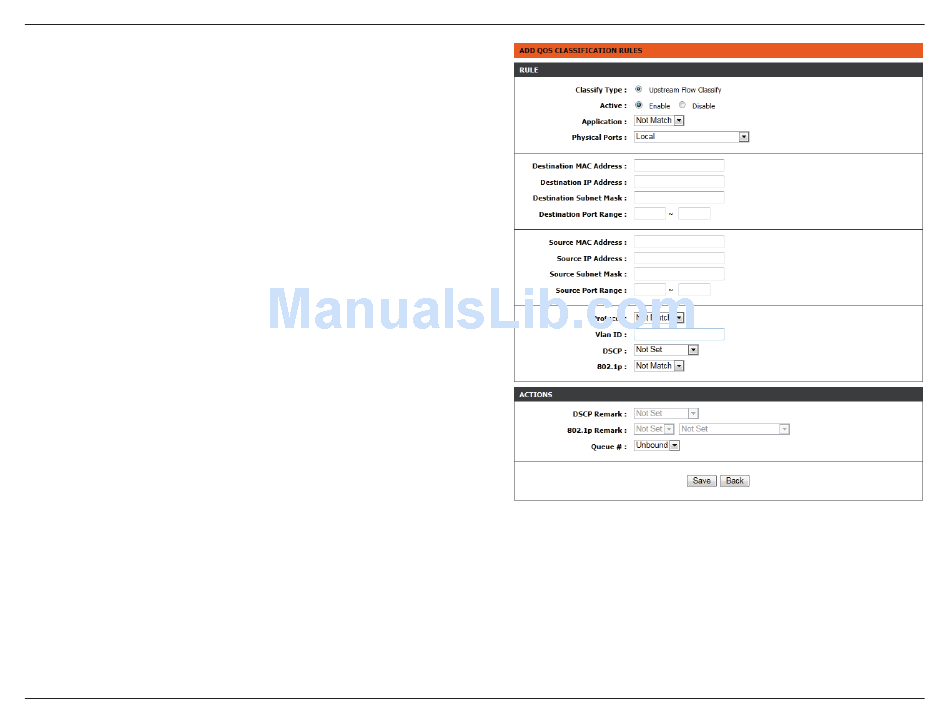

Vlan ID:
DSCP:
802.1p:
DSCP Remark:
802.1p Remark:
Queue #:
D-Link Wireless AC Dual-Band ADSL Router User Manual
Select this option to activate or deactivate
the 4094 VID on the 4 different queues. VID
(VLAN ID) is the identification of the VLAN,
which is used by the standard 802.1Q. It has
12 bits and allows the identification of 4096
(2^12) VLANs. Of the 4096 possible VIDs, a
VID of 0 is used to identify priority frames
and value 4095 (FFF) is reserved. The maxi-
mum possible VLAN configurations are 4,094.
Select a matching DSCP type.
Select a matching 802.1p VLAN priority
The DSCP range can be between 0 to 63.
Select this option to Activate/Deactivated
the 802.1p. IEEE 802.1p establishes eight
levels of priority (0 ~ 7). Although network
managers must determine actual mappings,
IEEE has made broad recommendations.
Seven is the highest priority which is usually
assigned to network-critical traffic such as
Routing Information Protocol (RIP) and Open
Shortest Path First (OSPF) table updates. Five
and six are often for delay-sensitive applica-
tions such as interactive video and voice.
Data classes four through one range from
controlled-load applications such as stream-
ing multimedia and business-critical traffic
- carrying SAP data, for instance - down to
"loss eligible" traffic. Zero is used as a best-
effort default priority, invoked automatically
when no other value has been set
Select Low, Medium, High or Highest.
