SCAN 4-2 Instructions For Use Manual page 5

I N S T R U C T I O N S F O R U S E
CB Technology (Clean Burning)
Your wood-burning stove is fitted with CB technology. To ensure
optimum burning of the gases released by the burning process, air
is guided by a specially developed system. Pre-heated air is fed into
the combustion chamber through the small holes below the smoke
deflector plate. The airflow is driven by the combustion speed, and
cannot be regulated.
Primary air
The primary air regulation mechanism is used for lighting the fire, or
to boost the burning process when you put wood on. The primary air
vent can be 25-50% open if you use hard wood fuel such as oak and
beech. You can close the primary air vent if you use soft wood such
as birch or pine for fuel.
Secondary air
Secondary air is pre-heated and fed directly to the fire. At the same
time, the secondary airflow cleans the glass pane to avoid soot build-
up. If you over-restrict the secondary airflow, soot can build up on the
glass pane. The secondary airflow determines the heat output from
your wood stove.

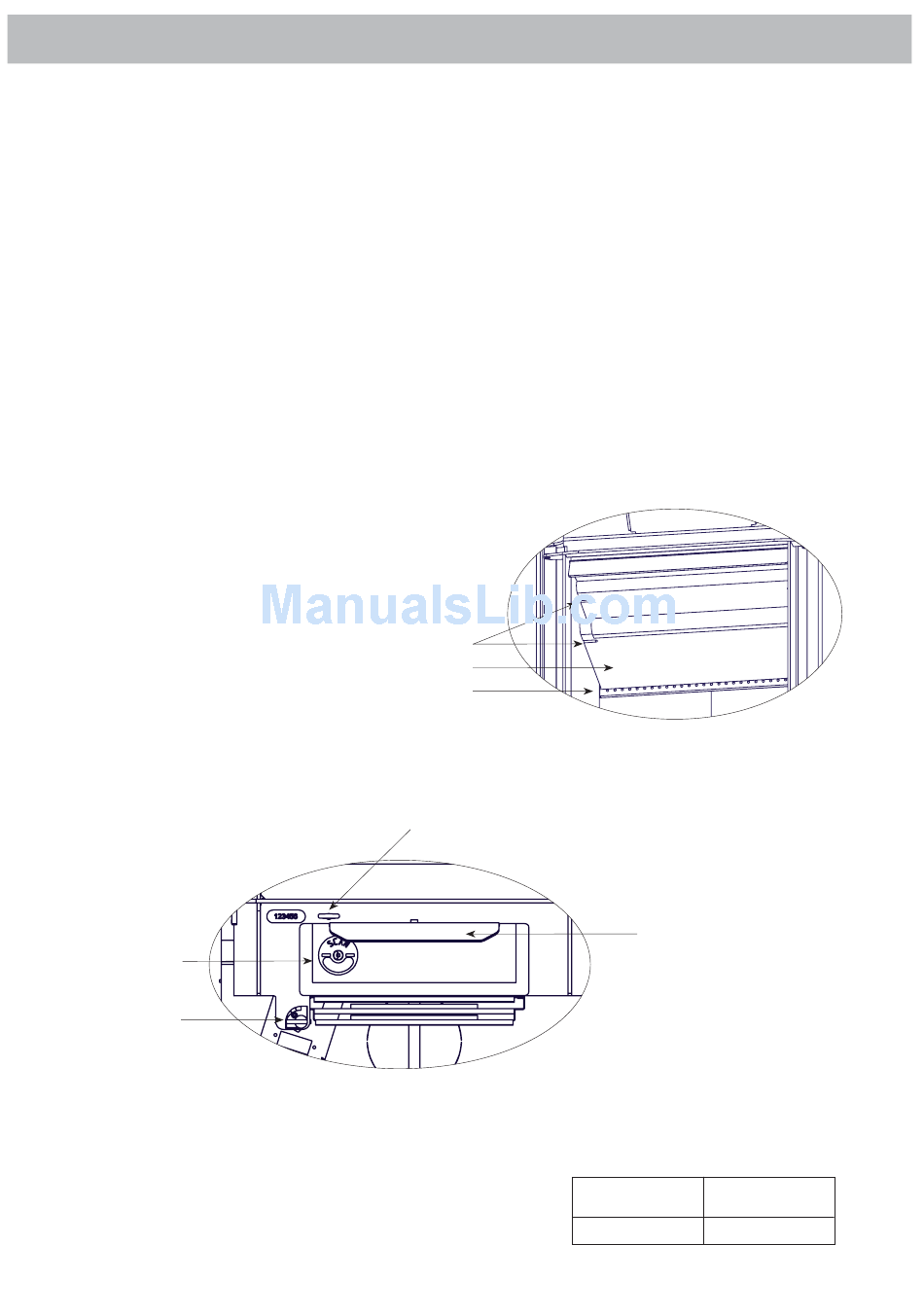

Primary air
Secondary air
Retaining pins for smoke
deflector platens
Smoke deflector plates
CB Technology
Handle for
riddling grate
Smoke deflector plates
The smoke deflector plates are located in the upper part of the com-
bustion chamber. The plates hold back smoke, making sure it stays
inside the combustion chamber for a longer time before escaping
through the chimney. This reduces the smoke gas temperature as
the gases have more time to dissipate heat to the wood stove. The
smoke deflector platens must be removed for sweeping; see „Wood-
burning stove maintenance". Note that the smoke deflector platens
are made of porous, ceramic material, and can break. Exercise care
when working. The smoke deflector plates are subject to wear and
tear, and are not covered by the warranty.
Ash pan
Open the glass door to access the ash drawer which is located below
the combustion chamber.
Keep the ash drawer closed at all times when the wood stove is lit.
Handle for riddling grate
Your wood stove is fitted with a riddling grate which empties the ash
from the combustion chamber into the ash drawer when activated.
The riddling grate must be in semi-open position while the wood-
burning stove is lit.
Ash pan
Setting for normal load
Secondary air %
75
5
Primary air %
50
