Installer Quick Start Guide
vs#: 010913
Preparation:
When Installing ClickShare you will:
•
Step 1 - unpack the components.
•
Step 2 - install the Base Unit.
•
Step 3 - connect the Base Unit to A/C and the display.
•
Step 4 - access the Base Unit Admin Functions Using a Browser.
•
Step 5 - configure the system via the Web Interface.
•
Step 6 - test the installation.
•
Step 7 - pair the Button to the Base Unit if needed.

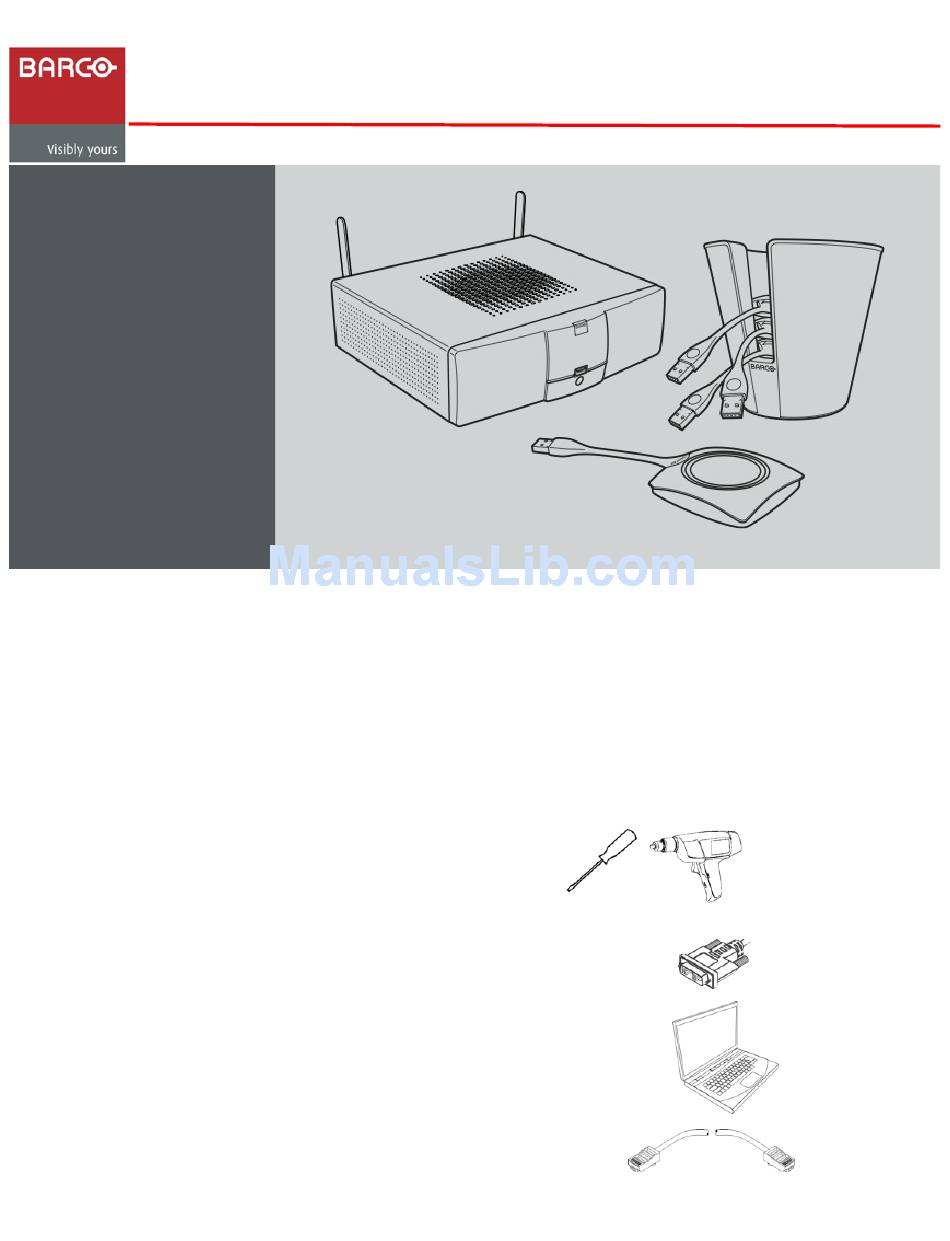

The tools you will need are:
•
For mechanical Install
✓ Torx 10 Screwdriver if wall, ceiling or rack mounting
✓ A drill if wall or ceiling mounting
✓ A screwdriver depending on your wall mounting screws
✓ The optional ClickShare Rack Mount Kit if installing in a rack
Order number: R9861006R01
•
For hookup to the display
✓ A video cable, which is DVI-i from the Base Unit going to the display input (variable)
✓ Optionally you can use the Display Port output on the Base Unit to the display input
•
For configuration of the system
✓ A laptop computer with WiFi for configuring the Base Unit
•
For Troubleshooting
✓ Two Ethernet cables for direct connect to the Base Unit though the local LAN
✓ An Ethernet cross-over adapter or cable to connect directly to the Base Unit.
