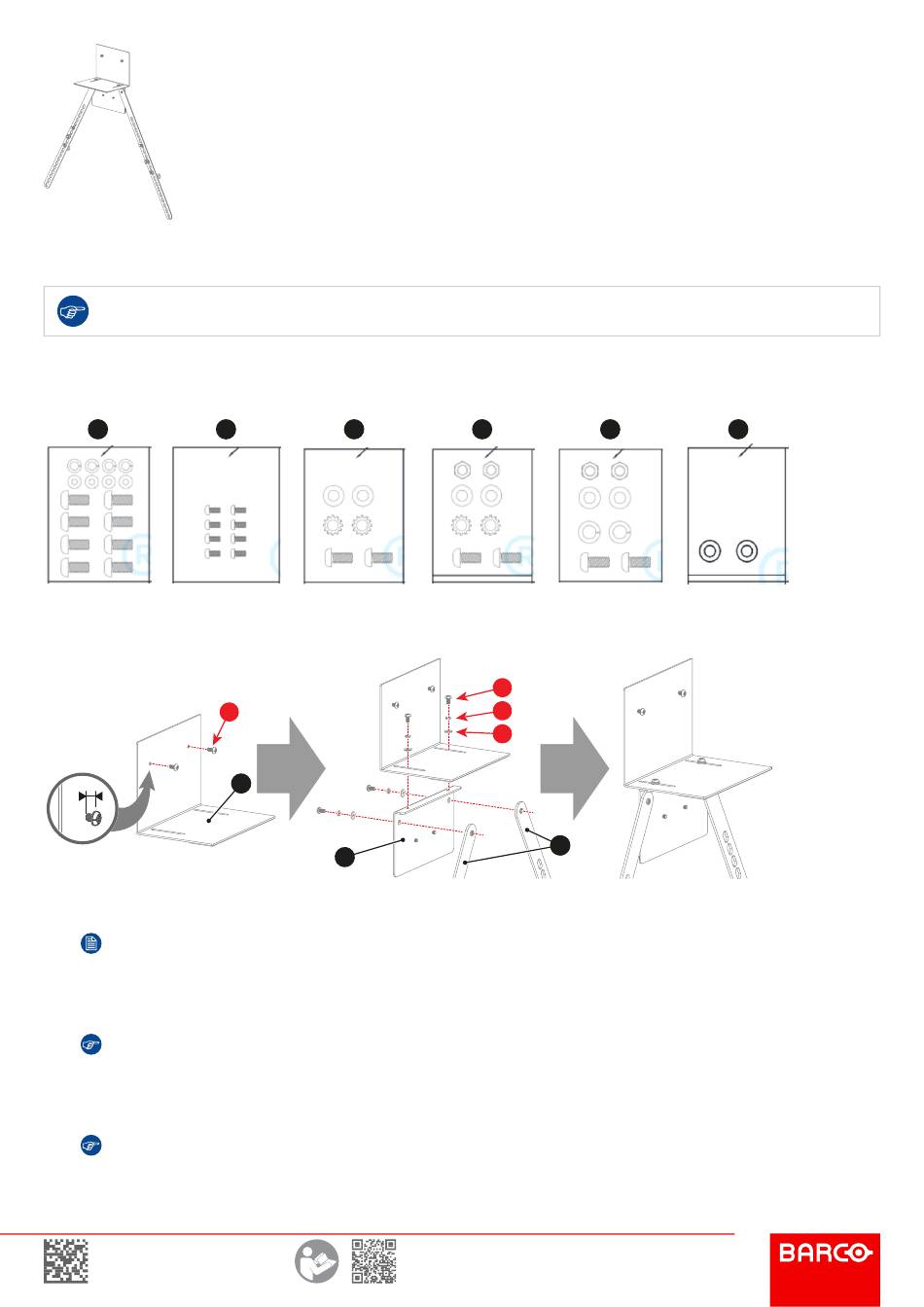

Included screw sets
Not all included screws will be needed!
Each set of screws is organized into individually labelled bags, as illustrated.
Keep the screws, spacers, washers and nuts from the same bag together at all times.
A
How to assemble for ClickShare Bar
5
1.
Insert two screws (reference 1) from bag B into the top plate (G).
Note: Leave a gap between the screw head and the top plate.
2.
Assemble the top plate (G) on top of the L-shape plate (F). Use two screws (reference 2), spacers
(reference 3) and washers (reference 4) from bag A as illustrated.
Tip: Allow for some play between the assembled parts.
3.
Assemble the two braces (H) on the L-shape plate (F). Use two screws (reference 2), spacers (reference 3)
and washers (reference 4) from bag A as illustrated.
Tip: Allow for some play between the assembled parts.
The TV mount is ready to be attached to the display.
R5917734 /01 | 2024-02-21
B
C
1
G
F
ClickShare
Quick start guide
D
D1
2
3
4
H
ENABLING BRIGHT OUTCOMES
TV mount
E
