1504 Barcode Scanner
Additional Fields
Up to five additional fields can be created for each editing format; each of them is numbered from
AF1 to AF5 accordingly.
If "Keyboard Wedge" or "USB HID" is configured for interface, Key Type and Key Status will
then become applicable. Decide whether to apply Key Status when "Normal Key" is selected for
Key Type.
Key Type
Scan Code Up to 2 scan code values are allowed.
Normal Key Up to 4 character strings are allowed.

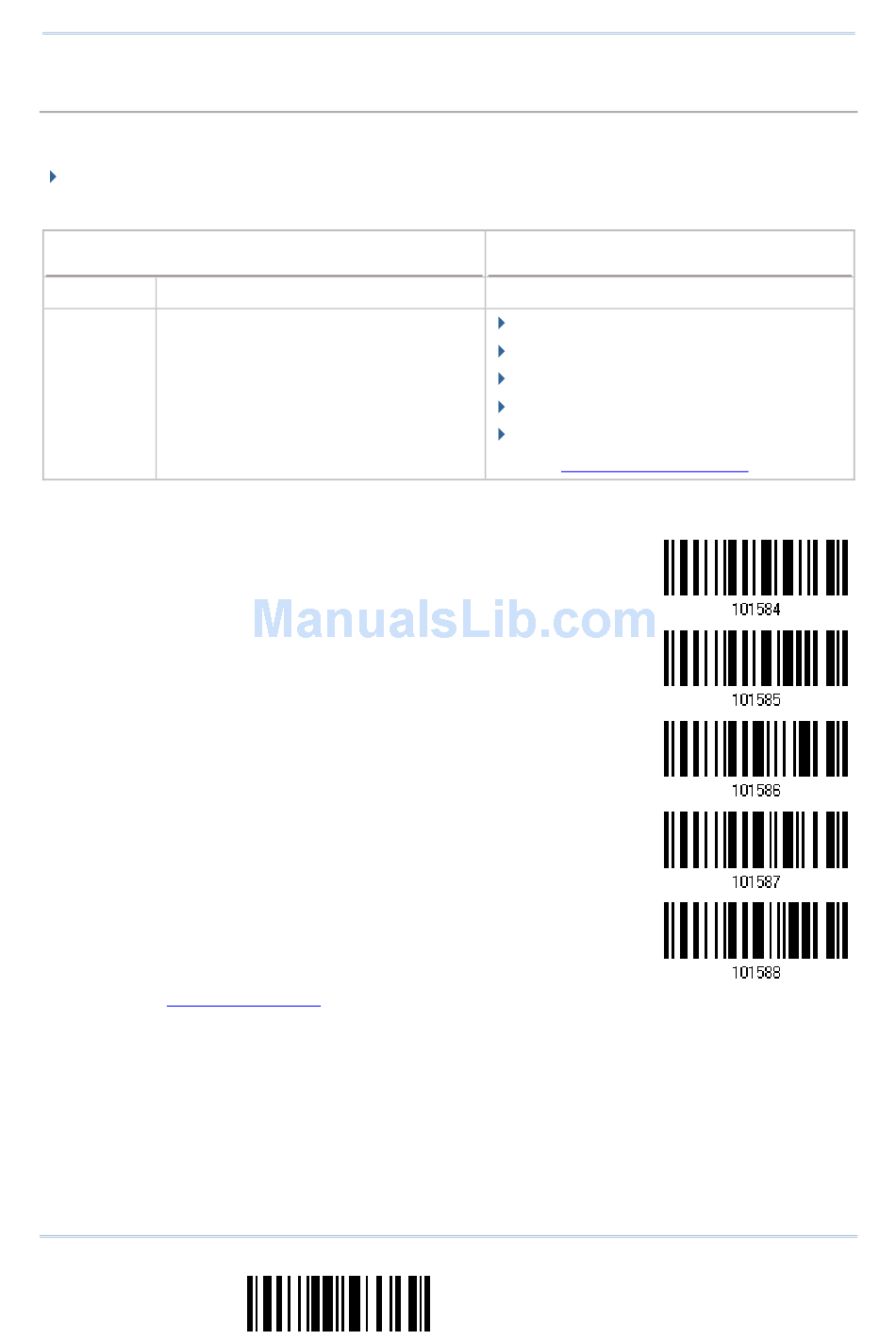

1. Read the barcode below to specify an additional field, one at a time.
2. Read the "Hexadecimal
3. Read the "Validate" barcode to complete this setting.
174
User Guide
Value" barcode on page 194 for the desired additional field.
Key Status
N/A
Add Shift
Add Left Ctrl
Add Left Alt
Add Right Ctrl
Add Right Alt
Refer to Keyboard Wedge
Additional Field 1...
Additional Field 2...
Additional Field 3...
Additional Field 4...
Additional Field 5...
End Programming Format
Table.
