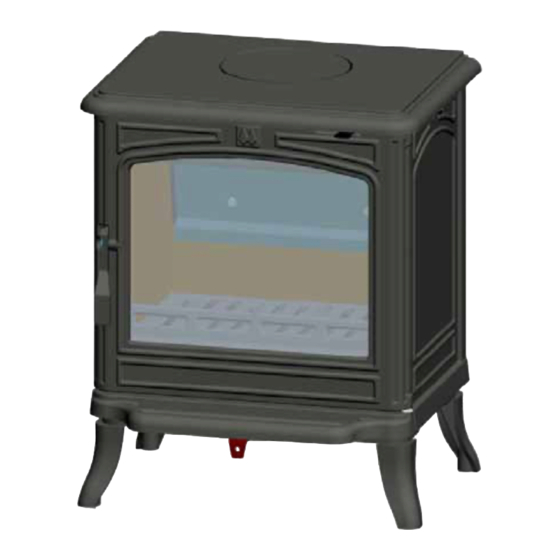

Montfort MK2
Wood burning stove
BS EN 13240
Model : 134 05 02
Nominal output : 4,8 kW
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Document n°1295-2 - 21/10/2009
Technical manual
to be saved
by the user
for future reference
STAUB FONDERIE
SARL with the capital of 10.000.000 €
Head Office Address
2, rue Saint Gilles
68230 TURCKHEIM
RCS de Colmar
SIREN 444 881 953
Address
Administration and manufacturing
BP 73
59660 MERVILLE (FRANCE)
Téléphone : 03 28 43 43 00
Fax : 03 28 43 43 99
Subject to modifications.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FRANCO BELGE Montfort MK2
Summary of Contents for FRANCO BELGE Montfort MK2
-
Page 1: Operating Instructions
Montfort MK2 Document n°1295-2 - 21/10/2009 Wood burning stove BS EN 13240 Model : 134 05 02 Nominal output : 4,8 kW Technical manual to be saved by the user for future reference STAUB FONDERIE SARL with the capital of 10.000.000 €... -
Page 2: Table Of Contents
FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Product Information
Log dimensions 1.5. Principle of operation - lenght maxi ........cm Ash pan capacity ........ litres The “Montfort MK2” is designed for operation with Net weight ..........kg the door closed. Heat is mainly diffused by radiation, Heated Volume ........m3 through the window and body of the appliance. -
Page 4: Installation Instructions
Montfort MK2 - Model 1340502 2. Installation instructions 2.1 Warning to the user Floor and walls Make sure that the floor can support the weight of the All the local and national regulations, and appliance, it's flue and any surround. The floor May... -
Page 5: Chimney Connector
Montfort MK2 - Model 1340502 If the appliance has to be located in an opening, this - The appliance must not support the weight of the distance must be extended to a minimum clearance flue. (A) of 550 mm from the pipe or the stove body to any - Consult a chimney specialist for advice on suitable combustible materials. -
Page 6: Pre-Utilisation Check
Montfort MK2 - Model 1340502 1 diameter lower than the flue spigot and be situated etc.), regular maintenance should be carried out. as distant as possible from the flue connection of the If the stove is regularly used, the chimney should appliance. -
Page 7: Instructions For User
Montfort MK2 - Model 1340502 3. Instructions for user Check for flue or chimney blockage, and clean if The manufacturer will not be responsible for required. any damage caused to the appliance due to the Do not attempt to relight the fire until the cause of the incorrect use or installation of the appliance e.g. -
Page 8: Maintenance Of The Stove
Montfort MK2 - Model 1340502 • Prohibited fuel : Homefire and any form of FUEL. IF THE GRATE OR ASH PAN ARE CONGESTED, bituminous coal or petroleum based coke. THE PERFOMANCE WILL BE EFFECTED. If burning solid fuel, always empty the ash pan at least once a day or whenever it is full of ashes. -
Page 9: Recommendations
Montfort MK2 - Model 1340502 3.6. Recommendations Warning ! It is quite normal for enamel surfaces to have a crackling appearence during the operation of the stove and these tend to disappear again once the This room heater is an appliance producing heat and stove has cooled down. -
Page 10: Trouble Shooting
Montfort MK2 - Model 1340502 3.8. Trouble Shooting : This sign means that you should ask for a qualified engineer to do the work. Probable causes Problem - ACTION Wood green...or damp Fire difficult to start Use hard wood logs, which have been cut for at... -
Page 11: Spare Parts
Example : Wood stove "Montfort MK2”, ref. 134 05 02 color C, top plate 352168 MK A = 134 05 02 Y ; B = 134 05 02 L ; C = 134 05 02 B ; D = 134 05 02 E ; E = 134 05 02 P ; F = 134 05 02 C N°... - Page 12 Montfort MK2 - Model 1340502 Figure 8 - Stove - exploded view Technical manual "1295"...
- Page 13 Montfort MK2 - Model 1340502 A = 134 05 02 Y ; B = 134 05 02 L ; C = 134 05 02 B ; D = 134 05 02 E ; E = 134 05 02 P ; F = 134 05 02 C N°...
- Page 14 Guarantee certificate Legal guarantee at the user’s cost. Moreover, if the repair or replacement of parts covered by the guarantee is found to be too costly vis- à-vis the price of the appliance, the decision to replace or The specifications, dimensions and information shown on our repair the appliance will be taken by the vendor.
