ARDENNES

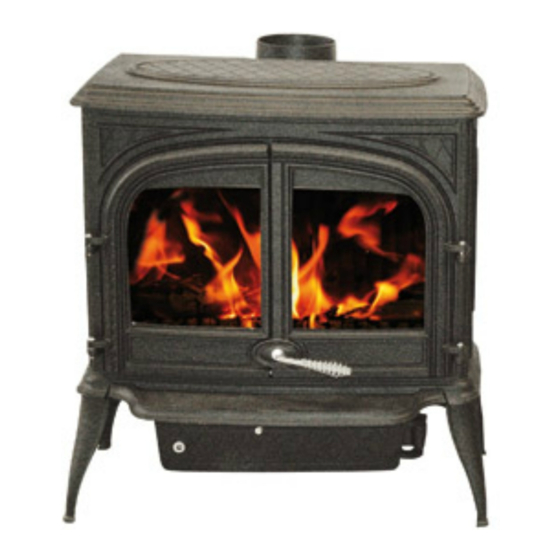

Wood stove

EN 13240
Model : 134 15 02
Output : 15 kW
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Document n° 1220-2 ~ 16/03/2007
FR
EN
NL
IT
Technical manual
to be saved
by the user
for future reference
STAUB FONDERIE
SARL with the capital of 6 359 540
Head Office Address
2, rue Saint Gilles
68230 TURCKHEIM
RCS Colmar
SIREN 444 881 953
Address
Administration and manufacturing
BP 73
59660 MERVILLE (FRANCE)
Telephone : 00 333 28 43 43 00
Fax : 00 333 28 43 43 99
Subject to modifications.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARDENNES 134 15 02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FRANCO BELGE ARDENNES 134 15 02

  • Page 1: Wood Stove

    ARDENNES Document n° 1220-2 ~ 16/03/2007 Wood stove EN 13240 Model : 134 15 02 Technical manual Output : 15 kW to be saved by the user for future reference STAUB FONDERIE Description of the appliance SARL with the capital of 6 359 540 Head Office Address 2, rue Saint Gilles Installation instructions...
  • Page 2: Table Of Contents

    FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products.
  • Page 3: Description Of The Unit

    “ARDENNES” - model 134 15 02 Description of the unit This appliance is meant to burn wood safely WARNING Incorrectly installed, this appliance can be dangerous and possibly cause serious accidents. We recommend that you engage the services of a professional engineer for its installation and the regular maintenance requirements.
  • Page 4: Installation Instructions

    “ARDENNES” - model 134 15 02 Installation instructions 2 Installation instructions 2.1 Warning to the user to the loading door. When using a single wall flue pipe, there must be a clearance (A) of at least three times its diameter (B) from any combustible materials. If the All the local and national regulations, and in appliance has to be located in an opening, this distance particular those relating to national and European...
  • Page 5: Mounting The Tray

    “ARDENNES” - model 134 15 02 Installation instructions 1 8 0 ° Figure 3 - Mounting the tray causing condensation problems (tar formation etc) to occur. The flue must be watertight. The flue must not be shared with other appliances. The chimney must have a constant cross section.
  • Page 6: Chimney Connector

    “ARDENNES” - model 134 15 02 Installation instructions 2.6 Chimney connector 2.7 Pre-utilisation check The connection to flue must be carried out according Check that the seals of the smoke-line are in good to local building regulations. condition. Check that the door closes correctly. Check that the glass is not damaged.
  • Page 7: Instructions For User

    “ARDENNES” - model 134 15 02 Instructions for user 3 Instructions for user The manufacturer will not be responsible for damages “Green wood”. Green or damp wood reduces the appliance efficiency and soils the glass, the internal on parts of the appliance due to the use of prohibited walls and the flue (soot, tar, etc.).
  • Page 8: Maintenance Of The Chimney

    7). re-sprayed / touched up using a stove paint. These Nominal Heat Output : products are available from your Franco Belge Dealer. Primary air control flap (rep. B) close. 3.7 Safety advice Secondary air control flap (rep. C) open.
  • Page 9: Trouble Shooting

    “ARDENNES” - model 134 15 02 Instructions for user 3.8 Trouble shooting þ : This sign means that you should ask for a qualified engineer to do the work. Situation Probable causes Corrective action Fire difficult to start. Fire goes Wood green…...
  • Page 10: Spare Parts

    “ARDENNES” - model 134 15 02 Spare parts 4 Spare parts When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee or identification plate), the name of the part and the part number. Example : Wood stove “ARDENNES”, model 134 15 02, the colour index Y, top plate 352126 EF Y = 134 15 02 Y B = 134 15 02 B...
  • Page 11 “ARDENNES” - model 134 15 02 Spare parts Figure 6 - Spare parts view Technical manual “1220”...
  • Page 12 “ARDENNES” - model 134 15 02 Spare parts Y = 134 15 02 Y B = 134 15 02 B E = 134 15 02 E N = 134 15 02 N L = 134 15 02 L P = 134 15 02 P C = 134 15 02 C Q = 134 15 02 Q N°...
  • Page 13 “ARDENNES” - model 134 15 02 Spare parts Y = 134 15 02 Y B = 134 15 02 B E = 134 15 02 E N = 134 15 02 N L = 134 15 02 L P = 134 15 02 P C = 134 15 02 C Q = 134 15 02 Q N°...
  • Page 14 § Guarantee certificate § our “Guarantee Inspection” Department. Carriage and Legal guarantee § labour is at the user’s cost. Moreover, if the repair or The specifications, dimensions and information shown replacement of parts covered by the guarantee is found on our documents are provided for information purposes to be too costly vis-à-vis the price of the appliance, the only and under no circumstances are binding upon the decision to replace or repair the appliance will be taken...
