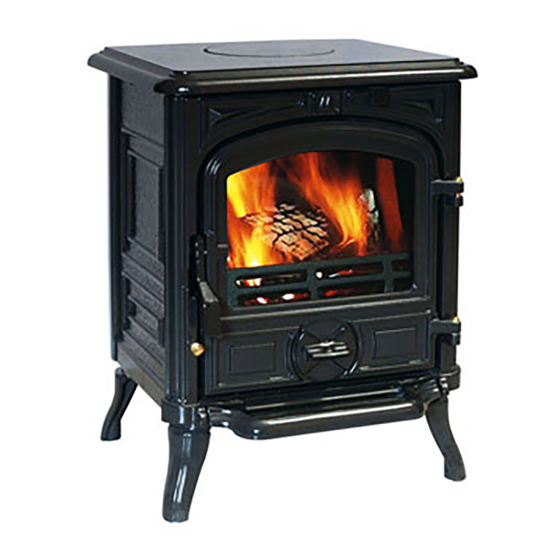

MONTFORT
Wood stove
NF EN 13240
Model : 134 06 01
Output : 6 kW
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Document n° 1159-2 ~ 09/12/2003
FR EN NL
Technical manual
to be saved
by the user
for future reference
STAUB FONDERIE
Head Office Address
2, rue Saint Gilles
68230 TURCKHEIM
RC Colmar
SIREN 439 330 325
Address - Administration and
manufacturing
BP 73
59660 MERVILLE (FRANCE)
Telephone : 00 333 28 43 43 43
Fax : 00 333 28 43 43 99
Subject to modifications.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FRANCO BELGE MONTFORT 134 06 01
Summary of Contents for FRANCO BELGE MONTFORT 134 06 01
- Page 1 MONTFORT Document n° 1159-2 ~ 09/12/2003 FR EN NL Wood stove NF EN 13240 Model : 134 06 01 Output : 6 kW Technical manual to be saved by the user for future reference STAUB FONDERIE Description of the appliance Head Office Address Installation instructions 2, rue Saint Gilles...
-
Page 2: Table Of Contents
FRANCO BELGE, which has been granted the ISO 9001 certification, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 75-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Description Of The Unit
“MONTFORT” - réf. 134 06 01 Description of the unit This appliance is meant to burn wood or solid fuel safely WARNING Incorrectly installed, this appliance can be dangerous and possibly cause serious accidents. 1. Description of the unit 1.1. Package 1.4. -
Page 4: Installation Instructions
“MONTFORT” - réf. 134 06 01 Installation instructions 2. Installation instructions 2.1. Warning to the user An incorrectly installed heating appliance can cause serious accidents (chimney fires, burning of plastic insulation materials, in partition walls, etc.). # The insulation of both the appliance and the exhaust gas pipe has to be reinforced and done according to the Standards and the Building Regulations for safety # ... -
Page 5: Smoke Exit At Rear
“MONTFORT” - réf. 134 06 01 Installation instructions 2.5. Smoke exit on the top Figure 4 • Remove the internal baffle (fig. 3). • Fit the sealing rope in the groove on the top and fix the flue collar with the bolts and washers supplied. •... -
Page 6: Pre-Utilisation Check
“MONTFORT” - réf. 134 06 01 Installation instructions The connection pipe and any draught stabiliser must have access for cleaning. The spigot should be connected to a minimum of 125 mm flue system and in that case the appliance is capable of burning untreated wood and recommended solid fuels. -
Page 7: Instructions For User
“MONTFORT” - réf. 134 06 01 Instructions for user 3. Instructions for user 3.1. Fuel The manufacturer will not be responsible for damages on parts of the appliance due to the use of prohibited fuel or due to an alteration of the appliance or its •... -
Page 8: Cleaning
“MONTFORT” - réf. 134 06 01 Instructions for user Figure 8 - Removing thefuel retainer 3.3. Instructions for use with solid fuel 3.3.1. lighting O s c i l l a t i n g • Slide the top air control (# B1) to the right. Open the g r a t e lower spin wheel. -
Page 9: Recommendations
“MONTFORT” - réf. 134 06 01 Instructions for user Warning! The appearance of cracks when burning the The stove may still be hot even when fire has enamelled units is quite usual and tends to disappear burnt out. when the appliance is cooling down. It should not be considered as a defect but rather as a patina of the 3.7. - Page 10 “MONTFORT” - réf. 134 06 01 Notes Notice de référence “1159”...
-
Page 11: Spare Parts
“MONTFORT” - réf. 134 06 01 Spare parts 4. Spare parts Example : When ordering spare parts, specify the stove type and - Wood stove MONTFORT, serial number, including the colour index (on the - réf. 134 06 01 C, guarantee or identification plate), the name of the part - Top plate 352168 MK. - Page 12 “MONTFORT” - réf. 134 06 01 Spare parts Figure 10 - Vue éclatée de l’appareil Notice de référence “1159”...
- Page 13 “MONTFORT” - réf. 134 06 01 Spare parts N° Code Designation ....Type ... Y . . . J . . . L . . . C . . . I ..Qty 327906 Tray .
- Page 14 FRANCO BELGE. * Name and address of the installer : _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
