ARDENNES
Document n° 1146-14
25/03/2011
FR NL EN
IT
ES

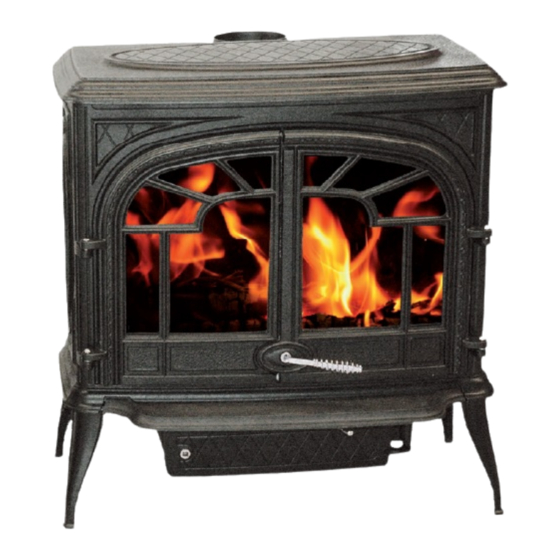

Wood stove
EN 13240
Model : 134 13 15
Output : 11 kW
Technical manual
to be saved
by the user
for future reference
Description of the appliance
FRANCO BELGE
Installation instructions
Rue Orphée Variscotte
59660 MERVILLE (FRANCE)
Operating instructions
Telephone : 00 333 28 43 43 22
Fax : 00 333 28 43 43 60
Spare parts
Warranty certificate
Subject to modifications.
Advertisement
Table of Contents
Related Manuals for FRANCO BELGE Ardennes 134 13 15
Summary of Contents for FRANCO BELGE Ardennes 134 13 15
-
Page 1: Wood Stove
Output : 11 kW Technical manual to be saved by the user for future reference Description of the appliance FRANCO BELGE Installation instructions Rue Orphée Variscotte 59660 MERVILLE (FRANCE) Operating instructions Telephone : 00 333 28 43 43 22 Fax : 00 333 28 43 43 60... -
Page 2: Table Of Contents
FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Description Of The Unit
“ARDENNES” - model 134 13 15 Description of the unit This appliance is meant to burn wood safely WARNING Incorrectly installed, this appliance can be dangerous and possibly cause serious accidents. We recommend that you engage the services of a professional engineer for its installation and the regular maintenance requirements. -
Page 4: Installation Instructions
“ARDENNES” - model 134 13 15 Installation instructions 2 Installation instructions 2.1 Warning to the user when the non-combustible wall is at least 200 mm thick. There should ideally be a minimum gap of 300 mm at All the local and national regulations, and in the right hand side of the stove, this will ensure the best particular those relating to national and European possible access to the loading door. -
Page 5: Chimney Connector
“ARDENNES” - model 134 13 15 Installation instructions 180° Figure 3 - Mounting the flue collar Figure 4 - Mounting the tray E n s u r e t h a t t h e h e a r t h ( s u p e r i m p o s e d o r anti-down draught cowl must be installed on the constructional) is suitably delineated to discourage chimney or the chimney height must be increased. -
Page 6: Mounting The Tray
“ARDENNES” - model 134 13 15 Installation instructions 2.6 Mounting the tray 2.8 Maintenance of the Chimney To avoid damage during transport, the tray has been Very important : In order to avoid any incident stored behind the main door (figure 4). (chimney fire, etc...), maintenance tasks must be carried out regularly. -
Page 7: Instructions For User
“ARDENNES” - model 134 13 15 Instructions for user 3 Instructions for user The manufacturer will not be responsible for damages “Green wood” ; green or damp wood reduces the appliance efficiency and soils the glass, the internal on parts of the appliance due to the use of prohibited walls and the flue (soot, tar, etc...). -
Page 8: Maintenance Of The Chimney
/ touched up using a stove paint. These Empty the ashes when the appliance is cold. products are available from your Franco Belge Dealer. Pick up the ash pan using a tool. Empty the ashes carefully with regard to the live 3.7 Safety advice... -
Page 9: Trouble Shooting
“ARDENNES” - model 134 13 15 Instructions for user 3.8 Trouble shooting þ : This sign means that you should ask for a qualified engineer to do the work. Probable causes Corrective action Situation Wood green… or too damp Use hard wood logs, which have been cut for at least Fire difficult to start. -
Page 10: Spare Parts
“ARDENNES” - model 134 13 15 Spare parts 4 Spare parts When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee or identification plate), the name of the part and the part number. Example : Wood stove “ARDENNES”, model 134 13 15, the colour index Y, top plate 352165 EF. - Page 11 “ARDENNES” - model 134 13 15 Spare parts Figure 6 - Spare parts view Technical manual “1146”...
- Page 12 “ARDENNES” - model 134 13 15 Spare parts Y = 134 13 15 Y B = 134 13 15 B E = 134 13 15 E N = 134 13 15 N L = 134 13 15 L P = 134 13 15 P C = 134 13 15 C Q = 134 13 15 Q N°...
- Page 13 “ARDENNES” - model 134 13 15 Spare parts Y = 134 13 15 Y B = 134 13 15 B E = 134 13 15 E N = 134 13 15 N L = 134 13 15 L P = 134 13 15 P C = 134 13 15 C Q = 134 13 15 Q N°...
- Page 14 Color : Serial number : ___ ___ ___ ___ ___ ___ • This certificate has to be completed and kept carefully. In case of claims, send a copy of this to : FRANCO BELGE, Rue Orphée Variscotte, 59660 MERVILLE, FRANCE.
