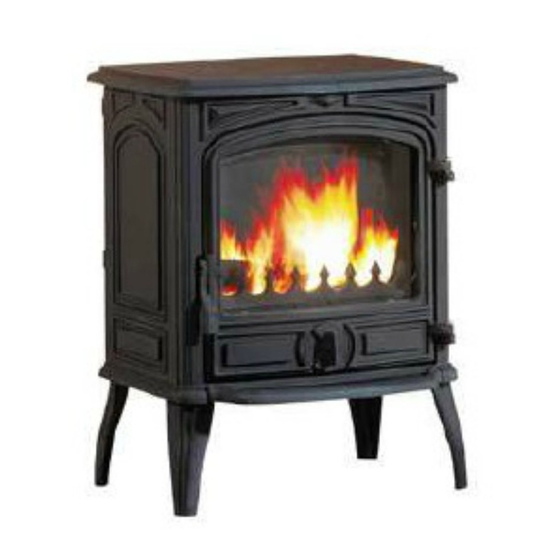

Wood stove
EN 13240
Model : 134 08 03
Technical manual
Output : 8 kW
to be saved
by the user
for future reference
STAUB FONDERIE
Description of the appliance
SARL with the capital of 6 359 540
Head Office Address
2, rue Saint Gilles
Installation instructions
68230 TURCKHEIM
RCS Colmar
SIREN 444 881 953
Operating instructions
Address
Administration and manufacturing
Spare parts
BP 73
59660 MERVILLE (FRANCE)
Telephone : 00 333 28 43 43 00
Warranty certificate
Fax : 00 333 28 43 43 99
Subject to modifications.
Advertisement
Table of Contents
Related Manuals for FRANCO BELGE SAVOIE 134 08 03
Summary of Contents for FRANCO BELGE SAVOIE 134 08 03
-
Page 1: Wood Stove
SAVOIE Document n° 957-16 ~ 15/12/2006 PT EN Wood stove EN 13240 Model : 134 08 03 Technical manual Output : 8 kW to be saved by the user for future reference STAUB FONDERIE Description of the appliance SARL with the capital of 6 359 540 Head Office Address 2, rue Saint Gilles Installation instructions... -
Page 2: Table Of Contents
FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Product Information
“SAVOIE” - model : 134 08 03 Product information This appliance is meant to burn wood safely Warning An incorrectly installed wood stove can cause serious accidents. We recommend that you engage the services of a professional engineer for its installation and the regular maintenance requirements 1. -
Page 4: Installation Instructions
“SAVOIE” - model : 134 08 03 Installation instructions 2. Installation instructions 2.1. Warning to the user There must be a clearance of at least 150 mm at each side of the appliance and at the back of the appliance from a non-combustible wall. -
Page 5: Chimney
“SAVOIE” - model : 134 08 03 Installation instructions Flue collar Clamp Sealing rope Back panel Blanking plate Figure 3 - Smoke exit on the top 2.3. Chimney The chimney must comply with Current Building Regulations. If in doubt, consult your Dealer or local Building Inspector. -
Page 6: Mounting The Tray
“SAVOIE” - model : 134 08 03 Installation instructions Remove the retainer fuel (fig. 8, p. 7), the two side bricks # 23 and 24 p. 15) and the flue baffle (fig. 7, p. 6). Remove the blanking plate 3 and the clamp 4 and assembly in the top, ensuring there is a good seal. -
Page 7: Pre-Utilisation Check
“SAVOIE” - model : 134 08 03 Installation instructions 2.8. Pre-utilisation check Check that the glasses are not damaged. Check that the smoke passages are not obstructed by packaging or removable parts. Check that the seals of the smoke-line are in good condition. -
Page 8: Instructions For User
“SAVOIE” - model : 134 08 03 Instructions for user 3. Instructions for user The manufacturer will not be responsible for damages Hardwood has a higher calorific value per cu metre (oak, ash, maple, birch, elm, beech, etc.). on parts of the appliance due to the use of prohibited fuel or due to an alteration of the appliance or its Large logs must be split and cut to a usable length, installation. -
Page 9: Maintenance Of The Stove Body
/ touched up using a stove paint. These The minimum reloading interval for nominal heat products are available from your Franco Belge Dealer. output is 1.5 hours. • Check that there are no obstructions before relighting after a long period of disuse. -
Page 10: Recommendations
“SAVOIE” - model : 134 08 03 Instructions for user 3.8. Recommendations This room heater is a high heat producing appliance and may cause severe burns if touched on the glass front door, or on top directly over the burner The stove may still be hot even when fire has burnt out. - Page 11 “SAVOIE” - model : 134 08 03 Note Note Technical manual “957”...
-
Page 12: Spare Parts
“SAVOIE” - model : 134 08 03 Spare parts 4. Spare parts When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee or identification plate), the name of the part and the part number. Example : Wood stove “SAVOIE”, ref. - Page 13 “SAVOIE” - model : 134 08 03 Spare parts A = 134 08 03 Y ; B = 134 08 03 J ; C = 134 08 03 L ; D = 134 08 03 D E = 134 08 03 C ; F = 134 08 03 N ; G = 134 08 03 Q N°...
- Page 14 “SAVOIE” - model : 134 08 03 Spare parts A = 134 08 03 Y ; B = 134 08 03 J ; C = 134 08 03 L ; D = 134 08 03 D E = 134 08 03 C ; F = 134 08 03 N ; G = 134 08 03 Q N°...
- Page 15 “SAVOIE” - model : 134 08 03 Spare parts Figure 10 - Spare parts view Technical manual “957”...
- Page 16 § Guarantee certificate § § labour is at the user’s cost. Moreover, if the repair or Legal guarantee replacement of parts covered by the guarantee is found The specifications, dimensions and information shown to be too costly vis-à-vis the price of the appliance, the on our documents are provided for information purposes decision to replace or repair the appliance will be taken only and under no circumstances are binding upon the...
