LIMOUSIN
Document n° 1054-2 ~ 13/12/2000

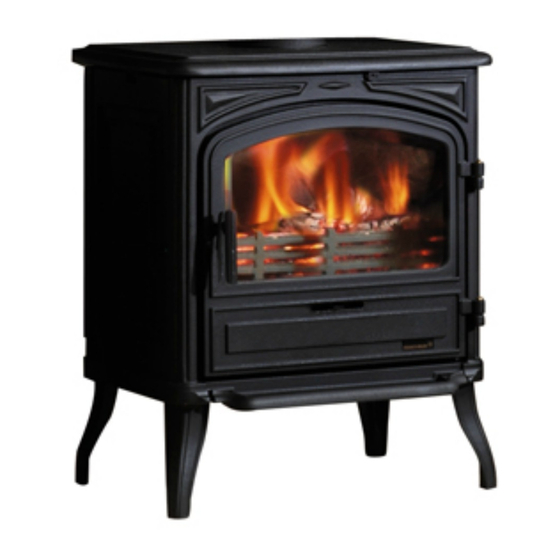

Wood stove
C G B f D - NF D 35-376
Model : 134 10 12
Output : 10 kW
Technical manual
to be saved
by the user
for future reference
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Les Fonderies Franco-Belges
59660 MERVILLE
Phone : 03.28.43.43.43
Warranty certificate
Fax : 03.28.43.43.99
RC Hazebrouck 445750565B
Subject to modifications
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FRANCO BELGE Limousin
Summary of Contents for FRANCO BELGE Limousin

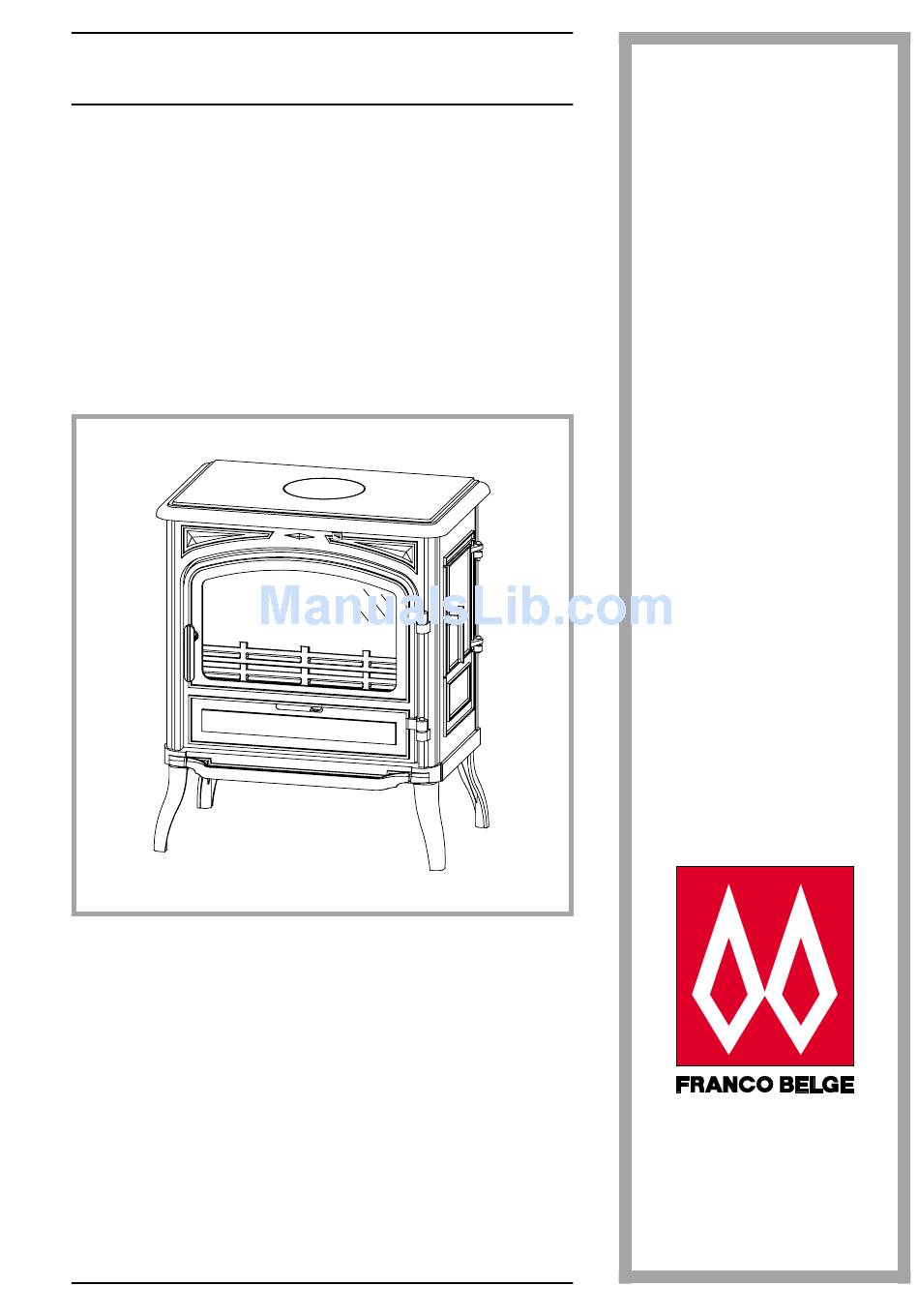

- Page 1 LIMOUSIN Document n° 1054-2 ~ 13/12/2000 Wood stove C G B f D - NF D 35-376 Model : 134 10 12 Output : 10 kW Technical manual to be saved by the user for future reference Description of the appliance...
-
Page 2: Table Of Contents
FRANCO BELGE, which has been granted the ISO 9001 certification, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 75-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Product Information
- Lenght ....The “ Limousin ” is designed for operation with the door - Diameter .... -
Page 4: Installation Instructions
Wood stove Installation instructions "LIMOUSIN" 2. Installation instructions 2.1. The room The flue must not be shared with other appliances. The recommended minimum flue height is 5 metres. Ventilation : If the chimney has any down draught tendency, due to... -
Page 5: Connection To Flue
"LIMOUSIN" Installation instructions Wood stove Figure 5 - Mounting the tray products (e.g. stainless steel 1 mm thick, 20g, or vitreous enamel.). Pipe diameter must not be less than the appliance 1 - Flue collar 4 - Top plate spigot diameter. -
Page 6: Instructions For User
Wood stove Instructions for user "LIMOUSIN" 3. Instructions for user 3.1. Fuel • Not recommended as fuel : “Green wood”. Green or damp wood reduces stove efficiency and soils the glass, the internal walls and • Recommended fuel : Wood with the grate provided the flue (soot, tar, etc.). -
Page 7: Instruction For Use With Wood
Light the newspaper or firelighters using a long taper re-sprayed / touched up using a stove paint. These and close the door. products are available from your Franco Belge Dealer. • When the fire is burning fiercely, add further fuel. -
Page 8: Trouble Shooting
Wood stove Instructions for user "LIMOUSIN" 3.6. Trouble Shooting þ : This sign means that you should asked for a qualified engineer to do the work. Problem Probable causes Action Fire difficult to start Wood green, too damp or poor Use the recommended fuel. - Page 9 "LIMOUSIN" Instructions for user Wood stove Notes Technical manual...
-
Page 10: Spare Parts
Wood stove Spare parts "LIMOUSIN" 4. Spare parts When ordering spare parts, specify the stove type and and the part number. serial number, including the colour index (on the Example : Wood stove, réf. 134 10 12 Y, top plate guarantee or identification plate), the name of the part 352124 EF. - Page 11 "LIMOUSIN" Stove - exploded view Wood stove " " ! & " ! & ! " & ! & & & " " " " " " $ " " # " ! Figure 7 - Stove - exploded view...
- Page 12 This warranty is only valid if : manual does not engage the responsibility of - The unit has been installed and checked by a professional FRANCO BELGE. installer before operating, - All installation and adjustment instructions listed in the Name and address of the installer :...
