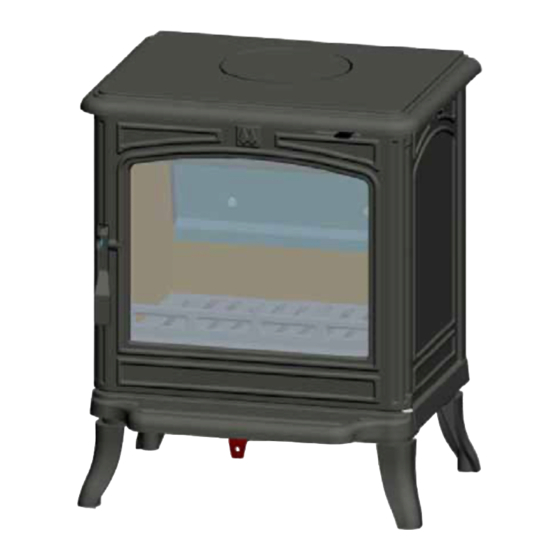

Montfort MK2
Document n°1295-10 - 20/03/2012
Multifuel stove
EN 13240
Model : 134 05 02
Nominal output : 5 kW
Technical manual
to be saved
by the user
for future reference
Description of the appliance
Installation instructions
Parc d'activités de la Verte Rue
Allée des Prêles
Operating instructions
59270 BAILLEUL
Tél. : 03 28 40 32 50
Spare parts
Warranty certificate
Subject to modifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Montfort MK2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FRANCO BELGE Montfort MK2

Summary of Contents for FRANCO BELGE Montfort MK2

  • Page 1 Montfort MK2 Document n°1295-10 - 20/03/2012 Multifuel stove EN 13240 Model : 134 05 02 Nominal output : 5 kW Technical manual to be saved by the user for future reference Description of the appliance Installation instructions Parc d’activités de la Verte Rue Allée des Prêles...
  • Page 2 DRAFT 24 Jul 2013 USER MANUAL FOR STOVES WITHOUT BOILERS SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET These instructions together with those in the instruction booklet cover the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
  • Page 3 DRAFT 24 Jul 2013 Metal Parts When installing or servicing this stove care should be taken to avoid the possibility of personal injury. STOVE PERFORMANCE Refer to the manufacturer’s main instruction manual for details of the stove’s performance. PREPARATORY WORK AND SAFETY CHECKS IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance.
  • Page 4 DRAFT 24 Jul 2013 Hearth The hearth should be level and able to accommodate the weight of the stove and its chimney if the chimney is not independently supported. The weight of the stove is indicated in the brochure. The stove should preferably be installed on a non-combustible hearth of a size and construction that is in accordance with the provisions of the current Building Regulations Approved Document J.
  • Page 5 DRAFT 24 Jul 2013 USER MANUAL FOR STOVES WITHOUT BOILERS SUPPLEMENTARY OPERATING INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET WARNING NOTE Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fuelling may occur.
  • Page 6 DRAFT 24 Jul 2013 In situations where it is not possible to sweep through the stove the installer will have provided alternative means, such as a soot door. After sweeping the chimney the stove flue outlet and the flue pipe connecting the stove to the chimney must be cleaned with a flue brush. Periods of Prolonged Non-Use If the stove is to be left unused for a prolonged period of time then it should be given a thorough clean to remove ash and unburned fuel residues.

  • Page 7: Table Of Contents

    FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products.

  • Page 8: Product Information

    Ash pan capacity ........ litres 1.5. Principle of operation Net weight ..........kg Heated Volume ........m3 The “Montfort MK2” is designed for operation with Efficiency ..........% closed door. Heat is mainly diffused by radiation, Co (13% O2) .........% 0,13 through the window and body of the appliance.

  • Page 9: Installation Instructions

    Montfort Mk2 - Model 1340502 2. Installation instructions 2.1 Warning to the user available in the room for combustion. Il a VMC (controlled mechanical ventilation) is present, the All the local and national regulations, and room pressure will be low and a non-closing external...
  • Page 10 Montfort Mk2 - Model 1340502 There must be a clearance of at least 150 mm at each - In case of a flat roof or when the roof gradient is side of the appliance and at the back of the appliance lower than 15°, the stack must be 1,2 m (4 feet) high...

  • Page 11: Chimney Connector

    Montfort Mk2 - Model 1340502 2.7. Chimney connector 2.10. Maintenance of the Chimney The connection to flue must be carried out Very important : To avoid accidents (chimney fire, according to local building regulations. etc.), regular maintenance should be carried out.
  • Page 12 Montfort Mk2 - Model 1340502 Figure 5b Figure 5a Figure 5c Figure 5d Figure 5 - Replacing the parts Technical manual "1295"...

  • Page 13: Instructions For User

    Montfort Mk2 - Model 1340502 3. Instructions for user Do not attempt to relight the fire until the cause of the The manufacturer will not be responsible for fume emission has been identified and corrected. If any damage caused to the appliance due to the necessary seek expert advice.

  • Page 14: Maintenance Of The Chimney

    Montfort Mk2 - Model 1340502 Not recommended as fuel : • Lay firelighters or rolled up newspapers on the grate with a reasonable quantity, if necessary, of dry kindling • “green wood”. Green or damp wood reduces stove wood. Place a small quantity of solid fuel on top.
  • Page 15 Montfort Mk2 - Model 1340502 • Remove all deposits from the combustion chamber • The appliance must not be used with a flue serving and clean the grate area. several appliances. • The glass should be cleaned with a solft cloth or •...

  • Page 16: Trouble Shooting

    Montfort Mk2 - Model 1340502 3.8. Trouble Shooting : This sign means that you should ask for a qualified engineer to do the work. Probable causes Problem - ACTION Wood green...or damp Fire difficult to start Use hard wood logs, which have been cut for at...

  • Page 17: Spare Parts

    Example : multifuel stove "Montfort MK2”, ref. 134 05 02 color C, top plate 352168 MK A = 134 05 02 Y ; B = 134 05 02 L ; C = 134 05 02 B ; D = 134 05 02 E ; E = 134 05 02 P ; F = 134 05 02 C N°...
  • Page 18 Montfort Mk2 - Model 1340502 Figure 8 - Stove - exploded view Technical manual "1295"...
  • Page 19 Montfort Mk2 - Model 1340502 A = 134 05 02 Y ; B = 134 05 02 L ; C = 134 05 02 B ; D = 134 05 02 E ; E = 134 05 02 P ; F = 134 05 02 C N°...
  • Page 20 Montfort Mk2 - Model 1340502 Notes Technical manual "1295"...
  • Page 21 • This certificate has to be completed and kept carefully. In case of claims, send a copy of this to : FRANCO BELGE - BOUTIQUES DU FEU Parc d'activités de la Verte Rue - Allée des Prêles - 59270 BAILLEUL - FRANCE...

Table of Contents
