Array Configuration Utility Screens

Main Configuration Screen

The main configuration screen is the first screen that displays after the
configuration wizard finishes. Some areas are highlighted and some appear
gray. You cannot select gray areas until you select an item in the
Configuration View box providing that option.

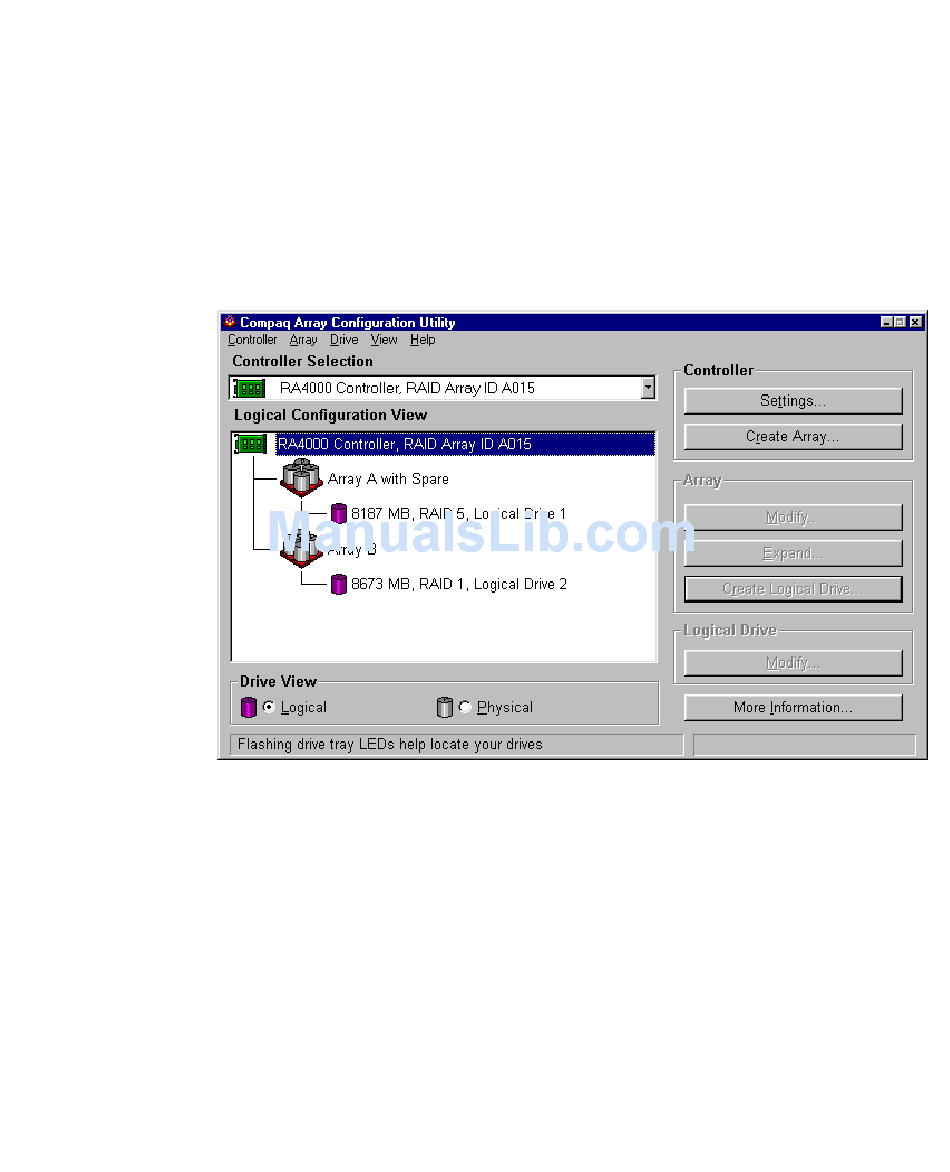

Figure 5-14. Main Configuration screen
Main Configuration Screen Contents
The menu bar contains the following pull-down menus:
I
Controller—Use to select a controller, save a configuration, create an
array, and exit the program.
I
Array—Use to delete, modify, or expand the capacity of an array, and to
create logical drives and view array information.
I
Drive—Use to delete or modify logical drives and view drive
information.
I
View—Use to switch between the Physical Drive View and the Logical
Drive View in the configuration list box.
