NOTE: The Extend Logical Drive screen displays the current capacity and RAID overhead
of the selected logical drive (Figure 5-11).

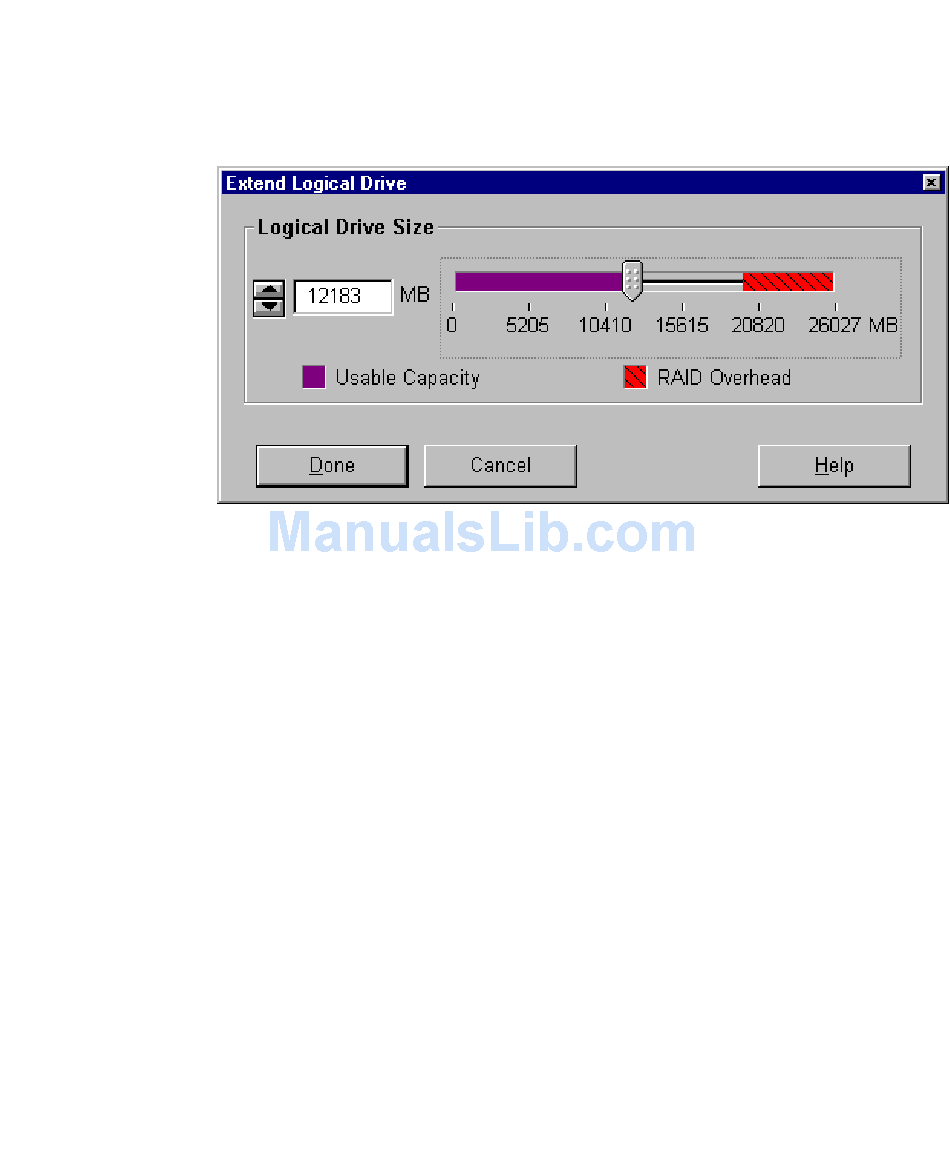

Figure 5-11. Extend Logical Drive screen
4. Click the slider control to change (increase) the size of the logical drive.
NOTE: You cannot reduce the size of the logical drive from this screen.
5. Click Done.
6. Save the logical drive by clicking the Controller menu and selecting the
Save Configuration option.
The logical drive will be restructured so that its data is preserved. Refer to the
status gauge at the lower right of the screen to monitor the progress.
Make the extended space of the logical drive available for use by your
operating system by one of the following methods:
I
Create a new partition in the extended space of the logical drive by
using the operating system partitioning software.
or
I
Increase the size of existing partitions in the extended logical drive by
using the operating system partitioning software or using third-party
partitioning tools.
Running the Array Configuration Utility 5-15
