5-10 Compaq StorageWorks RAID Array 4100 User Guide

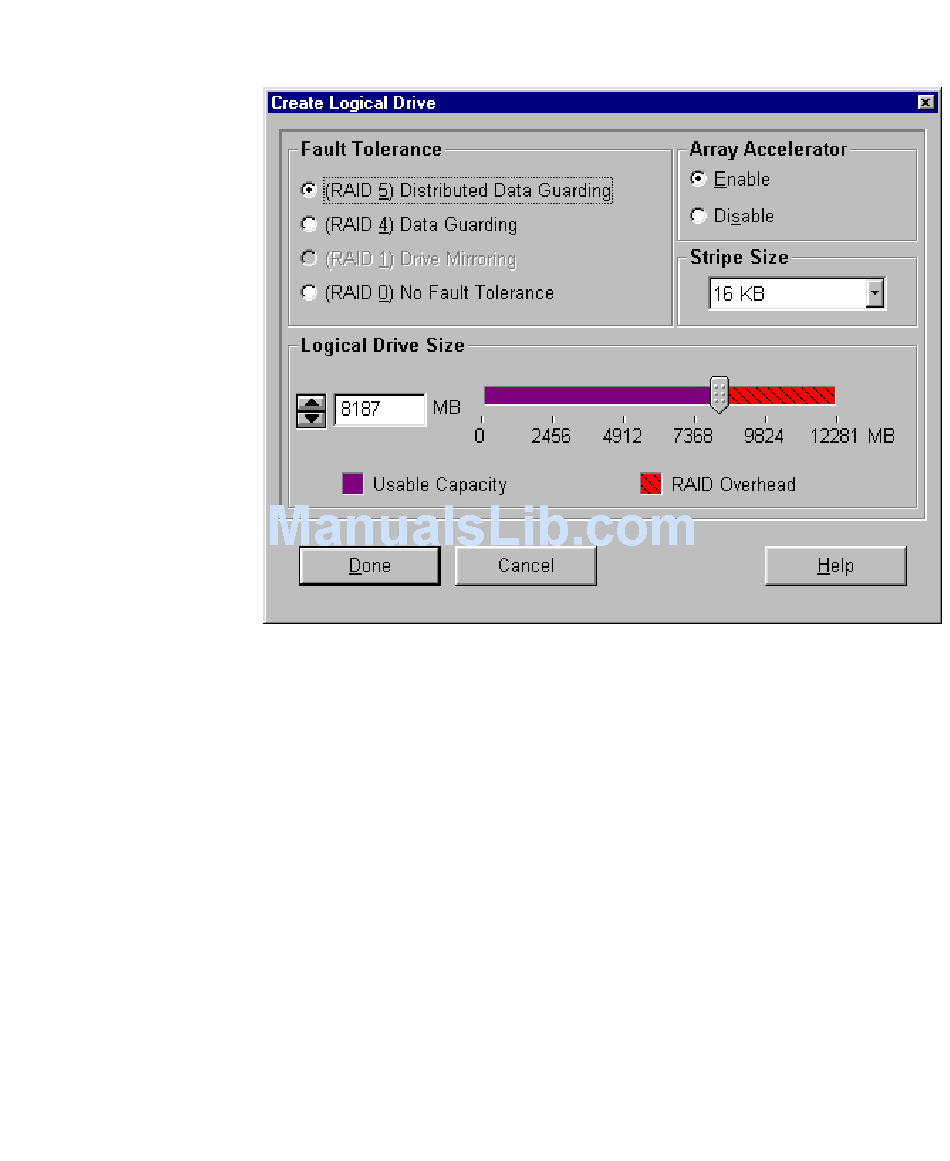

Figure 5-7. Create Logical Drive screen
3. In the upper-left area of this screen, click the Distributed Data Guarding
(RAID 5) option button.
4. Click the Array Accelerator Enable button.
5. Stripe Size can be left at the default for the selected RAID level, or set
to another value. See the section titled "Creating Logical Drive Screen"
later in this chapter for a detailed description.
6. The Logical Drive Size area includes a graphical representation of the
storage capacity available. To create a single logical drive across this
array, accept the default values. See the section titled "Creating Logical
Drive Screen" for a detailed description.
7. Click the Done button.
8. Click Array B or the Unused Space icon under Array B in the Logical
Configuration View.
9. Repeat steps 3 through 7 to create a single logical drive on Array B, this
time selecting RAID 1 fault tolerance.
The Configuration View screen should look like Figure 5-8.
