Hard Drives

The hard drive LEDs apply to the hard drive on which they are located. The
three disk drive status LEDs (see Figure 3-4) define the operational status of
each drive.
1

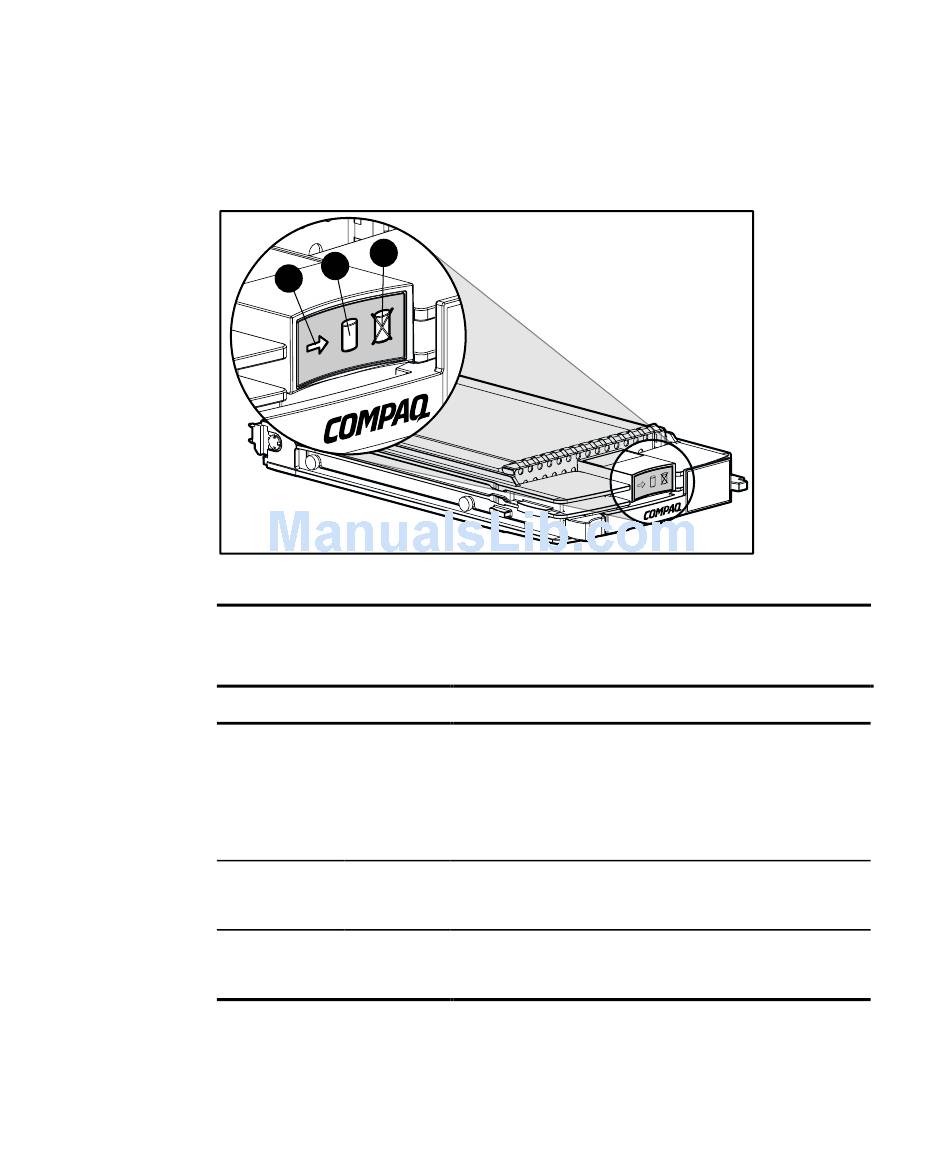

Figure 3-4. Hard drive LEDs
LED


Online

Drive Access

Drive Failure
3
2
Table 3-4
Hard Drive LEDs
Condition
Green Drive is configured and recognized by the controller.
Flashing Volume reconstruction or expansion is in progress.
DO NOT REMOVE THE DRIVE
Off Drive is inactive.
Green The controller is accessing drive.
Off Drive is not being accessed.
Amber Drive has failed and may be replaced.
Off Drive has not failed.
Operation 3-5
