8.5.2 500-3X-3X SERIES CONTROL PANELS

The following detail refers to these panel types:
• 500-30-30 24 key panel
• 500-31-30 16 key panel
• 500-31-31 16 key panel with dial pad
• 500-32-30 8 key panel
• 500-32-31 8 key panel with dial pad
Dimensions
Mains Input
Current Consumption
Details of panel connections are provided in the following tables. Other features may be
enabled or disabled by the DIP switches accessible at the top of the panel. These are
detailed in section 8.5.3.

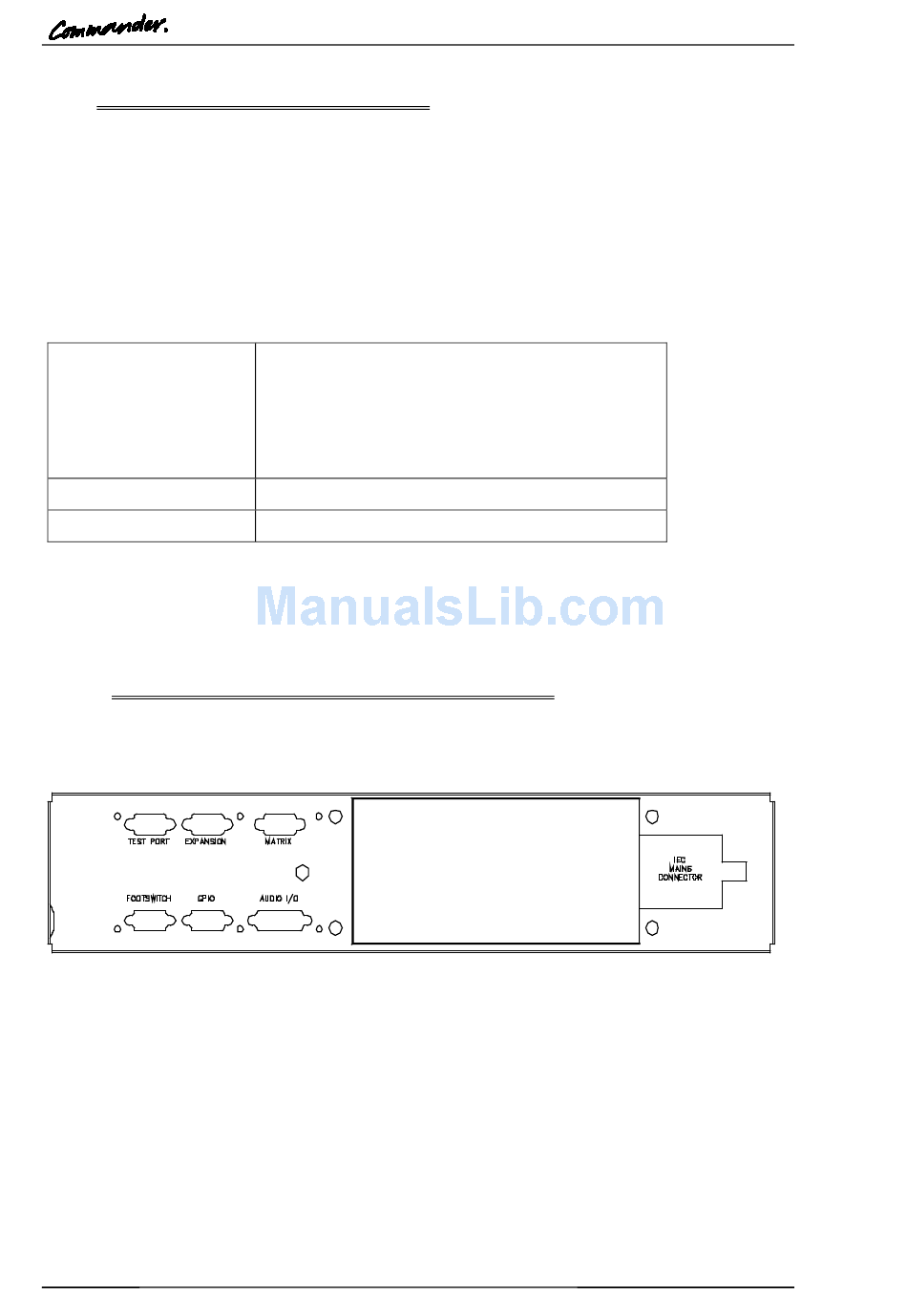

8.5.2.1 500-3x-3x Series Standard Control Panel Rear View
Page 68 of 81
Commander Installation Guide
485mm wide x 88.9mm high x 80mm deep
(max, excluding connectors). Approx. 110mm
deep ( max including mating connectors)
19" x 2RU rack mounting
90 – 250 V ac, 50-60Hz
150mA @ 90V ac, 50mA @ 250V ac.
