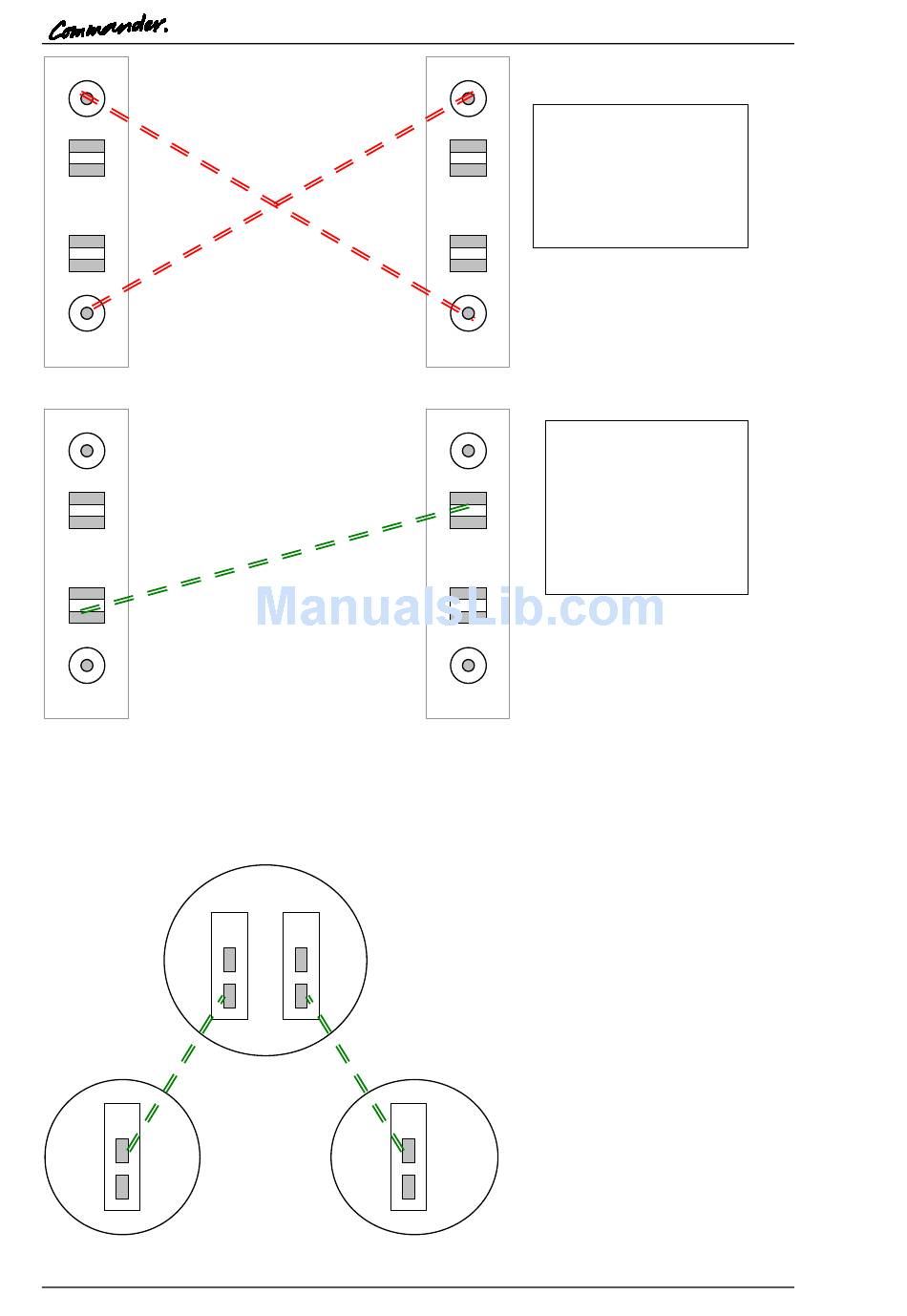

A simple 3 matrix LAN is shown below. The MCR matrix is fitted with two Network Cards.
Routes from Studio A to Studio B are made via the matrix in MCR. For clarity, only the RJ45
connections are shown.
A
Page 32 of 81
Commander Installation Guide
MCR
Issue 9.1
Either
Using two 50R co-axial
cables via the BNC
connectors.
Or
Connect
CAT5
crossover)
two RJ45 sockets.
B
Trilogy Communications Limited
a single
cable (non-
between
