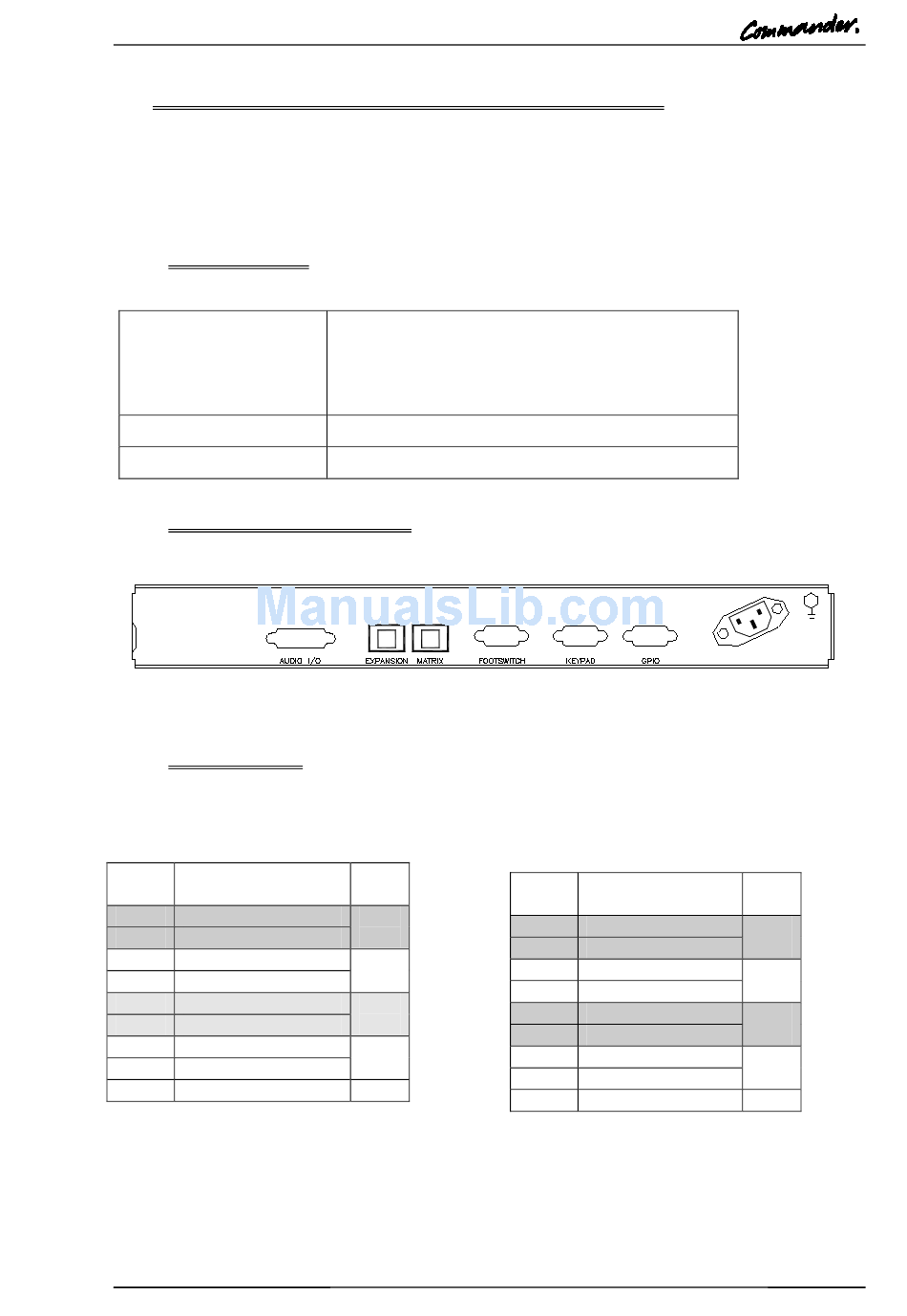

5.7 500-42-50 1U, 10 LEVER KEY PANEL WITH LED DISPLAYS.

Information about the following legacy panel types is also provided here:
• 500-44-50 1U, 10 lever key reduced facility control panel without displays.
• 500-44-51

5.7.1 SPECIFICATION

Dimensions
Mains Input
Current Consumption

5.7.2 REAR CONNECOR LAYOUT

5.7.3 CONNECTIONS

Expansion out – RJ-45 fixed socket on
panel
RJ-45 Function
Pin
1 Panel Data in +
2 Panel Data in -
3 Panel Data out +
6 Panel Data out -
5 Panel Audio out +
4 Panel Audio out -
7 Panel Audio in +
8 Panel Audio in -
Cable Screen
Trilogy Communications Limited
Commander Installation Guide
485mm wide x 44.5mm high x 150mm deep
(excluding connectors) 200m approx. (including
mating connectors)
19" x 1RU rack mounting
90 – 260 V ac, 50-60Hz
150mA @ 90V ac, 50mA @ 250V ac.
Pair
1
Pair
2
Pair
3
Pair
4
Issue 9.1
Matrix – RJ-45 fixed socket on panel
RJ-45 Function
Pin
1 Panel Data out +
2 Panel Data out -
3 Panel Data In +
6 Panel Data In -
5 Panel Audio out +
4 Panel Audio out -
7 Panel Audio in +
8 Panel Audio in -
Cable Screen
Pair
1
Pair
2
Pair
3
Pair
4
