SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
OWNER'S MANUAL
WHAT TO DO IF YOU SMELL GAS
• Open windows/Extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch or use any phone in
your building.
• Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
Do not store or use gasoline or other Flammable vapours and liquids in the vicinity of
Massachusetts installations (Warning): This product must be installed by a licensed plumber
or gas fitter when installed within the Commonwealth of Massachusetts. Other Massachusetts
code requirements:-Flexible connector must not be longer than 36 inches, shut off valve
must be a "T" handle gas cock, only direct vent sealed combustion products are approved for
bedroom/bathrooms, fireplace dampers must be removed or welded in the open position prior
to the installation of a fireplace insert or gas log.

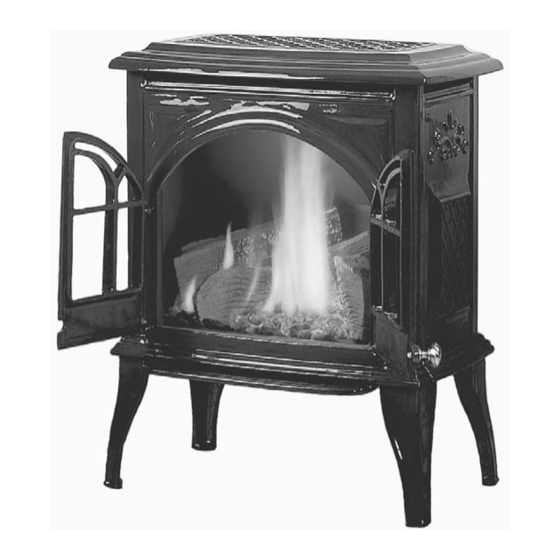

ASCOT
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
FOR YOUR SAFETY
this or any other appliance.
B Y : S H E R W O O D I N D U S T R I E S L T D
This appliance may be installed in an
after market permanently located,
manufactured (mobile) home, where
not prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating
plate. This appliance is not convertible
for use with other gases, unless a
certified kit is used.
WARNING
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage, personal injury
or loss of life. Installation and
service must be performed by a
qualified installer, service agency
or the gas supplier.
50-029

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ascot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enviro Ascot

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. ASCOT PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE B Y : S H E R W O O D I N D U S T R I E S L T D OWNER’S MANUAL...
  • Page 2: Table Of Contents

    Table of Contents Safety Precautions..................3 Codes And Approvals..................4 Specifications....................5 Dimensions..................5 Clearances to Combustibles..............6 Initial Installation...................6 Vent Parts..................6 Vent Termination Restrictions..............7 Horizontal Installation.................8 Through Wall Installation..............9 Vertical and Hearth Mount Installation..........10 Gas Line Connection and Testing............11 Fuel Conversion................12 Electrical Requirements..............13 Installation of Optional Blower............13 Vent Restrictor Setting...............14 Secondary Installation...................15 Installation of Log Set and Embers.............15...
  • Page 3: Safety Precautions

    FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIROGAS” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed • To prevent injury, if the pilot or pilot and burners have gone out on their own, open the in accordance with their instructions.
  • Page 4: Codes And Approvals

    This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows: VENTED GAS FIREPLACE HEATER (ASCOT-DV) (NG/LPG) TESTED TO: ANSI Z21.88a.2002 CSA 2.33a.2002 VENTED GAS FIREPLACE HEATER CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES This ENVIRO ASCOT Fireplace: •...
  • Page 5: Specifications

    Specifications IMENSIONS �������� ������� �������� �������� ������� �������� ������� �������� �������� �������� �������� �������� ��������� �������� �������� �������� Height: inches (61.0 cm) �������� �������� Width: inches (48.5 cm) Depth: 15 5⁄8 inches (39.7 cm) Center of flue to ground without leveling legs: 18 5⁄8 inches (47.7 cm) Center of flue to ground with leveling legs:...
  • Page 6: Clearances To Combustibles

    Specifications LEARANCES TO OMBUSTIBLES Sidewall to unit 10 inches (25.4 cm) Backwall to unit 2.5 inches (6.35 cm) Corner to unit 2.5 inches (6.35 cm) Ceiling 60 inches above floor (152.4 cm) Floor 0 inches (0 cm) MUST HAVE HEARTH PAD IF INSTALLED ON A CARPETED SURFACE If this unit is installed in an alcove the alcove must meet these minimum dimensions: Width 48 inches (121.9 cm) Depth 24 inches (61.0 cm)
  • Page 7: Vent Termination Restrictions

    Initial Installation QUALIFIED INSTALLERS ONLY ERMINATION ESTRICTIONS Fixed Closed Fixed Openable Closed Openable Termination Cap Air Supply Inlet Restriction Zone Gas Meter (Termination not allowed) Letter Canadian Installation US Installation Description 12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony. 12 in (30 cm) 9 in (23 cm) Clearance from window or door that may be opened.
  • Page 8: Horizontal Installation

    Initial Installation ORIZONTAL NSTALLATION STEP 1. Set the appliance in the desired location. Check to determine if wall studs are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the appliance. STEP 2.
  • Page 9: Through Wall Installation

    Initial Installation NOTES: (1) The four wood screws provided should be replaced with the appropriate fasteners for stucco, brick, concrete, or other types of siding. (2) For buildings with vinyl siding, a vinyl siding standoff, should be installed between the vent cap and the exterior wall.
  • Page 10: Vertical And Hearth Mount Installation

    Initial Installation ERTICAL AND EARTH OUNT NSTALLATION SEAL PLATE AND CAP ASSEMBLY 2-3 INCH (5-7.5cm) COLLINEAR PIPES 15 FEET MAXIMUM (4.57 meters) CHIMNEY HEIGHT EXISTING MASONRY CHIMNEY LOCK DAMPER IN VERTICAL THE OPEN POSITION VENT CAP STORM COLLAR ROOF TRUSS COAXIAL INSULATION ROOF FLASHING...
  • Page 11: Gas Line Connection And Testing

    Initial Installation ONNECTION AND ESTING WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a 3/8” •...
  • Page 12: Fuel Conversion

    Initial Installation ONVERSION “Warning”: This conversion kit shall be installed by a qualified service technician in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or CO poisoning may result.
  • Page 13: Electrical Requirements

    LECTRICAL EQUIREMENTS The ENVIRO ASCOT will operate without electrical power. This model has a millivolt gas control, which uses the pilot flame to generate enough electricity to operate the main burners. The appliance when equipped with an optional blower must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE Part 1, SAFETY STANDARDS FOR ELECTRICAL...
  • Page 14: Vent Restrictor Setting

    Initial Installation ESTRICTOR ETTING To access restrictor plate, look at the left hand rear corner of the unit. There is a small rectangular hole in the air jacket Loosen the 1⁄4” hex head bolt and adjust to the correct setting. Slide the hex bolt to the next setting and retighten the bolt to ensure the plate does not move �����...
  • Page 15: Secondary Installation

    If over time, through cleaning and servicing, these embers require replacement, contact nearest ENVIRO dealer replacement embers. Ledges for top left log. 1. Carefully remove logs from box. Check to ensure there is no damage. It is very important to install all logs in their proper position to insure safe, optimum operating conditions.
  • Page 16 ENVIRO dealer.
  • Page 17: Operating Instructions

    Operating Instructions FOR YOUR SAFETY READ COMPLETELY BEFORE OPERATING. WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OR LIFE. A) This appliance is equipped with a pilot that must be lit by hand by following these instructions exactly. B) BEFORE LIGHTING smell all around the appliance area for gas, and next to the floor because some gas is heavier than air and will settle on the floor.
  • Page 18: Routine Maintenance And Service

    • Install the new piece of glass with the large bulb in the gasket tape against the unit. Place the joint in the tape in a bottom corner. Close door Glass must be purchased from an ENVIRO dealer. No substitute materials are allowed. CLEANING THE INSIDE OF THE FIREBOX Remove the log carefully from the firebox.
  • Page 19: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution Spark will not light the Defective piezo ignitor. • Check connections to ignitor. pilot after repeatedly • If ignitor connections are good but no spark, replace pressing the spark ignitor ignitor. Broken spark electrode. •...
  • Page 20: Parts List

    Parts List Part # Description Part # Description Part # Cast Description 50-031 Top - Painted Black 30-056 Fan kit EC-007 S.I.T. Nova valve LP (50% turn down) 50-032 Top - Antique White 30-057 Screen EC-009 Thermocouple (Post 10/00) 50-033 Top - Diamond Black 30-073 Conversion kit LP to NG...
  • Page 21: Parts Diagram

    Parts Diagram...
  • Page 22: Warranty

    Warranty Sherwood Industries Ltd. offers a Limited Lifetime Warranty on this gas product. This limited lifetime warranty covers the appliance for a period of seven years from the date of installation. This warranty applies only to the original owner in the original location Covered under the lifetime warranty are, Surround Panels and Chassis and Heat Exchanger.
  • Page 23: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
