Textron Genesis G4 Instruction Manual page 8

P u t t i n g i n t o S e r v i c e
O p e r a t i n g P ro c e d u r e
AVTAINER ® AND MAXLOK ®
•
Ensure that the correct nose assembly is fitted see page 13.
•
Connect the tool to the air supply.
•
Push the Maxlok ® or Avtainer
•
Place the collar on the stem (orientation as shown below).
•
Keeping the head of the stem against the application, push the tool onto the protruding stem.
•
Fully depress the trigger. One cycle will ensure that the collar is swaged into the lock grooves of the stem and that the
stem breaks at the breaker groove.
•
Release the trigger. The tool completes its cycle by pushing itself off the collar and the spent stem will be pushed to
the rear of the tool on insertion of the next fastener.

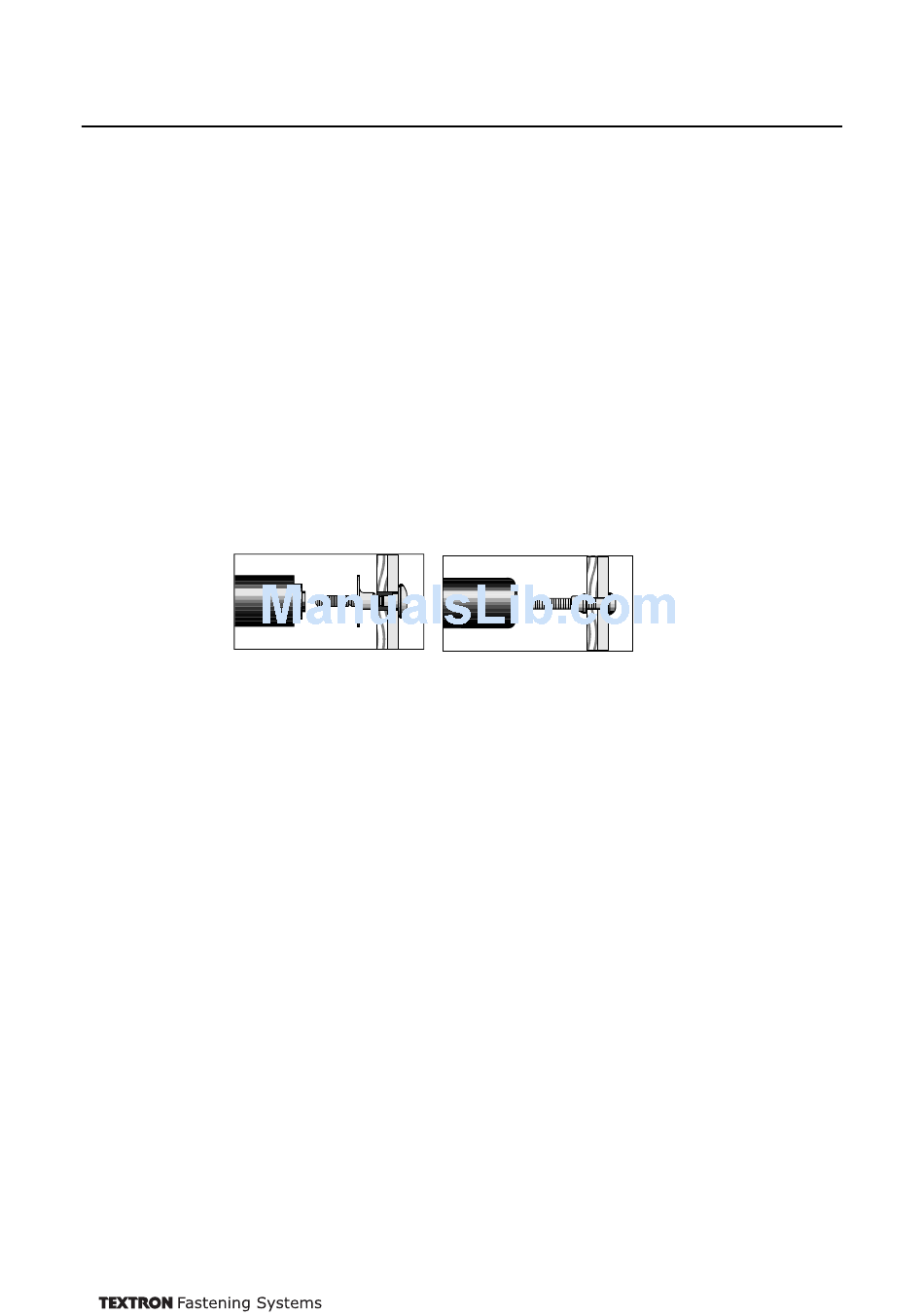

Placing AVTAINER
8
® stem through the application hole.
Placing MAXLOK
®
Inc.
®
