12 Volt Battery Hook-Up - MotorGuide Freshwater Owner's Instructions Manual

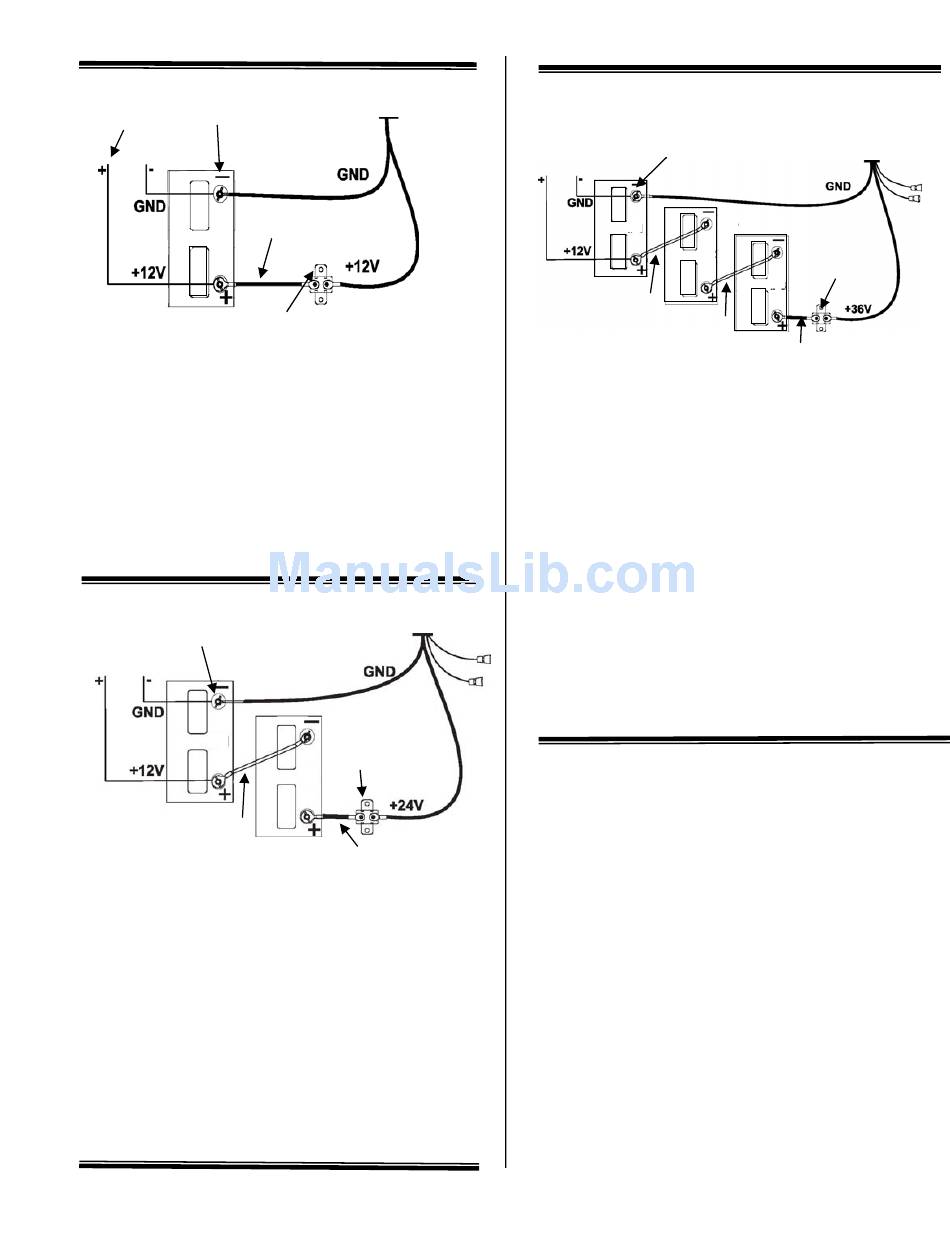

12 Volt Battery Hook-up

E
D
A) Black battery lead (-)
B) Red battery lead (+)
C) 50 amp circuit
breaker
Connect the red battery lead to the battery positive (+)
post and the black battery lead to the battery negative (-)
post. Install a 50 amp circuit breaker in line with the
positive lead as shown above.
24 Volt Battery Hook-up
D
C
A
J
A) Battery A
B) Battery B
C) Positive lead to main
engine bilge pumps,
aerators, accessories
D) Common ground
E) Power cable
Connect the black battery lead from the power cable to the
negative (-) post on battery A and the red lead to the
positive (+) post on battery B. Connect a jumper wire
between the negative (-) post of battery B and the positive
(+) post of battery A. Install a 50 amp circuit breaker in
line with the positive lead to battery B as shown above.
90-MM6900
F
A
A
G
B
C
D) Positive lead to main
engine, bilge pumps,
aerators, accessories
E) Common ground
F) Power cable
G) Jumper Wire
E
H
K
B J
F) To foot pedal
(DS models only)
G) To optional sonar display
(sonar ready models only)
H) Black battery lead (-)
I) Red battery leads (+)
J) Jumper wire
K) 50 amp circuit breaker
36 Volt Battery Hook-up
D
A
A) Battery A
B) Battery B
C) Battery C
D) Positive lead to main
engine, bilge pumps, J) 50 amp circuit breaker
aerators, accessories K) Jumper wire
E) Common ground
F) Black battery lead (-)
G) Power Cable
Connect the black battery lead from the power cable to the
negative (-) post on battery A. Connect the red battery
lead from the power cable to the positive (+) post of
battery C. Connect a jumper wire between the positive (+)
post of battery A to the negative (-) post of battery B.
Connect another jumper wire between the positive (+) post
F
of battery B to negative (-) post of battery C. Install a 50
amp circuit breaker in line with the positive battery lead as
shown above.
G
I
E
F
K
K
B
C
K
H) To foot pedal
(DS models only)
I) To optional sonar display
(sonar ready models only)
L) Red battery lead (+)
4
G
H
I
J
L
