Summary of Contents for MotorGuide R5-70

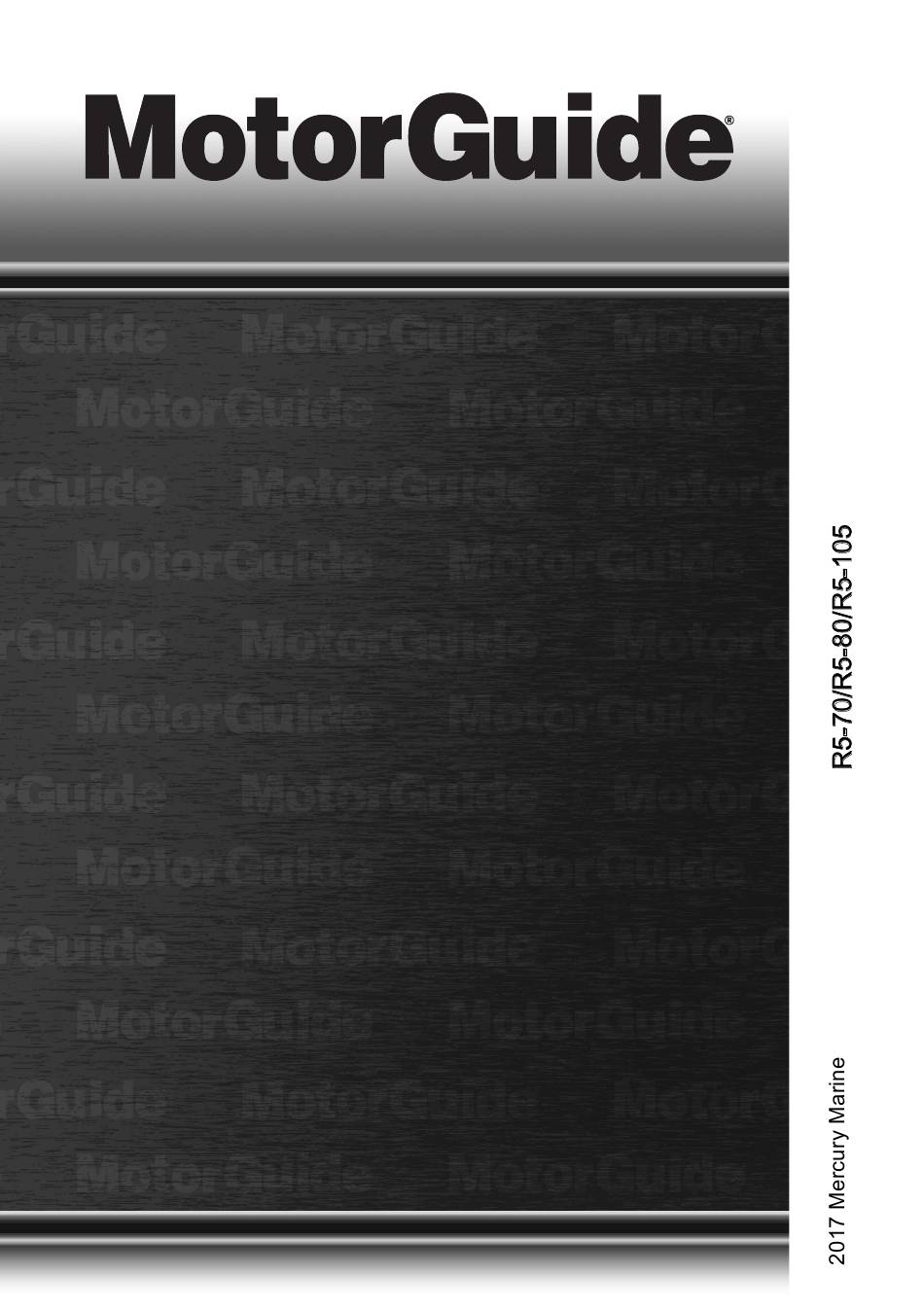

  • Page 1 Operation Maintenance Installation Warranty Manual...
  • Page 2: Eu Compliance Statement

    EU Compliance Statement Attwood Corporation hereby declares that the MotorGuide R5 trolling motor is in compliance with the essential requirements and other relevant provisions of the 99/5/EC R&TTE directive. CE Declaration Manufacturer: Attwood Corporation Product: MotorGuide R5 Series Model: includes all 12, 24, and 36 volt DC models Council Directive 2004/108/EC ‑...
  • Page 3 Thank You Thank you for choosing MotorGuide, one of the finest trolling motors available. Years of experience have been committed to the goal of producing the finest quality products. This led to MotorGuide's reputation for strict quality control, excellence, durability, long‑lasting performance and being the best at providing after‑the‑sale service and support.
  • Page 4: General Information

    GENERAL INFORMATION Boater's Responsibilities The operator (driver) is responsible for the correct and safe operation of the boat and safety of its occupants and general public. It is strongly recommended that each operator (driver) read and understand this entire manual before operating the trolling motor.
  • Page 5 GENERAL INFORMATION Use flotation devices. It is the law to have an approved personal flotation device of suitable size for each person aboard and have it readily accessible. Do not overload your boat. Most boats are rated and certified for maximum load (weight) capacities, refer to your boat capacity plate.
  • Page 6: Product Overview

    PRODUCT OVERVIEW R5‑70/R5‑80/R5‑105 MotorGuide Trolling Motor Saltwater model shown (freshwater model similar) Extendable speed control tiller handle Top housing Composite column Depth adjustment collar Steering tension adjustment knob Clamp bracket Propeller Lower unit Transom clamp screws Battery cables Tilt lock release lever...
  • Page 7: Specifications

    PRODUCT OVERVIEW Specifications Speeds Freshwater/ Peak Shaft Model Control Volts Forward/ Saltwater Thrust Length Reverse R5‑70 Extendable 31.8 kgf 106.7 cm hand/ Freshwater 24 V Variable (70 lbf) (42 in.) Digital twist‑tiller R5‑80 Extendable 36.3 kgf 106.7 cm hand/ Freshwater 24 V Variable (80 lbf)
  • Page 8: Wiring And Battery Information

    1.8 m (6 ft) of the batteries. • Do not extend the included 10‑gauge battery cables more than 1.8 m (6 ft) for a total of 3 m (10 ft). If longer battery cables are required, MotorGuide offers accessory 8 mm² (8‑gauge) battery cables. •...
  • Page 9: Battery Precautions

    Connecting electronic equipment to the trolling motor batteries can cause electrical interference. Any depth sounders or fish finders must be powered from the engine starting or accessory battery. Recommended MotorGuide Accessory Description 8‑gauge battery cable and terminals with 50‑amp manual reset circuit breaker 50‑amp manual reset circuit breaker 60‑amp manual reset circuit breaker...
  • Page 10: Volt Battery Connection

    WIRING AND BATTERY INFORMATION Battery Connection WARNING Before working around electrical system components, disconnect the battery cables from the battery to prevent injury or damage to the electrical system due to an accidental short circuit. CAUTION Disconnecting or connecting the battery cables in the incorrect order can cause injury from electrical shock or can damage the electrical system.
  • Page 11 WIRING AND BATTERY INFORMATION 6. Starting with the positive (+) lead, reconnect the battery cables to the engine starting or accessory battery. Power cables to trolling motor Manual reset circuit breaker Trolling motor battery Engine starting or accessory battery Power cables to engine Common ground 45086...
  • Page 12 WIRING AND BATTERY INFORMATION 6. Starting with the positive (+) lead, reconnect the battery cables to the engine starting or accessory battery. BLACK Battery A Battery B 37824 24-volt battery connection Power cables to trolling motor Manual reset circuit breaker Jumper wire (not supplied) Negative (–) battery terminal 36-VOLT BATTERY CONNECTION...
  • Page 13 WIRING AND BATTERY INFORMATION 6. Connect the trolling motor negative (–) lead to the negative (–) terminal on battery A. 7. Starting with the positive (+) lead, reconnect the battery cables to the engine starting or accessory battery. Battery A Battery B Battery C 37825...
  • Page 14 WIRING AND BATTERY INFORMATION Wire Color Code Abbreviations Wire Color Abbreviations Black Blue Brown Gray Green ORN or ORG Orange Pink PPL or PUR Purple White Yellow LT or LIT Light DK or DRK Dark...
  • Page 15: Transom Mount Installation

    TROLLING MOTOR INSTALLATION AND OPERATION Transom Mount Installation NOTE: The R5 trolling motor will fit transoms up to 7.62 cm (3 in.) thick. 1. Place the trolling motor on the transom of the boat. 2. Tighten the transom clamp screws securely by hand. Do not overtighten the transom clamp screws.
  • Page 16: Stowing The Trolling Motor

    TROLLING MOTOR INSTALLATION AND OPERATION STOWING THE TROLLING MOTOR CAUTION Moving parts, such as hinges and pivot points, can cause serious injury. Keep away from moving parts when stowing, deploying, or tilting the motor. 1. To change the drive angle or tilt the trolling motor, push down on the tilt lock release lever while simultaneously pulling on the trolling motor head/column.
  • Page 17: Deploying The Trolling Motor

    TROLLING MOTOR INSTALLATION AND OPERATION DEPLOYING THE TROLLING MOTOR CAUTION Moving parts, such as hinges and pivot points, can cause serious injury. Keep away from moving parts when stowing, deploying, or tilting the motor. 1. Firmly grasp the trolling motor head/column and press on the tilt lock release pin/lever.
  • Page 18: Speed Control-Hand-Operated Models

    TROLLING MOTOR INSTALLATION AND OPERATION Adjusting the Trolling Motor Depth CAUTION Avoid injury due to the sudden shifting of weight when deploying the motor or adjusting the motor depth. When raising or lowering the motor, firmly grasp the motor column with one hand before loosening the depth collar knob. Adjusting the depth of the motor improves trolling motor performance in various water depths.
  • Page 19 TROLLING MOTOR INSTALLATION AND OPERATION Digital variable speed models allow you to select any speed from 0–10 in forward or reverse. 45750 Forward speed control Reverse speed control Battery Indicator Light The battery indicator light (located on the head cover) provides battery state‑of‑charge information at a glance.
  • Page 20: Trolling Motor Care

    Do not perform maintenance or service on your trolling motor if you are not familiar with the correct service and safety procedures. SELECTING REPLACEMENT PARTS We recommend using original MotorGuide Certified Tough replacement parts. Inspection and Maintenance Schedule BEFORE EACH USE •...
  • Page 21: Lubricating The Pivot Points

    MAINTENANCE IMPORTANT: Trolling motors stored in temperatures below 0 °C (32 °F) should be operated slowly for a minimum of 15 minutes before going above 30% operation. Lubricating the Pivot Points To reduce friction, lubricate the following pivot points periodically: •...
  • Page 22: Propeller Replacement

    MAINTENANCE IMPORTANT: Do not paint the anode or clean it with steel wool, sandpaper, wire brushes, or other abrasive materials. Replace the anode if it is more than 50% eroded. Propeller Anode (saltwater models only) Washer Propeller nut 62099 Propeller Replacement WARNING Performing service or maintenance without first disconnecting the battery can cause product damage, personal injury, or death due to fire, explosion, electrical...
  • Page 23: Installing The Propeller

    MAINTENANCE NOTE: Replace the propeller pin if it is bent. 53442 57326 INSTALLING THE PROPELLER 1. Rotate the motor shaft to insert the propeller pin horizontally. Propeller pin 44664 2. Install the propeller onto the motor shaft by engaging the propeller onto the propeller pin.
  • Page 24 MAINTENANCE IMPORTANT: Do not overtighten the propeller nut, or damage to the propeller or propeller pin may occur. Saltwater model shown Propeller Anode (saltwater models only) Washer Propeller nut 62099...
  • Page 25: Troubleshooting

    TROUBLESHOOTING Trolling Motor Performance Symptom Possible Cause Resolution Weak battery Refer to Wiring and Battery Loose or corroded battery Information. connections Propeller is loose, Refer to Maintenance. damaged, or off‑balance Wire gauge from the battery to Loss of power Wiring or electrical the trolling motor is insufficient.
