Commax CDV-71AM User Manual

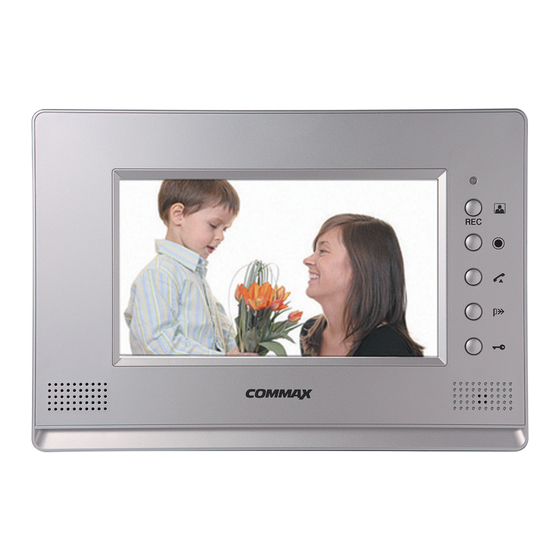

Color video door phone
Hide thumbs Also See for CDV-71AM:

Advertisement

Quick Links

See also: User Manual

User Manual

COLOR VIDEO DOOR PHONE CDV-71AM
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CDV-71AM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CDV-71AM

Summary of Contents for Commax CDV-71AM

  • Page 1: User Manual

    User Manual COLOR VIDEO DOOR PHONE CDV-71AM • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    Table of Contents 1. Warnings and Cautions................2 Part Names.....................3 Package Contents...................3 Wiring and Connection Instructions............4 Installation ....................5 Operation...................... 5 7. Specification s..................15 1. Warning and caution Please follow the things described below in order to prevent any danger or property damage.

  • Page 3: Part Names

    On/Off & display LED Monitor Button Interphone Button Priority talk menu button Talk Button Door Release Button Speaker Microphone 2P Shunt CDV-71AM Wall Bracket Manual (Only NO.1 Cam. is available if you insert 2P Volume Control Button shunt(short pin) Call Sound Control Button Menu Button NTSC/PAL select &...

  • Page 4: Wiring And Connection Instructions

    4. Wiring and Connection Instructions ▷ Polarity of interphone connector ▷ Polarity of the camera connector 1. Red: Talk (Audio) 1. Red: Talk (Audio) 2. Blue: GND 2. Blue: GND 3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 4. White: Video 4.

  • Page 5: Installation

    . Installation Note ① Avoid the range of direct sunlight ② Recommended height is pertinent from 1450 ~ 1500mm DOOR CAMERA & INTERPHONE Wiring ③ Avoid the installation near magnetic activity, humid temperatures and gas Monitor Camera If you use UTP CABLE[CAT.5], connect UTP Cable the rest 4 lines to GND after connecting 4 lines between monitor and interphone.
  • Page 6 How to operate ● Receiving a calling from visitor 1. When the call button is pressed by a visitor at the door camera, the melody shall be rung and visitors’ image is shown on the screen. 2. Press “talk” button( ) to talk with a visitor.
  • Page 7 When there is impeding noise that disturbs conversation from the door camera, pressing and holding the “PTT” button will deliver only the voice of the speaker from the CDV-71AM to the door camera unit to help clarify speech. ● Recording visitors image ※...
  • Page 8  Down Button ● GUI functions Press the “Menu” button, then the screen will be displayed like below. Display save images Setup menu Time setting menu Display setting menu Press the button beside each arrow to execute the function. Touch menu is not support in this menu. Language setting menu Save setting menu...
  • Page 9 ● Review recorded images Press the “Menu” button, then the screen display like below. Buttons to turn 4 pages at a time Button to select desirable screen Button to switch to full-screen mode : Next screen : Previous screen : Quad-screen view mode : Delete current screen (Image will be deleted after verifying pop-up menu) Switch screen to previous menu.
  • Page 10 ● Setup Setting menu : system configuration menu Time setting menu Display setting menu(Brightness, Contrast, Color) Language setting.(Korean, English, Russian, Spanish, Persian, Turkish, Polish) Save menu setting: Auto save, manual save, delete all saved images Move to previous menu...
  • Page 11 ● Time setting Move to desirable sub-menu button (Year/Month/date/hour/minute Enter the desirable menu button Adjusting time button Move back to previous menu (Press the “MEMU” button to exit this menu)
  • Page 12 ● Color adjustment Select sub-menu on the screen (Brightness/Contrast/Color) Select desirable menu button Adjust display button Move back to previous menu button (Select subject again) Configuration reset button Move back to previous menu after finishing setting ( Color adjustment is not for CCTV but for door camera)
  • Page 13 ● Language setting Korean / English / Russian / Spanish / Persian / Turkish / Polish selectable Select language by clicking buttons Save setting button Move back to previous menu after finish setting ● Recording visitor’s image (Auto / Manual) Press the icon Select Auto or Manual in recording method with buttons...
  • Page 14 Note : It shall be set as a “ Auto Record” mode from manufacturer. When the visitors call, every visitor is automatically recorded 1 by 1. Maximum 128 cuts can be saved. In case 129th cut is recorded after 128th cuts, it should be replaced from existing 1st cuts (1/128) again.

  • Page 15: Specification S

    Image recording (CDV-71AM) MAX 128 Cuts HANDS FREE type (Voice Switch) Communication way Display 17.78Cm(7”) COLOR TFT-LCD, Digital LCD COMMAX chime : 2 times Call sound Interphone : Electric chime Stand-by :30 seconds, Video duration time On the line : 60 seconds Entrance: 50m (Ø0.65)
  • Page 16 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM0771AM0011 Printed In Korea / 2016.07.104...
