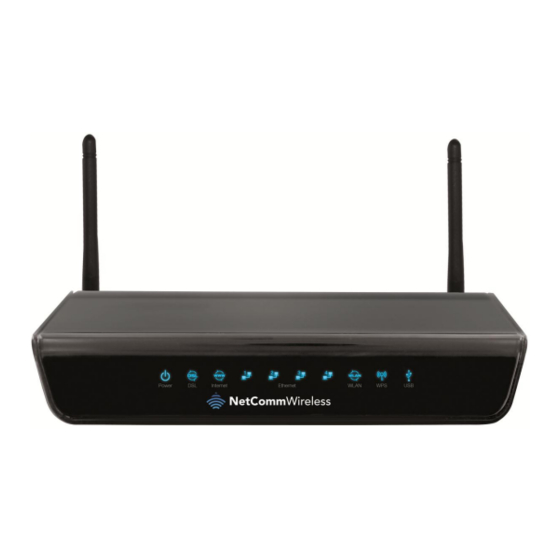

NetComm NB604N User Manual

Wireless modem router
Hide thumbs Also See for NB604N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Setup Manual
In this guide we'll
run through how to
connect your router
so you're up and
surfing in no time.
The simple guide to setting up your
Netcomm NB604N Wireless Modem Router.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NB604N and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm NB604N

Summary of Contents for NetComm NB604N

  • Page 1 In this guide we’ll run through how to connect your router so you’re up and surfing in no time. The simple guide to setting up your Netcomm NB604N Wireless Modem Router.
  • Page 2 If you’re pretty tech-savvy and want to use some of the more advanced features of your router, further information can be found in the support section of the Netcomm website at http://support.netcommwireless.com/ If you can’t find what you’re looking for in this guide or online, just call 1300 137 768 – our friendly Aussie-based team are on hand to help.

  • Page 3: What Comes Next

    What comes next Getting to know your brand new router The front panel The back panel Let’s get started Positioning your router Installing your router Making a connection Connecting with a cable Connecting wirelessly Setting up How to log onto your router Setting up your wireless network Securing your wireless network Changing your router access details...

  • Page 4: The Front Panel

    Getting to know your brand new router The front panel The back of the router is where you connect everything, turn it on/off and also reset it. Here we’ll explain what each of the ports, sockets and buttons is, where they are and what you use them for. Power Internet Ethernet...

  • Page 5: The Back Panel

    9. DSL port Attach a telephone line with an active xDSL service here 10. WLAN Press this button to enable or disable the WiFi function of the NB604N (this can also be done via the control panel) 11. RESET Hold this button down for 10 seconds or more to reset the NB604N to factory defaults 12.

  • Page 6: Let's Get Started

    Let’s get started We’ll take you through a step-by-step process of installing your router and both wired and wireless connection. Positioning your router The position of your router can be important depending on how you intend to use it. You’ll need a power point and phone socket nearby, and it should be close to your computer if you’re connecting directly with a cable.

  • Page 7: Installing Your Router

    Installing your router Once you’ve worked out where you want to put your router it’s time to connect it. Before you do make sure any devices plugged into your phone line (handsets, fax machines, cable television, back to base alarm systems) have a central splitter or ADSL filter/splitter (you’ll find this in the box with your router) fitted between them and the telephone socket.

  • Page 8: Making A Connection

    Making a connection Connecting with a cable To connect to the internet/router with a cable follow these steps: Step 1 Plug one end of the Ethernet cable (Cat 5e) provided into one of the yellow Ethernet ports marked LAN 1 – LAN 4 on the back of the router and the other end to the Ethernet port on your computer.

  • Page 9: Connecting Wirelessly

    Scan for wireless networks on your device and connect to the network name matching the one configured on your router. Please note: The default wireless network name is NetComm Wireless* Step 3 Enter the wireless security key (password) configured on your router when prompted.

  • Page 10: How To Log Onto Your Router

    Setting up How to log onto your router Once you’ve installed your router and connected to the internet we recommend you adjust some of your settings. This can be done through the control panel. To access the control panel follow these steps: Step 1 Open your web browser (e.g.
  • Page 11 Fig. 1: Control panel login Fig. 2: Control panel home screen...

  • Page 12: Setting Up Your Wireless Network

    Step 3 Create a new name for your wireless network. This can be done in the SSID field (it’s NetComm Wireless by default). It’s recommended you change the name to something unique to make it easier to identify your network from others nearby but also for improved security. Your network name will be visible outside of your home or office, so the name should be recognisable but should not use any personal or service details.
  • Page 13 Fig. 3: Wireless configuration screen...

  • Page 14: Securing Your Wireless Network

    Setting up (cont’d) Securing your wireless network To create a password and secure your wireless network follow these steps: Step 1 Select Wireless > Security in the left menu. You’ll see the wireless security screen (Fig. 4). Step 2 Make sure your network name is selected in the Select SSID drop down menu.
  • Page 15 Fig. 4: Wireless security screen Make a note of your password somewhere safe. If you forget it you can always view your password by connecting to your router with a cable, logging onto the control panel, going to wireless security and clicking the blue link next to the WPA/WAPI passphrase field which says Click here to display.

  • Page 16: Changing Your Router Access Details

    Setting up (cont’d) Changing your router access details When you configure your router through a browser, the system asks you to enter your username and password to validate your access permission. By default, these are both set to admin. We recommend you change these to prevent people you don’t know accessing your router and changing the settings.
  • Page 17 Fig. 5: Passwords screen...

  • Page 18: Re-Entering Your Internet Connection Details

    Setting up (cont’d) Re-entering your internet connection details Your router comes preconfigured with all the settings required for it to connect to the internet. You shouldn’t need to change these settings unless instructed to do so during troubleshooting. Step 1 Select Basic Setup in the left menu.
  • Page 19 Fig. 6: Quick setup screen...

  • Page 20: Troubleshooting

    Troubleshooting Always begin troubleshooting by rebooting your computer and power-cycling the router. This is particularly important if your computer has only recently begun to exhibit problems. To power-cycle your router do the following: • Turn the router off and unplug it and wait 30 seconds • Plug the router back in and turn it on, wait another 30 seconds • Finally restart your computer.
  • Page 21 Problem Solution My router isn’t • Your router may not be connected properly. Check cables are connecting to the plugged in securely – you should feel/hear a slight ‘click’ when they internet and the are. DSL LED continues • Other devices may be interfering with the router’s signal. Make to flash sure all other devices (phones, faxes, cable television, alarm systems) are plugged into the phone line via a filter/splitter.
  • Page 22 Basic and enable your wireless network (p.11-12). • You may have entered your wireless network name and password incorrectly on your computer. Try entering them again. By default the wireless network name is NetComm Wireless and the password is a1b2c3d4e5 unless you’ve changed them. I’ve forgotten my • If you forget your password you can retrieve it by logging into your wireless network router (p.9-10) and going to Wireless >...
  • Page 23 Problem Solution I can’t access the control • Your computer may not be connected to the router or panel at http://192.168.1.1 it may not be on. Check the router is switched on (Power LED is blue) and all cables are plugged in securely; or, if you are connecting wirelessly, that your wireless network is enabled (WLAN LED is blue) and your computer is connected.
  • Page 24 Glossary Access Point encoding and decoding high-speed digital An access point is a device on a network, such signals sent and received over analog copper as a router or hub, which allows data to be phone lines. transferred from one location to another (i.e. Router computer to computer or computer to internet).
  • Page 25 Well, that’s the hard part over. Now you’re ready to enjoy your unlimited surfing. If you think you might need a extra help, our technical team are on hand to help. Simply call 1300 137 768 or drop them a line at enquiries@ausphonenet.com.au API0009-RIG 28/02/2014...
