Quick Start Guide
NB9WMAXX
ADSL2+ VoIP Modem Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NB9WMAXX and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm NB9WMAXX

Summary of Contents for NetComm NB9WMAXX

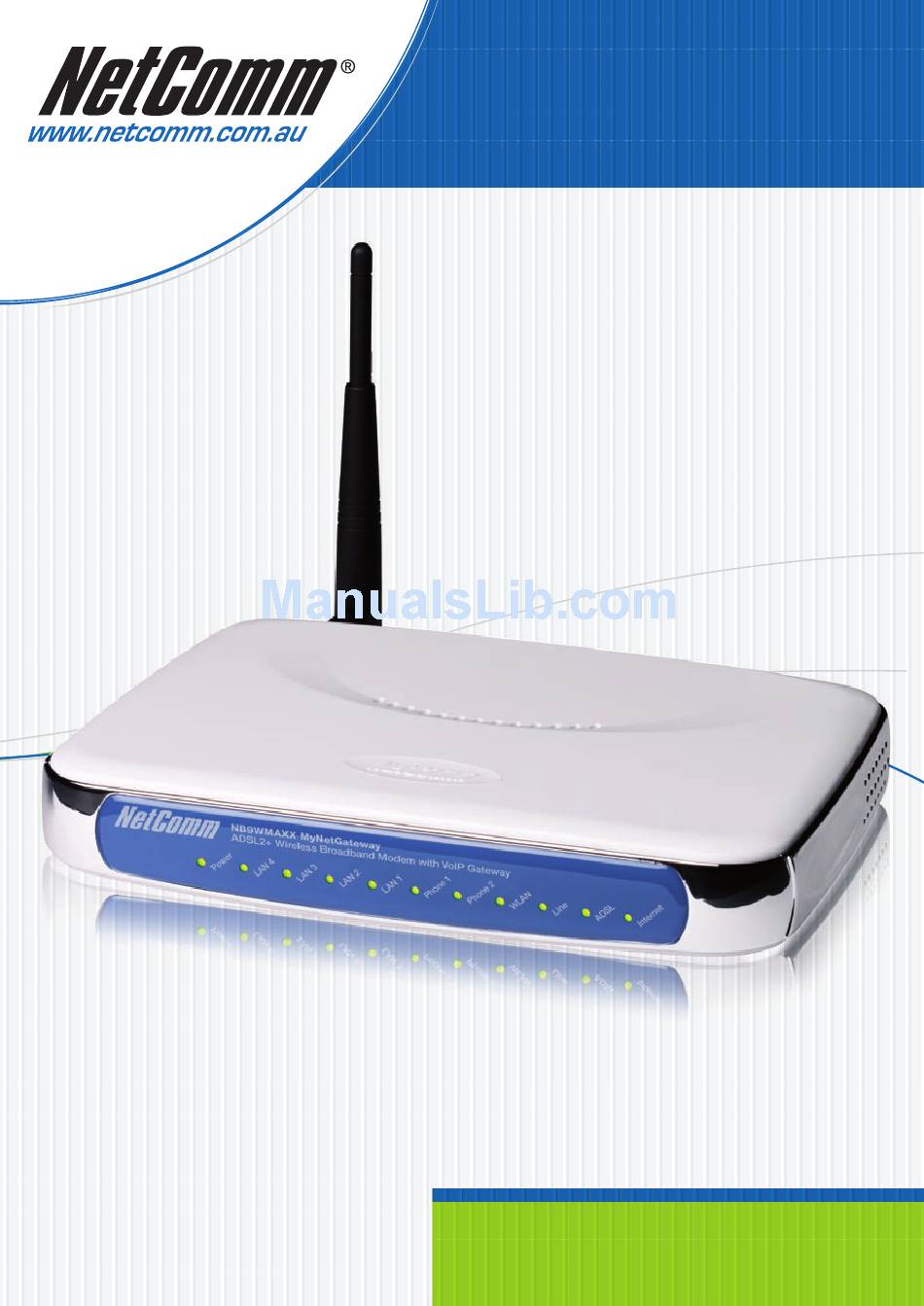

  • Page 1 Quick Start Guide NB9WMAXX ADSL2+ VoIP Modem Router...
  • Page 2 LifeLine support in the NB9WMAXX advanced features; problems with the user’s handset or damage caused to the NB9WMAXX by it; the user not having a valid account with the telephone service providers for a regular telephone service; and the ‘000’ service being congested or not operational.

  • Page 3: Section 1 Overview

    VoIP (Voice over Internet Protocol) The NB9WMAXX connects one or two analogue telephones to a VoIP service as well as providing a pass through connection for your existing landline. The two Phone (FXS) ports even allow two separate VoIP numbers with a VoIP Service Provider (VSP).

  • Page 4: Nb9Wmaxx Package Contents

    PhONE port to the NB9WMAXX LINE port. Another is connected from the splitters ADSL or MODEM port to the NB9WMAXX ADSL port. This is to allow the ‘pass-through’ line to connect via the POTS if necessary. (See diagram on page 9)

  • Page 5: Section 2 Minimum System Requirements

    • One or two telephone handsets for VoIP service Note: The NB9WMAXX serves as an Analogue Terminal Adaptor so any touch-tone phone may be used for VoIP services. • Account with a VoIP Service Provider (VSP) including relevant account details Wireless Requirements: •...

  • Page 6: Getting To Know The Nb9Wmaxx

    SECTION 3 GETTING TO KNOW ThE NB9WMAXX It is recommended that you take a moment to acquaint yourself with the indicator lights, ports and default settings of the NB9WMAXX prior to commencing with installation. Colour Mode POWER Green ADSL Green...

  • Page 7: Back Panel Ports

    ADSL and telephone service). Connect the power adaptor that comes with your NB9WMAXX. Reset button. Depress for 10 seconds to return your NB9WMAXX to its default settings. NB9WMAXX NB9WMAXX Quick Start Guide...

  • Page 8: Section 4 Default Settings

    45 seconds to complete; • Once you have reset your NB9WMAXX to its default settings you will be able to access the device’s configuration web interface using http://192.168.1.1 with username ‘admin’ and password ‘admin’; NB9WMAXX Quick Start Guide YML891 Rev1 www.netcomm.com.au...

  • Page 9: Connecting The Nb9Wmaxx

    CONNECTING ThE NB9WMAXX Follow the steps in this section to configure ADSL, VoIP, Wireless, only one, or any combination of these. The diagram below shows you how to connect the NB9WMAXX to your PC, ADSL and POTS service. 1 or 2 Analogue...

  • Page 10: Connecting The Cables

    Switch on your PC. Make sure the LAN LED (light) on your NB9WMAXX is on, which indicates that network function is active. Note that the pass-through service is provided as a back-up and that calls made through this line are not the same VoIP calls and will be subject to normal telecommunications charges.

  • Page 11: Establishing An Adsl Connection Via Pppoe

    Click the ‘Configure NB9WMAXX’ button; Note: If you do not have a CD-ROM or are running a non-Windows OS, you can access the NB9WMAXX Configuration page by opening a web browser and entering http://19.18.1.1 into the Address / Location field. If you are not able to access the login screen by this means, go to the section titled ‘Computer Hardware Configuration’...
  • Page 12 Enter your PPPoE Username and PPPoE Password and click the Save & Reboot. The NB9WMAXX will apply all of the settings in approximately 2 minutes. After several minutes, you should then see the Basic>Home page indicating your ADSL service is connected.

  • Page 13: Establishing Your Wireless Connection

    Security: WEP (64-bit) HEX key: Note: For advanced wireless settings of your NB9W refer to the User Guide included on your NB9WMAXX CD ROM. If you have a wireless Ethernet card on your PC, you can connect to your NB9W by following these steps: Connect the NB9WMAXX as in the diagram on page 9;...

  • Page 14: Setting Up Your Voip Account

    SIP proxy) you are ready to start setting up your VoIP service on your NB9WMAXX. If you are not already logged into your NB9WMAXX, open a web browser and navigate to http://192.168.1.1 and login with the NB9WMAXX username & password (admin / admin);...
  • Page 15 Interface Name: Don’t change the ‘Interface name’ setting; Priority Codec: The priority codec is set to ‘G729’ which means your NB9WMAXX will firstly choose this codec when communicating with your SIP proxy from your VSP (VoIP Service Provider); Ptime: The ‘ptime’ is the time delay (milliseconds) between voice packets sent. Do not change this value unless your VSP has asked you to;...

  • Page 16: Contact Information

    Note: NetComm Technical Support for this product only covers the basic installation and features outlined in the Quick Start Guide. For further information regarding the advanced features of this product, please refer to the configuring sections in the User Guide or contact a Network Specialist.
