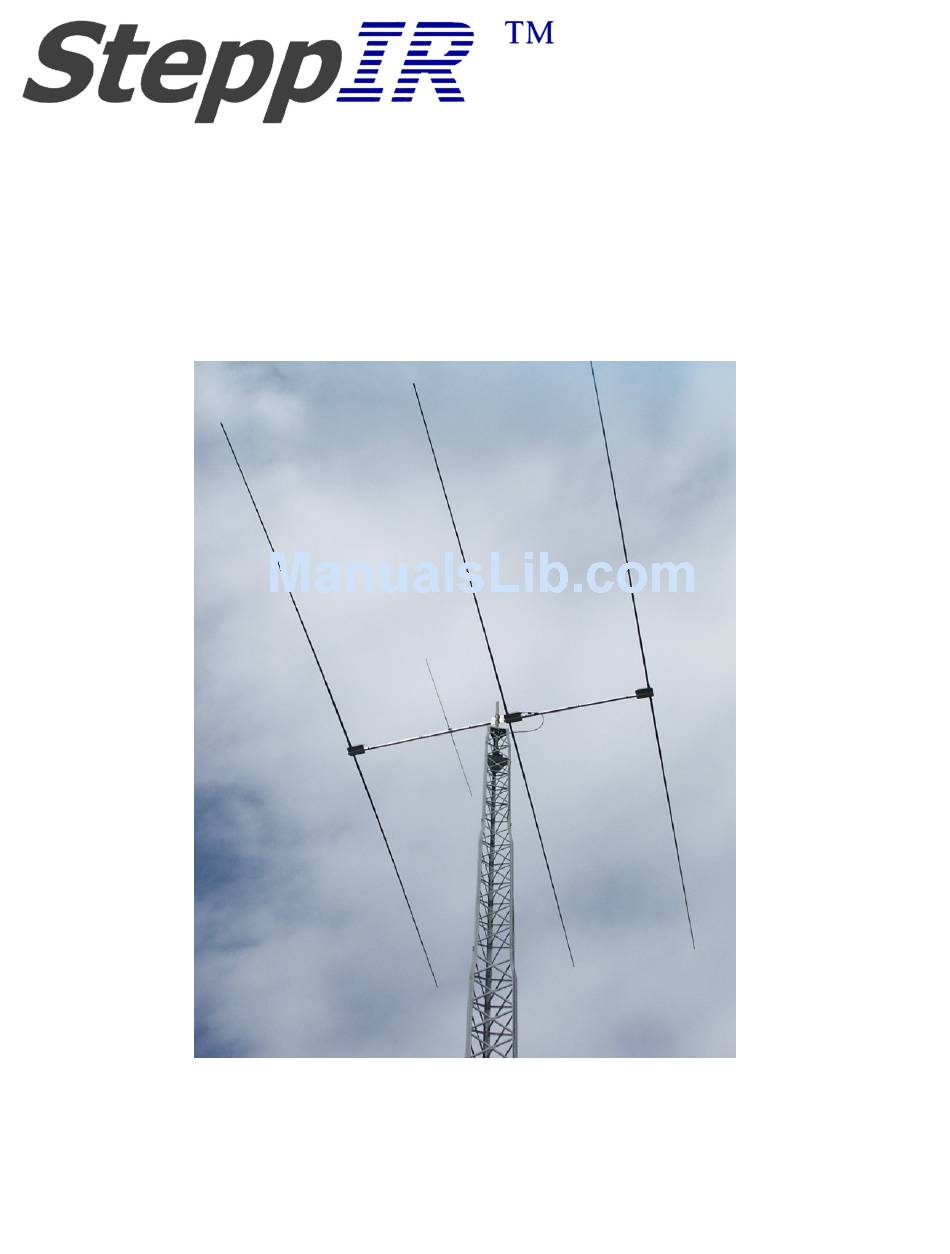

3 Element Yagi Instruction Manual
Revision 3.0 Sept 2012
2112 116TH AVE NE SUITE 1-5, BELLEVUE WA, 98004 WWW.STEPPIR.COM TEL: (425)-453-1910 FAX: (425)-462-4415
