Hardware Installation

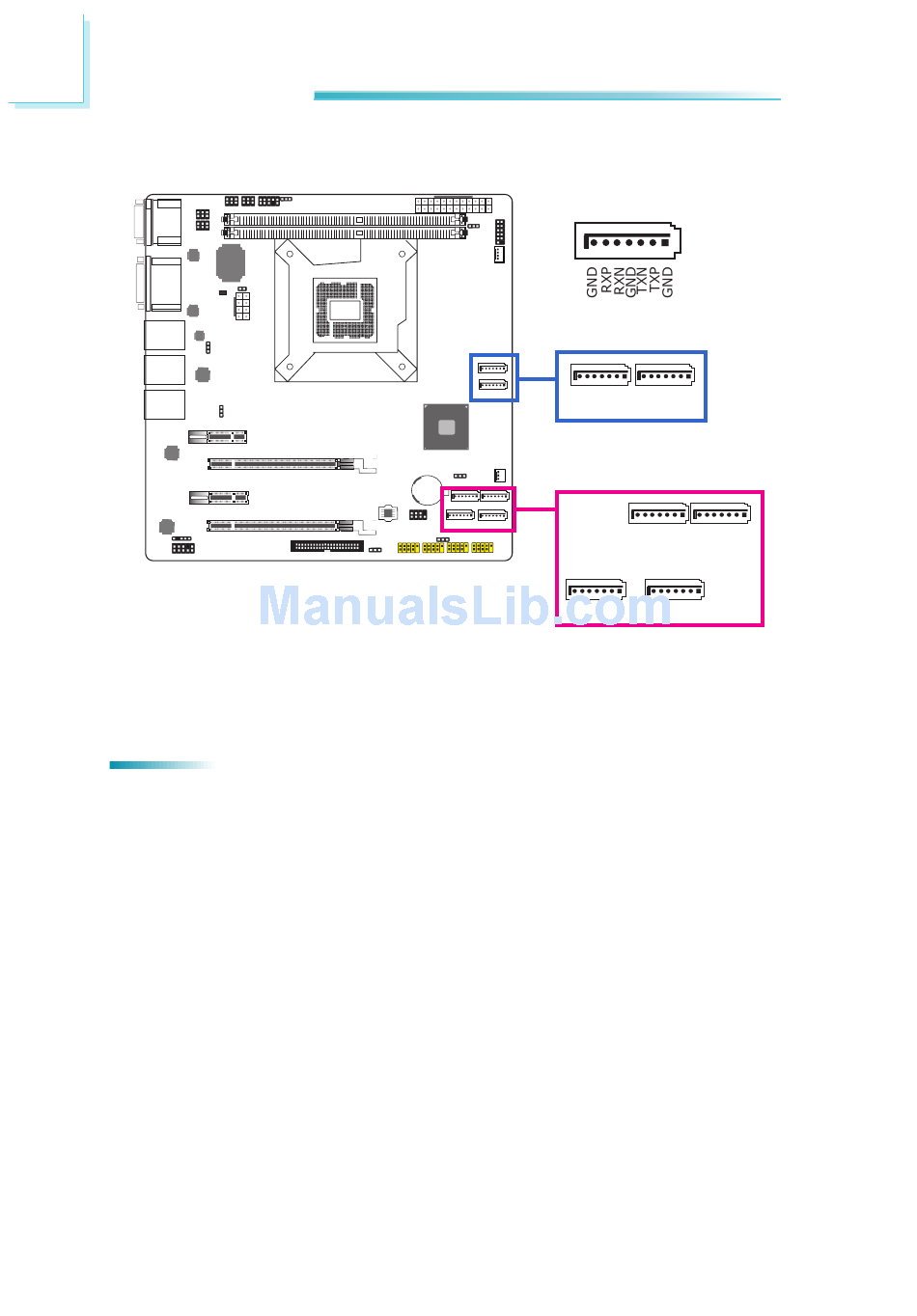

SATA (Serial ATA) Connectors

Features
• SATA 0 and SATA 1 support data transfer rate up to 6Gb/s
• SATA 2 to SATA 5 support data transfer rate up to 3Gb/s
SATA 4 provides adequate space for SATA DOM
• Integrated Advanced Host Controller Interface (AHCI) controller
• Supports RAID 0, RAID 1, RAID 5 and RAID 10
The Serial ATA connectors are used to connect Serial ATA devices. Connect one
end of the Serial ATA cable to a SATA connector and the other end to your Serial
ATA device.
BIOS Setting
Configure the Serial ATA drives in the Advanced menu ("IDE Configuration" sub-
menu) of the BIOS. Refer to chapter 3 for more information.
40
7 1
SATA 3.0 6Gb/s
SATA 0
SATA 1
SATA 2.0 3Gb/s
SATA 4 SATA 3
SATA 5 SATA 2
