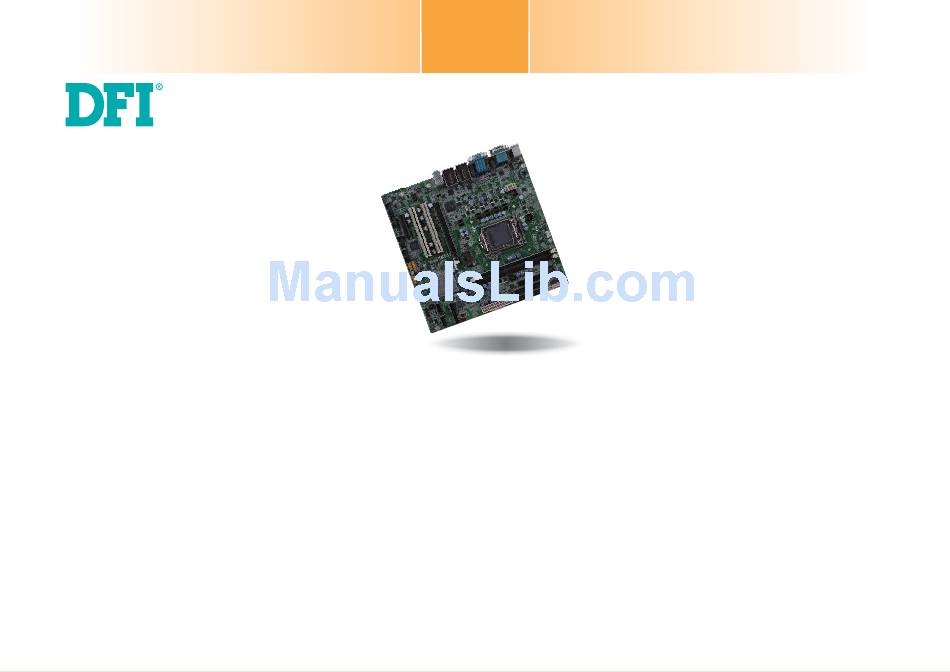

  • Page 1 SB332-C Micro-ATX Industrial Motherboard User’s Manual A24310450 Chapter 1 Introduction www.dfi .com...

  • Page 2: Copyright

    Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be re- This equipment has been tested and found to comply with the limits for a Class B digital produced in any form or by any means or used to make any transformation/adaptation without device, pursuant to Part 15 of the FCC rules.

  • Page 3: Table Of Contents

    Table of Contents Digital I/O Power Connector ................ 23 Cooling Fan Connector ................23 Chassis Intrusion Connector ................ 24 Power Connectors ..................24 Standby Power LED ..................25 Copyright ......................2 Front Panel Connectors ................25 Expansion Slots ..................26 Trademarks LPT Connector ....................

  • Page 4: About This Manual

    About this Manual Static Electricity Precautions An electronic file of this manual is included in the CD. To view the user’s manual in the CD, It is quite easy to inadvertently damage your PC, system board, components or devices even insert the CD into a CD-ROM drive.

  • Page 5: About The Package

    About the Package The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. • One SB332-C board • One USB port cable (with bracket) • One COM port cable (with bracket) •...

  • Page 6: Chapter 1 - Introduction

    Chapter 1 Chapter 1 - Introduction Specifications Processor • LGA 1155 socket for: Rear Panel I/O • 1 mini-DIN-6 PS/2 mouse port • 1 mini-DIN-6 PS/2 keyboard port - 3rd generation Intel Core processors (22nm process technology) Ports ® • 2 DB-9 serial ports : Intel Core i7-3770 (8M Cache, up to 3.9GHz);...

  • Page 7: Features

    Chapter 1 • Wake-On-LAN Features This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It • Watchdog Timer is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal.

  • Page 8: Power Failure Recovery

    Chapter 1 Important: The 5V_standby power source of your power supply must support ≥720mA. • Power Failure Recovery When power returns after an AC power failure, you may choose to either power-on the system manually or let the system power-on automatically. Chapter 1 Introduction www.dfi...

  • Page 9: Chapter 2 - Hardware Installation

    Chapter 2 Chapter 2 - Hardware Installation Important: Board Layout Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD workstation only. If such a station is not available, you can provide some ESD protection by wear- ing an antistatic wrist strap and attaching it to a metal part of the system chassis.

  • Page 10: Installing The Dim Module

    Chapter 2 The system board supports the following memory interface. Installing the DIM Module Single Channel (SC) 1. Make sure the PC and all other peripheral devices connected to it has been powered down. Data will be accessed in chunks of 64 bits (8B) from the memory channels. 2.

  • Page 11: Cpu

    Chapter 2 6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one The system board is equipped with a surface mount LGA 1155 socket.

  • Page 12: Installing The Cpu

    Chapter 2 Load lever Installing the CPU 5. Lifting the load lever will at the same time lift the load plate. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. Lift the load lever up to 2.
  • Page 13 Chapter 2 7. Insert the CPU into the 8. Close the load plate then socket. The gold triangular push the load lever down. mark on the CPU must align with the corner of While closing the load the CPU socket shown on plate, make sure the front Retention knob edge of the load plate...

  • Page 14: Installing The Fan And Heat Sink

    Chapter 2 Installing the Fan and Heat Sink 4. Rotate each push-pin ac- cording to the direction of the arrow shown on top of The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circula- the pin.

  • Page 15: Jumper Settings

    Chapter 2 Jumper Settings PS/2 Power Select Clear CMOS Data 1-2 On: +5V 2-3 On: (default) +5V_standby 1-2 On: Normal (default) JP3 is used to select the power of the PS/2 keyboard and PS/2 mouse ports. Selecting +5V_ 2-3 On: Clear CMOS Data standby will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.

  • Page 16: Usb Power Select

    Chapter 2 USB Power Select Power-on Select USB 0-1/8-9 (JP4) 1-2 On: 1-2 On: +5V 2-3 On: Power-on via power button (default) +5V_standby (default) USB 2-3/4-5 2-3 On: (JP5) Power-on via AC power; or Power-on via WOL after G3 1-2 On: +5V 2-3 On: (default) +5V_standby...

  • Page 17: Com1 Rs232/422/485 Select

    Chapter 2 COM1 RS232/RS422/RS485 Select JP1 (for COM1) is used to configure the COM ports to RS232, RS422 (Full Duplex) or RS485. The pin function of the COM ports will vary according to the jumper’s setting. 3-4 On: RS422 1-2 On: RS232 5-6 On: RS485 Full Duplex (default)

  • Page 18: Rear Panel Ports

    Chapter 2 Rear Panel I/O Ports PS/2 Mouse and PS/2 Keyboard Ports COM 1 COM 2 PS/2 Mouse LAN 1 LAN 2 Line-in PS/2 Mouse PS/2 K/B Line-out PS/2 K/B Mic-in HDMI USB 2.0 USB 2.0 The rear panel I/O ports consist of the following: •...

  • Page 19: Rj45 Lan Ports

    Chapter 2 RJ45 LAN Ports USB Ports LAN 1 LAN 2 USB 1 USB 8 USB 0 USB 9 USB 2.0 USB 4-5 USB 2-3 USB 10-11 Features USB 2.0 • Two Intel W82574L Gigabit Ethernet controllers The LAN ports allow the system board to connect to a local area network by means of a network hub.

  • Page 20: Graphics Interface

    Chapter 2 Graphics Interface Wake-On-USB Keyboard/Mouse The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse The display ports consist of the following: to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function: •...

  • Page 21: Com Ports

    Chapter 2 COM (Serial) Ports Audio Rear audio COM 2 COM 1 Line-in COM 10 COM 9 Line-out COM 8 COM 7 Mic-in COM 1: RS232/422/485 COM 2-COM 10: RS232 Front audio COM 3 COM 4 COM 5 COM 6 The pin function of COM 1 port will vary according to JP1’s setting.

  • Page 22: I/O Connectors

    Chapter 2 I/O Connectors BIOS Setting Configure the onboard audio in the Chipset menu (“South Bridge” submenu) of the BIOS. SATA (Serial ATA) Connectors Refer to chapter 3 for more information. Driver Installation Install the audio driver. Refer to chapter 4 for more information. SATA 2.0 3Gb/s SATA 0 SATA 1...

  • Page 23: Digital I/O Connector

    Chapter 2 Digital I/O Connector Cooling Fan Connectors Digital I/O Power Connector CPU fan Digital I/O Speed Control Ground Power Sense System_fan 1 Digital I/O power Ground Power Sense 5VSB Ground +12V System_fan 2 Sense Ground Power The fan connectors are used to connect cooling fans. The cooling fans will provide adequate The 8-bit Digital I/O connector provides powering-on function to external devices that are con- airflow throughout the chassis to prevent overheating the CPU and system board components.

  • Page 24: Chassis Intrusion Connector

    Chapter 2 Chassis Intrusion Connector Power Connectors ATX 12V +12V Ground Signal Ground 12 24 +3.3VDC ATX power +5VDC +12VDC +5VDC +12VDC +5VSB +5VDC PWR_OK +5VDC PS_ON# +5VDC -12VDC +3.3VDC +3.3VDC +3.3VDC The board supports the chassis intrusion detection function. Connect the chassis intrusion sensor cable from the chassis to this connector.

  • Page 25: Standby Power Led

    Chapter 2 Standby Power LED Front Panel Connectors Standby Power LED HDD-LED RESET-SW This LED will lit red when the system is in the standby mode. It indicates that there is power PWR-LED on the system board. Power-off the PC and then unplug the power cord prior to installing any PWR-BTN devices.

  • Page 26: Expansion Slots

    Chapter 2 Expansion Slots LPT Connector PCI Express x16 PCI Express x4 PCI Express x16 Slot The LPT port is for interfacing your PC to a parallel printer. It supports SPP, ECP and EPP. Install PCI Express x16 graphics card, that comply to the PCI Express specifications, into the PCI Express x16 slot.

  • Page 27: S/Pdif Connector

    Chapter 2 S/PDIF Connector Battery Battery SPDIF in Ground SPDIF out The lithium ion battery powers the real-time clock and CMOS memory. It is an auxiliary source The S/PDIF connector is used to connect an external S/PDIF port. Your S/PDIF port may be of power when the main power is shut off.

  • Page 28: Chapter 3 - Bios Setup

    Chapter 3 Chapter 3 - BIOS Setup Legends Overview Keys Function The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. Right and Left arrows Moves the highlight left or right to select a menu.

  • Page 29: Ami Bios Setup Utility

    Chapter 3 AMI BIOS Setup Utility Advanced The Advanced menu allows you to configure your system for basic operation. Some entries are Main defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
  • Page 30 Chapter 3 ACPI Power Management Configuration PC Health Status This section is used to configure the ACPI Power Management. This section displays the SIO hardware health monitor. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Advanced ...
  • Page 31 Chapter 3 Boundary 1 to Boundary 4 CPU Configuration The range is from 0-127. This section is used to configure the CPU. It will also display the detected CPU information. Speed Count 1 to Speed Count 5 Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. The range is from 1-100.
  • Page 32 Chapter 3 SATA Configuration USB Configuration This section is used to configure SATA functions. This section is used to configure USB. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Advanced SATA Controller(s)
  • Page 33 Chapter 3 Super IO Configuration Serial Port 1 Configuration to Serial Port 2 Configuration This section is used to configure the I/O functions supported by the onboard Super I/O chip. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
  • Page 34 Chapter 3 Parellel Port Configuration Second Super IO Configuration This section is used to configure the I/O functions supported by the onboard Super I/O chip. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Parellel Port Confi...
  • Page 35 Chapter 3 Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Advanced Serial Port 4 Confi guration Serial Port 6 Confi guration Enable or Disable Serial Enable or Disable Serial Port (COM) Port (COM) [Enabled]...
  • Page 36 Chapter 3 Third Super IO Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced This section is used to configure the I/O functions supported by the onboard Super I/O chip. Serial Port 8 Confi guration Enable or Disable Serial Port (COM) [Enabled] Serial Port...
  • Page 37 Chapter 3 Network Stack Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Serial Port 10 Confi guration Enable or Disable Serial Advanced Port (COM) [Enabled] Serial Port Device Settings IO=218h;...

  • Page 38: Chipset

    Chapter 3 Chipset South Bridge Configures relevant chipset functions. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Intel PCH RC Version 1.5.0.0 PCI Express Coniguration Intel PCH SKU Name settings.
  • Page 39 Chapter 3 PCI Express Configuration PCI Express Root Port 5 Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Advanced PCI Express Confi guration PCI Express Root Port 1 PCI Express Root Port 5 [Enabled] Control the PCI Root Port.
  • Page 40 Chapter 3 Graphics Configuration USB Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Chipset USB Confi guration Control the USB EHCI Graphics Confi guration Select which of IGFX/ (USB 2.0) functions.
  • Page 41 Chapter 3 ME Subsystem NB PCIe Configuration Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset Chipset NB PCIe Confi guration Confi gure PEG B0:D1:F0 Intel ME Subsystem Confi guration ME FW Version 8.0.4.1441 Not Present...

  • Page 42: Boot

    Chapter 3 Boot CSM Parameters Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Main Advanced Chipset Boot Security Save & Exit This option controls if Launch CSM [Enabled]...

  • Page 43: Security

    Chapter 3 Security Save & Exit Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Main Advanced Chipset Boot Security Save & Exit Password Description Set Administrator Save Changes and Reset...

  • Page 44: Updating The Bios

    Chapter 3 Updating the BIOS Notice: BIOS SPI ROM To update the BIOS, you will need the new BIOS file and a flash utility, AFUDOS. 1. The Intel Management Engine has already been integrated into this system board. Due to ®...

  • Page 45: Chapter 4 - Supported Software

    Chapter 4 Chapter 4 - Supported Software Microsoft .NET Framework 3.5 The CD that came with the system board contains drivers, utilities and software applications (for Windows XP only) required to enhance the performance of the system board. Insert the CD into a CD-ROM drive. The autorun screen (Mainboard Utility CD) will appear. If Note: after inserting the CD, “Autorun”...
  • Page 46 Chapter 4 Intel Chipset Software Installation Utility 3. Click Exit. The Intel Chipset Software Installation Utility is used for updating Windows INF files so that ® the Intel chipset can be recognized and configured properly in the system. To install the utility, click “Intel Chipset Software Installation Utility” on the main menu. 1.
  • Page 47 Chapter 4 Microsoft DirectX 9.0C (for Windows XP only) 3. Go through the readme document for more installa- tion tips then click Next. To install the driver, click “Microsoft DirectX 9.0C” on the main menu. 1. Click “I accept the agree- ment”...

  • Page 48: Intel Graphics Drivers

    Chapter 4 Intel Graphics Drivers 3. Go through the readme document for system re- quirements and installation To install the driver, click “Intel Graphics Drivers” on the main menu. tips then click Next. 1. Setup is now ready to install the graphics driver. Click Next.

  • Page 49: Audio Drivers

    Chapter 4 Audio Drivers Intel LAN Drivers To install the driver, click “Audio Drivers” on the main menu. To install the driver, click “Intel LAN Drivers” on the main menu. 1. Setup is ready to install the 1. Setup is ready to install the driver.

  • Page 50: Intel Management Engine Drivers

    Chapter 4 Intel Management Engine Drivers 4. Click Install to begin the installation. To install the driver, click “Intel Management Engine Drivers” on the main menu. 1. Setup is ready to install the driver. Click Next. 5. After completing installa- tion, click Finish.

  • Page 51: Myguard Hardware Monitor

    Chapter 4 MyGuard Hardware Monitor 3. Setup is currently installing the driver. After installation has completed, click Next. 1. Locate for the MyGuard folder in the provided disc. 2. In the MyGuard folder, right-click on the “setup” file. 3. Select Run As Administrator. 4.

  • Page 52: Dfi Utility

    DFI Utility 6. Click Install to begin instal- lation. DFI Utility provides information about the board, Watchdog,and DIO. To access the utility, click “DFI Utility” on the main menu. Note: If you are using Windows 7, you need to access the operating system as an administrator to be able to install the utility.
  • Page 53 Chapter 4 The DFI Utility icon will appear on the desktop. Double-click the icon to open the utility. 3. Enter “User name” (SB102) and “Organization” information then click “Next”. 4. Click “Install” to begin the installation. 5. After completing installa tion, click “Finish”.
  • Page 54 Chapter 4 Adobe Acrobat Reader 9.3 To install the reader, click “Adobe Acrobat Reader 9.3” on the main menu. 1. Click Next to install or click Change Destination Folder to select another folder. 2. Click Install to begin installa- tion. 3.

  • Page 55: Appendix A - Troubleshooting

    Appendix A Appendix A - NLITE and AHCI Installation Guide 4. Insert the XP installation disc into an optical drive. nLite 5. Launch nLite. The Welcome screen will appear. Click nLite is an application program that allows you to customize your XP installation disc by Next.
  • Page 56 Appendix A 7. Click Next. 9. Click Insert and then select Multiple driver folder to select the drivers you will integrate. Click Next. Select only the drivers ap- 8. In the Task Selection dialog propriate for the Windows box, click Drivers and version that you are using Bootable ISO.
  • Page 57 Appendix A If you are uncertain of The program is currently the southbridge chip used integrating the drivers on your motherboard, and applying changes to select all RAID/AHCI the installation. controllers and then click When the program is finished applying the changes, click Next.
  • Page 58 Appendix A To create an image, You have finished cus- select the Create Image tomizing the Windows mode under the General XP installation disc. Click section and then click Finish. Next. Enter the BIOS utility to configure the SATA con- troller to RAID/AHCI.
  • Page 59 Appendix A AHCI 5. In the Hardware Update Wizard dialog box, select “No, not this time” then The installation steps below will guide you in configuring your SATA drive to AHCI mode. click Next. 1. Enter the BIOS utility and configure the SATA controller to IDE mode. 2.
  • Page 60 Appendix A A warning message 8. Click “Have Disk”. appeared because the se- lected SATA controller did not match your hardware device. Ignore the warning and click Yes to proceed. Click Finish. 9. Select C:\AHCI\iaAHCI.inf and then click Open. The system’s settings have been changed.

  • Page 61: Appendix B - Watchdog Sample Code

    Appendix B Appendix B - Watchdog Sample Code ;Software programming example: ;--------------------------------------------- ;(1) Enter Super IO Confi guration mode ;--------------------------------------------- DX,2EH AL,87H DX,AL DX,AL ;------------------------------------------------------------------------------------------- ;(2) Confi guration Logical Device 7, register CRF5/CRF6 (WDT Control /WDT timer) ;------------------------------------------------------------------------------------------- DX,2EH AL,07H ;Ready to Program Logical Device DX,AL DX,2FH...

  • Page 62: Appendix C - System Error Message

    Appendix C Appendix C - System Error Message Hard Disk(s) fail (20) When the BIOS encounters an error that requires the user to correct something, either a beep HDD initialization error. code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in Hard Disk(s) fail (10) the information box at the bottom.

  • Page 63: Appendix D - Troubleshooting

    Appendix D Appendix D - Troubleshooting Checklist The picture seems to be constantly moving. Troubleshooting Checklist 1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync. 2. Move away any objects, such as another monitor or fan, that may be creating a magnetic This chapter of the manual is designed to help you with problems that you may encounter field around the display.

  • Page 64: Hard Drive

    Appendix D Hard Drive System Board 1. Make sure the add-in card is seated securely in the expansion slot. If the add-in card is Hard disk failure. loose, power off the system, re-install the card and power up the system. 1.

  • Page 65: Appendix E - Bios Status Code

    Appendix E Appendix E - BIOS Status Code PEI Status Codes Status Code Ranges Standard Status Codes SEC Status Codes Appendix E BIOS status code www.dfi .com...
  • Page 66 Appendix E PEI Beep Codes DXE Status Codes Appendix E BIOS status code www.dfi .com...
  • Page 67 Appendix E Appendix E BIOS status code www.dfi .com...
  • Page 68 Appendix E OEM-Reserved Status Code Ranges DXE Beep Codes ACPI/ASL Status Codes Appendix E BIOS status code www.dfi .com...
