Hardware Installation

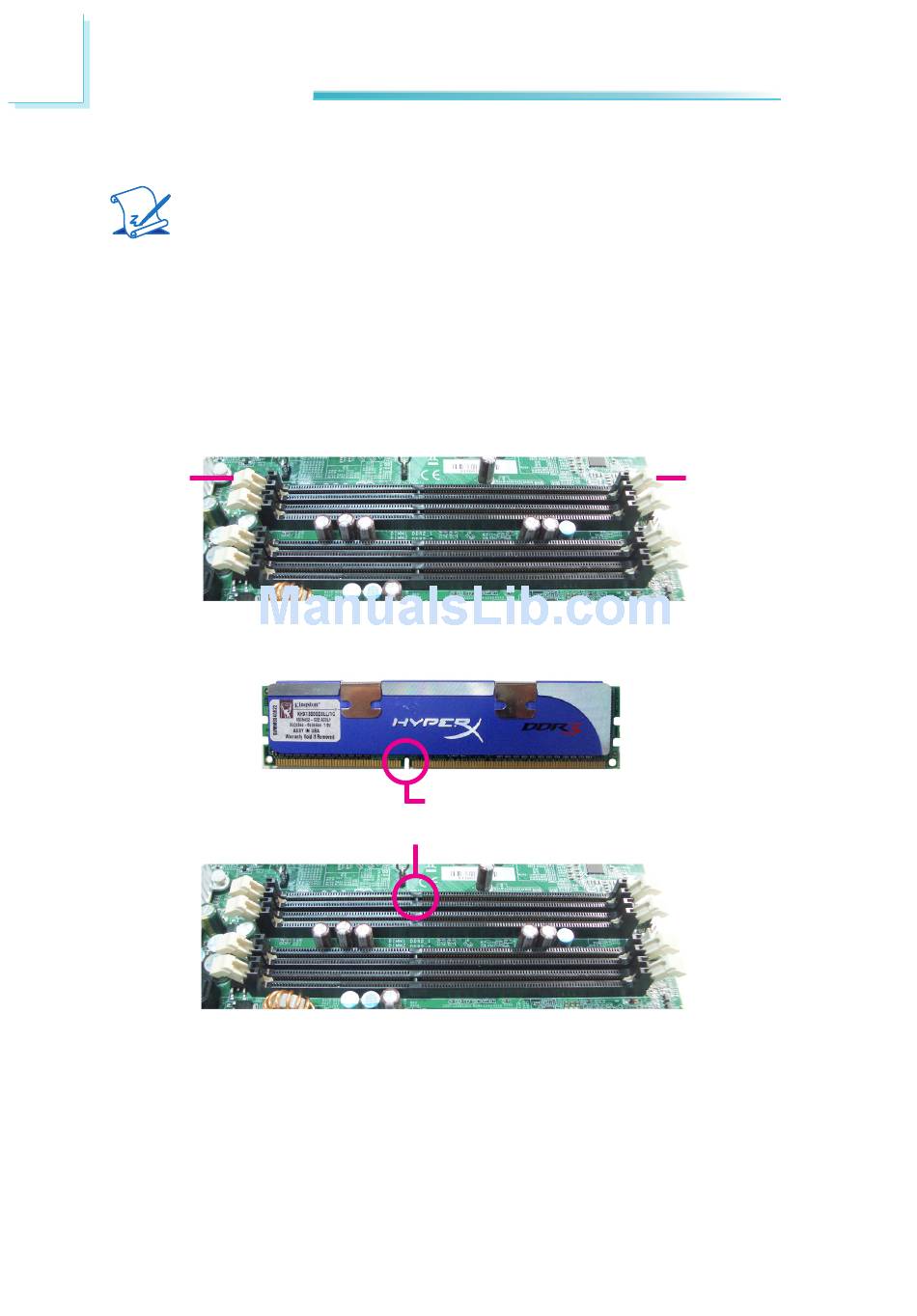

Installing the DIM Module

Note:
The system board used in the following illustrations may not resemble
the actual board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to it has been
powered down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board.
4. Push the "ejector tabs" which are at the ends of the socket to the side.
Ejector tab
5. Note how the module is keyed to the socket.
18
Notch
Key
Ejector tab
