LEDs on the Rear of the Trays

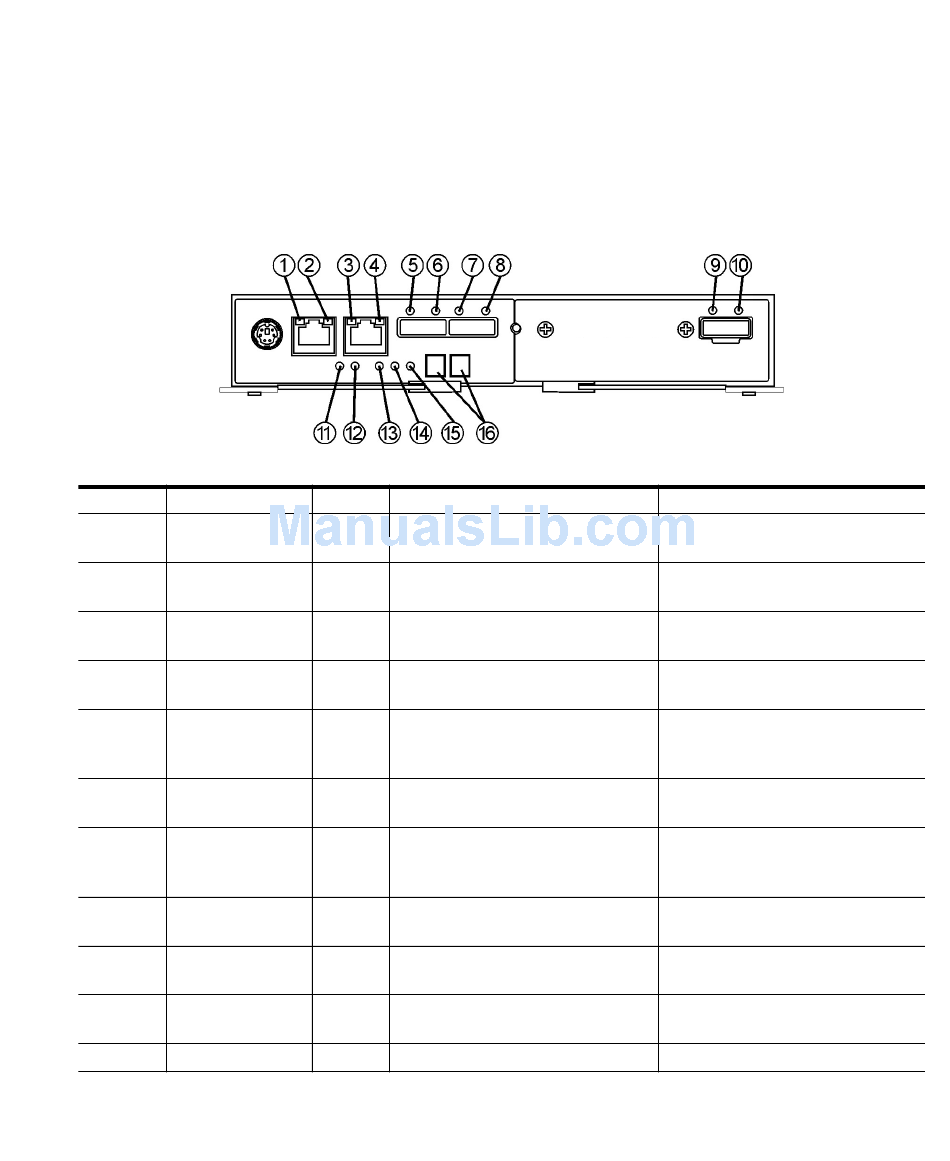

Controller LEDs on Sun Storage 2500-M2 Arrays
FIGURE A-3
Controller LED Descriptions
TABLE A-5
Location LED
1 Ethernet port 1
Link Rate
2 Ethernet port 1
Link Active
3 Ethernet port 2
Link Rate
4 Ethernet port 2
Link Active
5 Host Link 2
Service Action
Required
6 Host Link 2
Activity
7 Host Link 1
Service Action
Required
8 Host Link 2
Activity
9 Expansion Fault
10 Expansion
Activity
11 Battery Fault
Locations of the Controller LEDs on Sun Storage 2500-M2 Arrays (Rear View)
Color On
Green Port speed is 1000 Mb/sec.
Green The link is up. LED blinks with
transmit or receive activity.
Green Port speed is 1000 Mb/sec.
Green The link is up. LED blinks with
transmit or receive activity.
Amber Indicates a fault on one of the
ports.
Green All links operating.
Amber Indicates a fault on one of the
ports.
Green All links operating.
Amber Indicates a fault on one of the
links.
Green All links operating.
Amber Battery failure.
Off
Port speed is 10/100 Mb/sec.
The link is down or not active.
Port speed is 10/100 Mb/sec.
The link is down or not active.
Amber and green LEDs off
indicates cable unplugged.
Amber and green LEDs off
indicates cable unplugged.
Amber and green LEDs off
indicates cable unplugged.
Amber and green LEDs off
indicates cable unplugged.
Amber and green LEDs off
indicates cable unplugged.
Amber and green LEDs off
indicates cable unplugged.
Battery is operating normally.
Appendix A LEDs and Diagnostic Codes 51
